Home / Industrial Communication and Interfaces / Surge Protection Barriers / Devices for Signal Line Protection

Devices for Signal Line Protection Parts

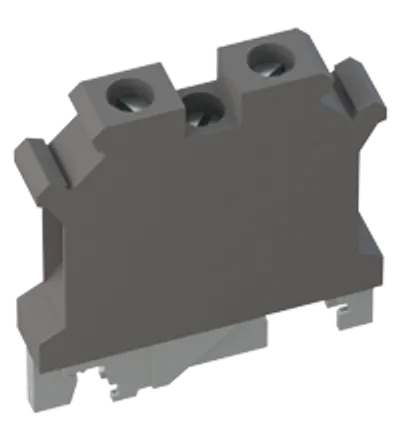

Pepperl Fuchs

USLKG6N

Terminal Block

Pepperl Fuchs

M-LB-2646

Surge Protection Barrier

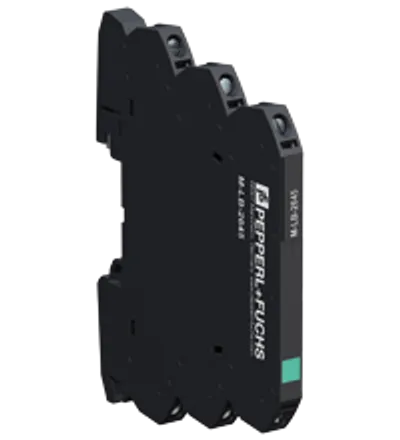

Pepperl Fuchs

M-LB-2645

Surge Protection Barrier

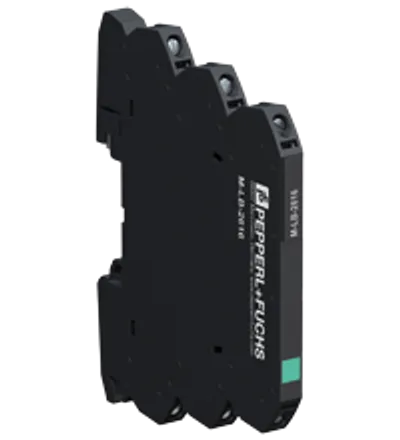

Pepperl Fuchs

M-LB-2616

Surge Protection Barrier

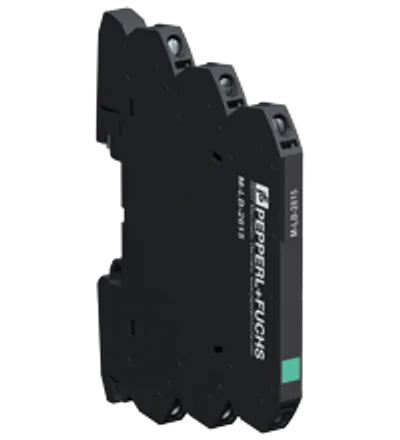

Pepperl Fuchs

M-LB-2615

Surge Protection Barrier

Pepperl Fuchs

M-LB-4282.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4252.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4222.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4254.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4224.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4272.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4244.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4214.M

Protection Module for Surge Protection Barrier

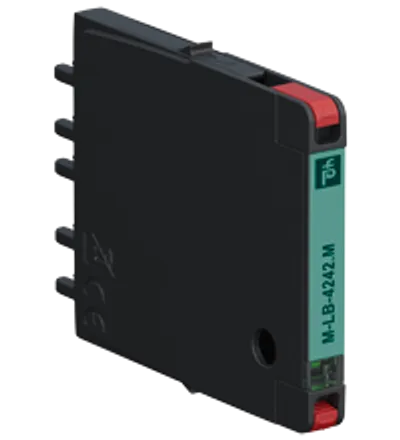

Pepperl Fuchs

M-LB-4242.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4212.M

Protection Module for Surge Protection Barrier

Pepperl Fuchs

M-LB-4282

Surge Protection Barrier

Pepperl Fuchs

M-LB-4252

Surge Protection Barrier

Pepperl Fuchs

M-LB-4222

Surge Protection Barrier

Pepperl Fuchs

M-LB-4254

Surge Protection Barrier

Pepperl Fuchs

M-LB-4224

Surge Protection Barrier

Pepperl Fuchs

M-LB-4272

Surge Protection Barrier

Pepperl Fuchs

M-LB-4244

Surge Protection Barrier

Pepperl Fuchs

M-LB-4214

Surge Protection Barrier

Pepperl Fuchs

M-LB-4212

Surge Protection Barrier

Compare Devices for Signal Line Protection

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Order code (Pepperl+Fuchs part number)	Mass	Nominal voltage	Maximum continuous operating voltage	Cut-off frequency
USLKG6N	131158	27 g	—	—	—
M-LB-2646	70189529	approx. 30 g	24 V DC UN	30 V DC Uc	—
M-LB-2645	70189528	approx. 30 g	24 V DC UN	30 V DC Uc	—
M-LB-2616	70189527	approx. 30 g	1 V DC UN	6 V DC Uc	—
M-LB-2615	70189526	approx. 30 g	1 V DC UN	6 V DC Uc	—
M-LB-4282.M	70155099	approx. 14 g	230 V UN	250 V AC and 320 V DC Uc	200 MHz , line-line fG
M-LB-4252.M	70155098	approx. 14 g	48 V UN	39.6 V AC and 56 V DC Uc	3.6 MHz , line-line fG
M-LB-4222.M	70155097	approx. 14 g	12 V UN	10.6 V AC and 15 V DC Uc	2.6 MHz , line-line fG
M-LB-4254.M	70155096	approx. 14 g	48 V UN	38.1 V AC and 54 V DC Uc	5 MHz , line-line fG
M-LB-4224.M	70155095	approx. 14 g	12 V UN	10.6 V AC and 15 V DC Uc	1.4 MHz , line-line fG
M-LB-4272.M	70155094	approx. 14 g	180 V UN	127 V AC and 180 V DC Uc	150 MHz , line-line fG
M-LB-4244.M	70155092	approx. 14 g	24 V UN	23.3 V AC and 33 V DC Uc	3.4 MHz , line-line fG
M-LB-4214.M	70155090	approx. 14 g	5 V UN	6 V AC and 8.5 V DC Uc	100 MHz , line-line fG
M-LB-4242.M	70155091	approx. 14 g	24 V UN	25.4 V AC and 36 V DC Uc	5.8 MHz , line-line fG
M-LB-4212.M	70155089	approx. 14 g	5 V UN	6 V AC and 8.5 V DC Uc	100 MHz , line-line fG
M-LB-4282	70155088	approx. 40 g	230 V UN	250 V AC and 320 V DC Uc	200 MHz , line-line fG
M-LB-4252	70155087	approx. 35 g	48 V UN	39.6 V AC and 56 V DC Uc	3.6 MHz , line-line fG
M-LB-4222	70155086	approx. 35 g	12 V UN	10.6 V AC and 15 V DC Uc	2.6 MHz , line-line fG
M-LB-4254	70155085	approx. 35 g	48 V UN	38.1 V AC and 54 V DC Uc	5 MHz , line-line fG
M-LB-4224	70155084	approx. 35 g	12 V UN	10.6 V AC and 15 V DC Uc	1.4 MHz , line-line fG
M-LB-4272	70155083	approx. 35 g	180 V UN	127 V AC and 180 V DC Uc	150 MHz , line-line fG
M-LB-4244	70155081	approx. 35 g	24 V UN	23.3 V AC and 33 V DC Uc	3.4 MHz , line-line fG
M-LB-4214	70155079	approx. 35 g	5 V UN	6 V AC and 8.5 V DC Uc	100 MHz , line-line fG
M-LB-4212	70155078	approx. 35 g	5 V UN	6 V AC and 8.5 V DC Uc	100 MHz , line-line fG

Common to all listed parts

Lifecycle

Active (current Pepperl+Fuchs product)
