Switch Disconnectors and Safety Switches (Ex e) Parts

Pepperl Fuchs

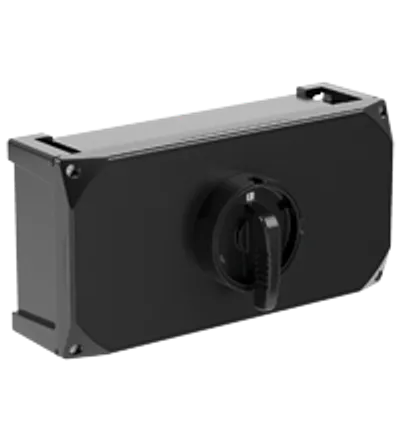

DIS.P.040.3PN.GR

Switch Disconnector Ex e 40 A 4 Pole, GRP Enclosure

Pepperl Fuchs

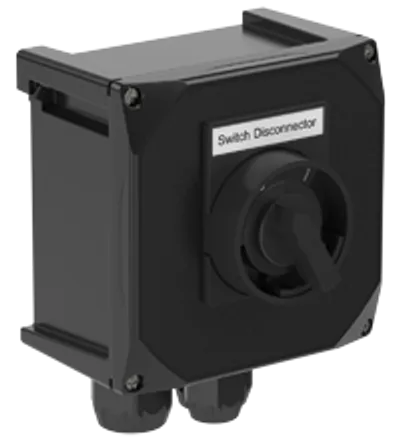

DIS.P.016.3PN.GR

Switch Disconnector Ex e 16 A 3 Pole, GRP Enclosure

Pepperl Fuchs

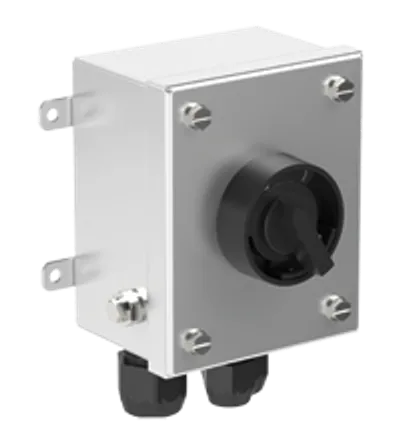

DIS.S.016.3P.1NO.SR

Switch Disconnector Ex e 16 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.P.016.3P.1NO.GR

Switch Disconnector Ex e 16 A 3 Pole, GRP Enclosure

Pepperl Fuchs

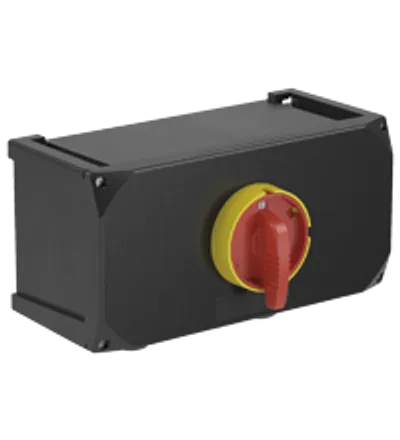

SAF.P.040.3P.1NO.GR

Safety Switch Ex e 40 A 3 Pole, GRP Enclosure

Pepperl Fuchs

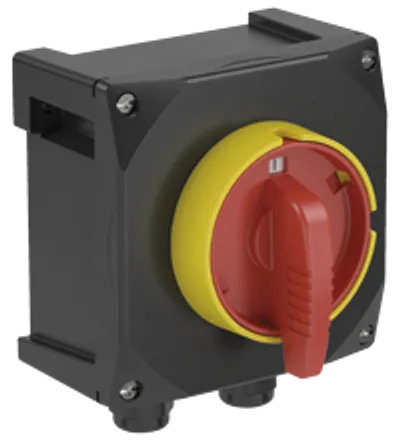

SAF.P.025.3P.1NO.GR

Safety Switch Ex e 25 A 3 Pole, GRP Enclosure

Pepperl Fuchs

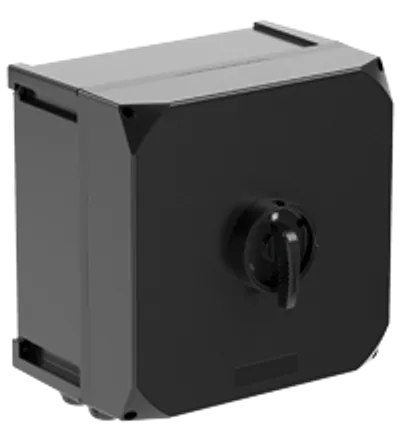

DIS.P.040.6P.1NO.1NC.GR

Switch Disconnector Ex e 40 A 6 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.040.3P.1NO.GR

Switch Disconnector Ex e 40 A 3 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.040.3P.GR

Switch Disconnector Ex e 40 A 3 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.025.6P.1NO.1NC.GR

Switch Disconnector Ex e 25 A 6 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.025.3PN.GR

Switch Disconnector Ex e 25 A 4 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.025.3P.1NO.GR

Switch Disconnector Ex e 25 A 3 Pole, GRP Enclosure

Pepperl Fuchs

DIS.P.025.3P.GR

Switch Disconnector Ex e 25 A 3 Pole, GRP Enclosure

Pepperl Fuchs

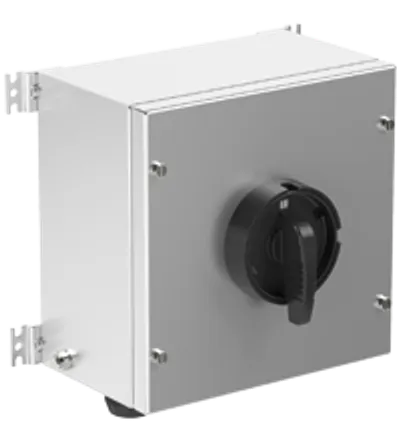

DIS.S.040.6P.1NO.1NC.SR

Switch Disconnector Ex e 40 A 6 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.040.3PN.SR

Switch Disconnector Ex e 40 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.040.3P.1NO.SR

Switch Disconnector Ex e 40 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.040.3P.SR

Switch Disconnector Ex e 40 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.025.6P.1NO.1NC.SR

Switch Disconnector Ex e 25 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

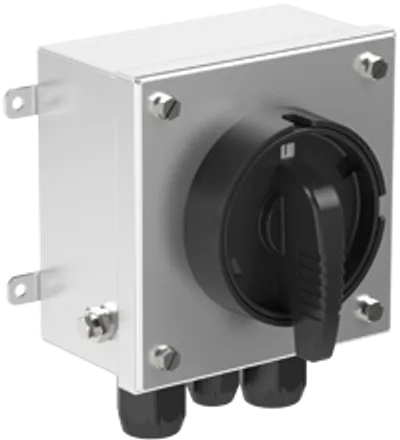

DIS.S.025.3PN.SR

Switch Disconnector Ex e 25 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.025.3P.1NO.SR

Switch Disconnector Ex e 25 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

DIS.S.025.3P.SR

Switch Disconnector Ex e 25 A 3 Pole, Stainless Steel Enclosure

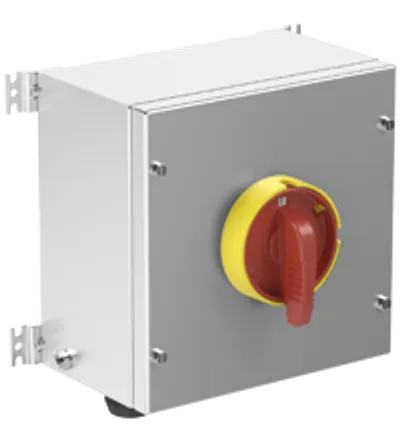

Pepperl Fuchs

SAF.S.040.3P.1NO.SR

Safety Switch Ex e 40 A 3 Pole, Stainless Steel Enclosure

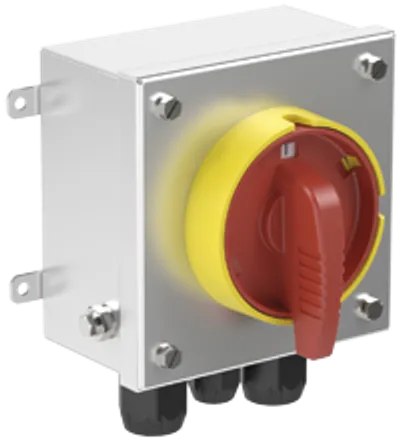

Pepperl Fuchs

SAF.S.025.3P.1NO.SR

Safety Switch Ex e 25 A 3 Pole, Stainless Steel Enclosure

Pepperl Fuchs

SAF.*

Safety Switches Ex e

Compare Switch Disconnectors and Safety Switches (Ex e)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Order code (Pepperl+Fuchs part number)	Operating current	Mass	Dimensions: External dimension with operating element (C1)	Dimensions: Mounting holes distance (G)
DIS.P.040.3PN.GR	70101164	40 A max.	4.85 kg	216.5 mm	156 mm
DIS.P.016.3PN.GR	70127854	16 A max.	2.2 kg	136 mm	96 mm
DIS.S.016.3P.1NO.SR	70142243	16 A max.	2.45 kg	143 mm	81 mm
DIS.P.016.3P.1NO.GR	70143983	16 A max.	2.2 kg	136 mm	96 mm
SAF.P.040.3P.1NO.GR	70101167	40 A max.	4.85 kg	216.5 mm	156 mm
SAF.P.025.3P.1NO.GR	70101166	25 A max.	2.2 kg	154 mm	126 mm
DIS.P.040.6P.1NO.1NC.GR	70101165	40 A max.	9 kg	291.5 mm	306 mm
DIS.P.040.3P.1NO.GR	70101163	40 A max.	4.85 kg	216.5 mm	156 mm
DIS.P.040.3P.GR	70101161	40 A max.	4.8 kg	216.5 mm	156 mm
DIS.P.025.6P.1NO.1NC.GR	70101160	25 A max.	4.3 kg	216.5 mm	156 mm
DIS.P.025.3PN.GR	70101159	25 A max.	2.2 kg	154 mm	126 mm
DIS.P.025.3P.1NO.GR	70101158	25 A max.	2.2 kg	154 mm	126 mm
DIS.P.025.3P.GR	70101157	25 A max.	2.1 kg	154 mm	126 mm
DIS.S.040.6P.1NO.1NC.SR	70143992	40 A max.	approx. 7 kg	270 mm	225 mm
DIS.S.040.3PN.SR	70143991	40 A max.	approx. 6.3 kg	210 mm	225 mm
DIS.S.040.3P.1NO.SR	70143990	40 A max.	approx. 6.3 kg	210 mm	225 mm
DIS.S.040.3P.SR	70143989	40 A max.	approx. 6.3 kg	210 mm	225 mm
DIS.S.025.6P.1NO.1NC.SR	70143987	25 A max.	approx. 6.5 kg	210 mm	225 mm
DIS.S.025.3PN.SR	70143986	25 A max.	approx. 2.5 kg	144 mm	95 mm
DIS.S.025.3P.1NO.SR	70143985	25 A max.	approx. 2.5 kg	144 mm	95 mm
DIS.S.025.3P.SR	70143984	25 A max.	approx. 2.5 kg	144 mm	95 mm
SAF.S.040.3P.1NO.SR	70143993	40 A max.	approx. 6.3 kg	210 mm	295 mm
SAF.S.025.3P.1NO.SR	70143988	25 A max.	approx. 2.5 kg	144 mm	95 mm
SAF.*	T187183	25 A max. or 40 A max.	see data table	—	—

Common to all listed parts

Rated impulse withstand voltage	6 kV
Rated frequency	50/60 Hz
Operator action	engage - engage
Labeling	0 - I
Lifecycle	Active (current Pepperl+Fuchs product)
Enclosure cover	fully detachable
Tightening torque: Nut torque at enclosure (SW1)	see datasheets of cable glands
Ambient temperature	-40 ... 55 °C (-40 ... 131 °F) @ T4
