Compare Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Nominal resistance | Series resistance | Working voltage: Supply loop | Working voltage: Measurement loop |
|---|
| Z042 | 240531 | 206.5 Ω | max. 209.5 Ω | max. 5 V | max. 3 V at 10 µA (1 V at 1 µA) |
| Z041 | 240530 | 2009 Ω | max. 2030.5 Ω | max. 7.5 V | max. 7 V at 10 µA (6 V at 1 µA) |
| Z040 | 240527 | 48.5 Ω | max. 50 Ω | max. 5 V | max. 3 V at 10 µA (1 V at 1 µA) |
| Z787.H | 071940 | 240 Ω | max. 250 Ω | max. 27 V | max. 26.5 V at 10 µA |

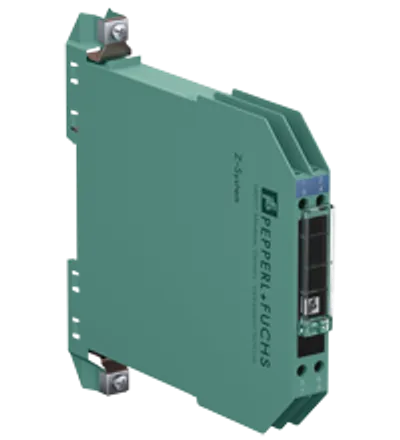

| Z857 | 071890 | 10 Ω | max. 15.5 Ω | max. 6.4 V | max. 6 V at 10 µA |
| Z757 | 071889 | 10 Ω | max. 15.5 Ω | max. 6.4 V | max. 6 V at 10 µA |
| Z828.H | 071939 | 240 Ω | max. 250 Ω | max. 27 V | max. 26.5 V at 10 µA |
| Z728.H | 071938 | 240 Ω | max. 250 Ω | max. 26.9 V | max. 26.5 V at 10 µA |
| Z813 | 071897 | 22 Ω | max. 29 Ω | max. 14.2 V | max. 13.7 V at 10 µA |
| Z713 | 071896 | 22 Ω | max. 29 Ω | max. 14.1 V | max. 13.7 V at 10 µA |
| Z787 | 071816 | 300 Ω | terminals 1, 8: max. 327 Ω | max. 27 V | max. 26.5 V at 10 µA |

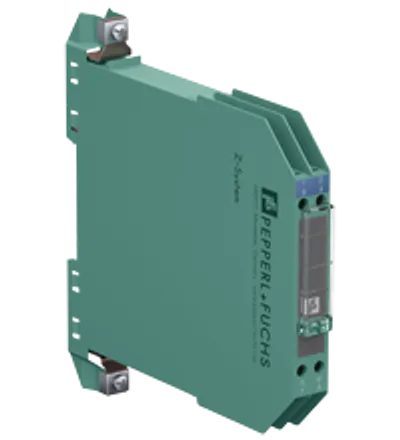

| Z978 | 071862 | 600 Ω | max. 646 Ω | max. 26.3 V | max. 26 V at 10 µA |
| Z972 | 071861 | 300 Ω | max. 327 Ω | max. 19.6 V | max. 19 V at 10 µA |
| Z967 | 071860 | 120 Ω | max. 136 Ω | max. 15.6 V | max. 15 V at 10 µA |
| Z966 | 071801 | 150 Ω | max. 166 Ω | max. 11.1 V | max. 10 V at 10 µA |
| Z965 | 071859 | 100 Ω | max. 115 Ω | max. 13.6 V | max. 13 V at 10 µA |
| Z964 | 071798 | 1000 Ω | max. 1033 Ω | max. 11.7 V | max. 10 V at 10 µA |
| Z961 | 071795 | 100 Ω | max. 106 Ω | max. 7.7 V | max. 6.5 V at 10 µA |
| Z960 | 071858 | 50 Ω | max. 64 Ω | max. 8.8 V | max. 6.5 V at 10 µA |
| Z955 | 071794 | 10 Ω | max. 18.18 Ω | max. 4.3 V | max. 0.9 V at 1 µA |
| Z954 | 071863 | 12 Ω | max. 27.27 Ω | max. 3.7 V | max. 0.6 V at 1 µA |
| Z928 | 071857 | 300 Ω | max. 327 Ω | max. 26.3 V | max. 26 V at 10 µA |
| Z915.1K | 071783 | 1 kΩ | max. 1025 Ω | max. 13.6 V | max. 13 V at 10 µA |
| Z915 | 071778 | 100 Ω | max. 107 Ω | max. 13.6 V | max. 13 V at 10 µA |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | max. 75 % , without condensation |
| Mass | approx. 150 g |
| Dimensions | 12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D) |
| Construction type | modular terminal housing , see system description |
