SENTRON Arc fault detection device Parts

Siemens

5SV6016-6MC25

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6MC20

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6MC16

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6MC13

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6KK20

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 20A Compact (1MW)

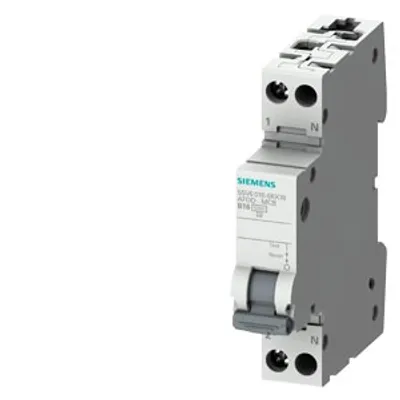

Siemens

5SV6016-6KK16

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 16A Compact (1MW)

Siemens

5SV6016-6KK10

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 10A Compact (1MW)

Siemens

5SV6016-6MC32

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6KP16

AFDD-MCB-combination 230V, 6kA, 1+N, B

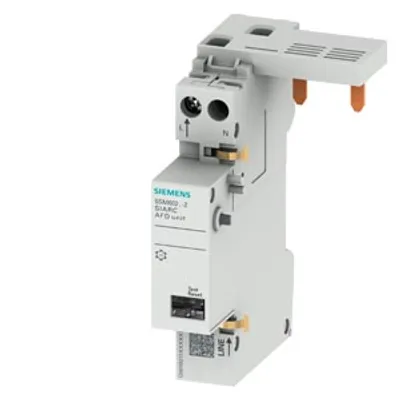

Siemens

5SM6024-2

Arc fault detection device block AFDD

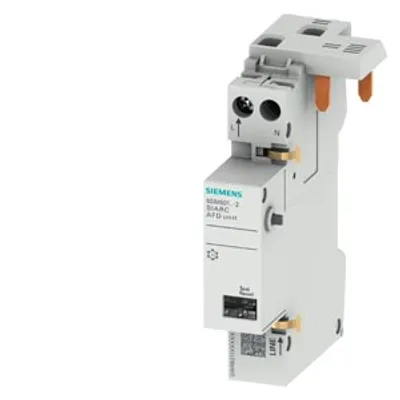

Siemens

5SM6011-2

Arc fault detection device block AFDD

Siemens

5SV6016-6MC06

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Siemens

5SV6016-6KP40

AFDD-MCB-combination 230V, 6kA, 1+N, B

Siemens

5SV6016-6KP32

AFDD-MCB-combination 230V, 6kA, 1+N, B

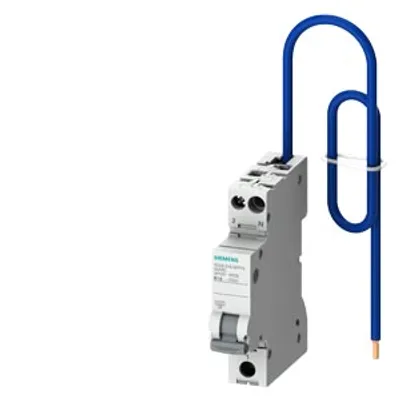

Siemens

5SV6016-6KP13

AFDD-MCB-combination 230V, 6kA, 1+N, B

Siemens

5SV6016-6KK13

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 13A Compact (1MW)

Siemens

5SV6016-6KP10

AFDD-MCB-combination 230V, 6kA, 1+N, B

Siemens

5SV6016-6KP06

AFDD-MCB-combination 230V, 6kA, 1+N, B

Siemens

5SV6016-6KK40

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 40A Compact (1MW)

Siemens

5SV6016-6KK32

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 32A Compact (1MW)

Siemens

5SV6016-6KK06

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 6A Compact (1MW)

Siemens

5SV6016-6GV25

5SV6 AFDD/MCB 6kA B25 1+N 1MW Big Pack 12 pcs

Siemens

5SV6016-7MC10

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

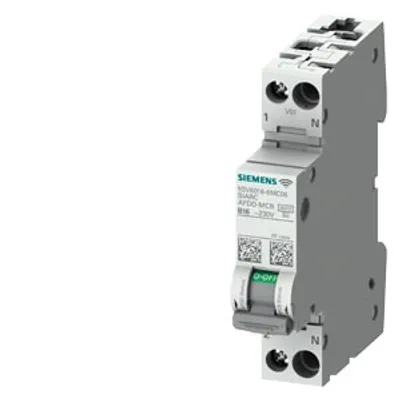

Siemens

5SV6016-7MC06

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA

Compare SENTRON Arc fault detection device

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	design of the product	power loss [W] for rated value of the current at AC in hot operating state per pole	width	Net Weight
5SV6016-6MC25	AFDD/MCB	Compact unit	3.4 W	18 mm	143 g
5SV6016-6MC20	AFDD/MCB	Compact unit	3.1 W	18 mm	143 g
5SV6016-6MC16	AFDD/MCB	Compact unit	2.4 W	18 mm	141 g
5SV6016-6MC13	AFDD/MCB	Compact unit	1.7 W	18 mm	141 g
5SV6016-6KK20	AFDD/MCB	Compact unit	2.65 W	18 mm	136 g
5SV6016-6KK16	AFDD/MCB	Compact unit	1.81 W	18 mm	132 g
5SV6016-6KK10	AFDD/MCB	Compact unit	1.66 W	18 mm	130 g
5SV6016-6MC32	AFDD/MCB	Compact unit	4.6 W	18 mm	145 g
5SV6016-6KP16	AFDD/MCB	Compact unit	1.35 W	18 mm	193 g
5SM6024-2	Arc fault detection unit	for MCB 5SY, 5SL4 and RCBO 5SU1	—	54 mm	103 g
5SM6011-2	Arc fault detection unit	for MCB 5SY60	—	36 mm	98 g
5SV6016-6MC06	AFDD/MCB	Compact unit	1.1 W	18 mm	139 g
5SV6016-6KP40	AFDD/MCB	Compact unit	—	18 mm	210 g
5SV6016-6KP32	AFDD/MCB	Compact unit	2 W	18 mm	210 g
5SV6016-6KP13	AFDD/MCB	Compact unit	0.85 W	18 mm	192 g
5SV6016-6KK13	AFDD/MCB	Compact unit	1.47 W	18 mm	135 g
5SV6016-6KP10	AFDD/MCB	Compact unit	0.95 W	18 mm	191 g
5SV6016-6KP06	AFDD/MCB	Compact unit	0.45 W	18 mm	191 g
5SV6016-6KK40	AFDD/MCB	Compact unit	2.85 W	18 mm	141 g
5SV6016-6KK32	AFDD/MCB	Compact unit	2.85 W	18 mm	140 g
5SV6016-6KK06	AFDD/MCB	Compact unit	0.87 W	18 mm	134 g
5SV6016-6GV25	AFDD/MCB	Compact unit	1.45 W	18 mm	124 g
5SV6016-7MC10	AFDD/MCB	Compact unit	1.3 W	18 mm	139 g
5SV6016-7MC06	AFDD/MCB	Compact unit	0.9 W	18 mm	138 g

Common to all listed parts

number of poles	2
design of pole	1P+N
size of installation devices according to DIN 43880	1
touch protection against electrical shock according to EN 50274	finger and back-of-hand safe
mechanical service life (operating cycles) typical	10 000
switching function short-term delayed	No
overvoltage category	3
degree of pollution	2
