Home / Energy / Low-voltage - Power distribution / Low-voltage components / Protection Devices / Residual Current Protective Devices / SENTRON Residual Current Protective Devices / Basic Devices / RCCBs

RCCBs Parts

Showing 1–24 of 110 parts

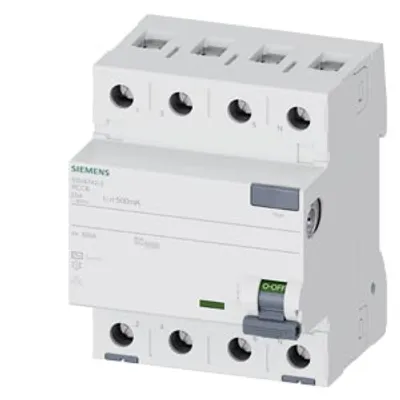

Siemens 5SV4742-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 25 A, 500 mA
Siemens
5SV4742-0

Residual current operated circuit breaker, 4-pole, type AC

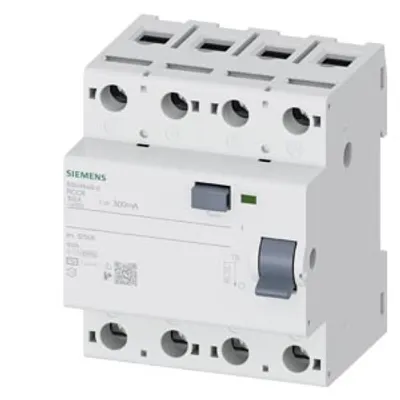

Siemens 5SV4648-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 100 A, 300 mA, Un AC: 400 V
Siemens
5SV4648-0

Residual current operated circuit breaker, 4-pole, type AC

Siemens 5SV4642-0KL – Residual current operated circuit breaker, 4-pole, type AC, In: 25 A, 300 mA, Un AC: 400 V
Siemens
5SV4642-0KL

Residual current operated circuit breaker, 4-pole, type AC

Siemens 5SV4642-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 25 A, 300 mA
Siemens
5SV4642-0

Residual current operated circuit breaker, 4-pole, type AC

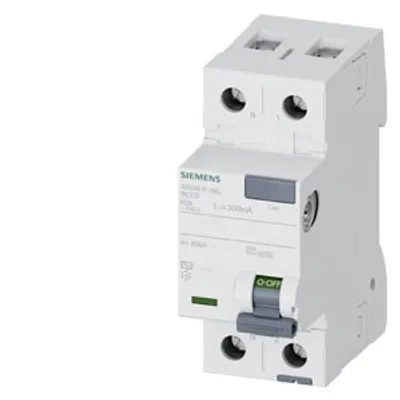

Siemens 5SV4617-0KL – Residual current operated circuit breaker, 2-pole, type AC, In: 80 A, 300 mA, Un AC: 230 V
Siemens
5SV4617-0KL

Residual current operated circuit breaker, 2-pole, type AC

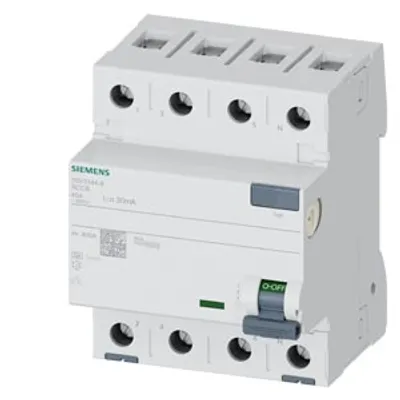

Siemens 5SV3344-6 – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3344-6LA – Residual current operated circuit breaker, 4-pole, Type A, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6LA

Residual current operated circuit breaker, 4-pole, Type A

Siemens 5SV3344-6KL – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V, N left
Siemens
5SV3344-6KL

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3344-6KK60 – Residual current operated circuit breaker, 4-pole, Type A, In: 40A, 30mA, 6mA DC, Un AC: 400V
Siemens
5SV3344-6KK60

Residual current operated circuit breaker, 4-pole, Type A

Siemens 5SV3344-6KK12 – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6KK12

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3744-4 – Residual current operated circuit breaker, 4-pole, type B, short-time-delayed, In: 40 A, 500 mA
Siemens
5SV3744-4

Residual current operated circuit breaker, 4-pole, type B

Siemens 5SV3742-6 – Residual current operated circuit breaker, 4-pole, type A, In: 25 A, 500 mA, Un AC: 400 V
Siemens
5SV3742-6

Residual current operated circuit breaker, 4-pole, type A

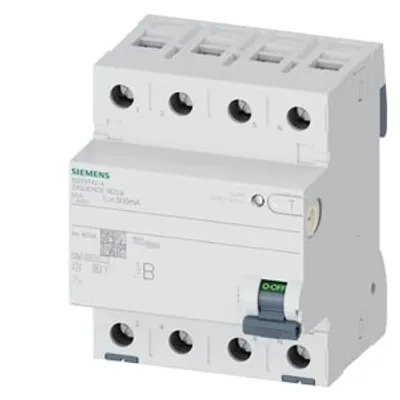

Siemens 5SV3742-4 – Residual current operated circuit breaker, 4-pole, type B, short-time-delayed, In: 25 A, 500 mA
Siemens
5SV3742-4

Residual current operated circuit breaker, 4-pole, type B

Siemens 5SV4746-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 63 A, 500 mA
Siemens
5SV4746-0

Residual current operated circuit breaker, 4-pole, type AC

Siemens 5SV4646-0 – Residual current operated circuit breaker, 4-pole, type AC, In: 63 A, 300 mA
Siemens
5SV4646-0

Residual current operated circuit breaker, 4-pole, type AC

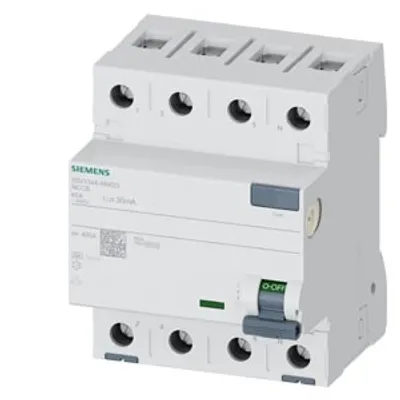

Siemens 5SV3344-6KK03 – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V, 50...400 Hz
Siemens
5SV3344-6KK03

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3344-6KK01 – Residual current operated circuit breaker, 4-pole, type A, super resistant, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6KK01

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3344-6GV02 – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6GV02

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3344-6GV01 – Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V
Siemens
5SV3344-6GV01

Residual current operated circuit breaker, 4-pole, type A

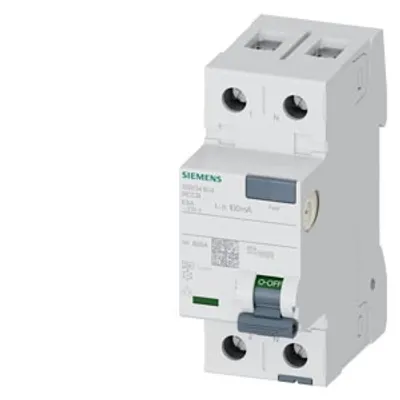

Siemens 5SV3416-6 – Residual current operated circuit breaker, 2-pole, type A, In: 63 A, 100 mA, Un AC: 230 V
Siemens
5SV3416-6

Residual current operated circuit breaker, 2-pole, type A

Siemens 5SV3347-6KK12 – Residual current operated circuit breaker, 4-pole, type A, In: 80 A, 30 mA, Un AC: 400 V
Siemens
5SV3347-6KK12

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3346-6LA – Residual current operated circuit breaker, 4-pole, Type A, In: 63 A, 30 mA, Un AC: 400 V
Siemens
5SV3346-6LA

Residual current operated circuit breaker, 4-pole, Type A

Siemens 5SV3346-6KL – Residual current operated circuit breaker, 4-pole, type A, In: 63 A, 30 mA, Un AC: 400 V, N left
Siemens
5SV3346-6KL

Residual current operated circuit breaker, 4-pole, type A

Siemens 5SV3346-6KK60 – Residual current operated circuit breaker, 4-pole, Type A, In: 63A, 30mA, 6mA DC, Un AC: 400V
Siemens
5SV3346-6KK60

Residual current operated circuit breaker, 4-pole, Type A

Compare RCCBs

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNtripping fault current rated valuelet-through current permissiblepower loss [W] — for rated value of the current at AC in hot operating state per polepower loss [W] — maximumNet Weight
5SV4742-0500 mA5 200 A0.8 W2.4 W335 g
5SV4648-0300 mA6 400 A7 W20 W370 g
5SV4642-0KL300 mA5 200 A0.7 W2.1 W303 g
5SV4642-0300 mA5 200 A0.7 W2.1 W302 g
5SV4617-0KL300 mA7 100 A3.9 W7.8 W205 g
5SV3344-630 mA5 200 A3.9 W11.7 W316 g
5SV3344-6LA30 mA5 200 A1.8 W5.4 W374 g
5SV3344-6KL30 mA5 200 A3.9 W11.7 W317 g
5SV3344-6KK6030 mA7 000 A2.5 W7.5 W449 g
5SV3344-6KK1230 mA5 200 A1.9 W5.7 W372 g
5SV3744-4500 mA6 200 A2.5 W7.5 W454 g
5SV3742-6500 mA5 200 A0.8 W2.4 W336 g
5SV3742-4500 mA6 200 A1.2 W3.6 W453 g
5SV4746-0500 mA7 100 A3.9 W11.7 W335 g
5SV4646-0300 mA7 100 A3.9 W11.7 W332 g
5SV3344-6KK0330 mA5 200 A3.9 W11.7 W365 g
5SV3344-6KK0130 mA5 200 A1.8 W5.4 W377 g
5SV3344-6GV0230 mA5 200 A3.9 W11.7 W332 g
5SV3344-6GV0130 mA5 200 A3.9 W11.7 W333 g
5SV3416-6100 mA7 100 A2.7 W5.4 W198 g
5SV3347-6KK1230 mA7 100 A4.2 W12.6 W373 g
5SV3346-6LA30 mA7 100 A3.9 W11.7 W370 g
5SV3346-6KL30 mA7 100 A3.9 W11.7 W373 g
5SV3346-6KK6030 mA7 000 A5 W15 W449 g

Common to all listed parts

product designationResidual current operated circuit breaker
size of installation devices according to DIN 438801
short-circuit current rating10 kA
degree of pollution2
insulation voltage (Ui) rated value2 000 V
protection class IPIP20, if the distribution board is installed, with connected conductors
grid spacing60 mm
RAL color number7 035
