Workpiece Positioners Parts
Compare Workpiece Positioners
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

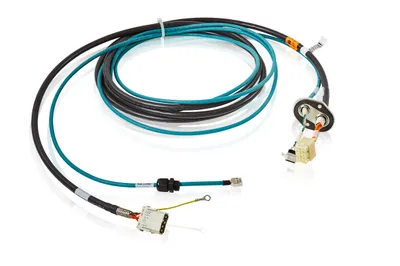

| 3HAC035219-004 | Cable MTD 3,7m | 1.06 kg kg | 1.06 kg kg | 600 mm mm | Cable MTD 3,7m |

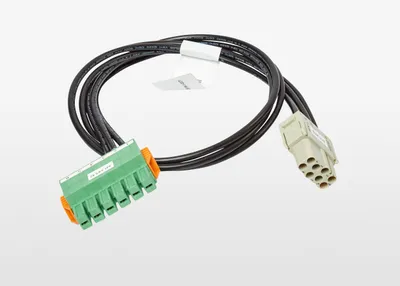

| 3HAC035806-001 | Harness Drive unit IRBP | 0.14 kg kg | 0.14 kg kg | 740 mm mm | Harness Drive unit IRBP |

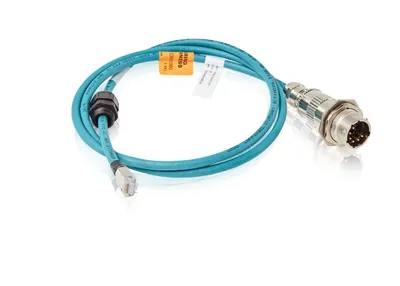

| 3HAC035397-001 | Cable SMB.Int. IRBP | 0.18 kg kg | 0.18 kg kg | 1300 mm mm | Cable SMB.Int. IRBP |

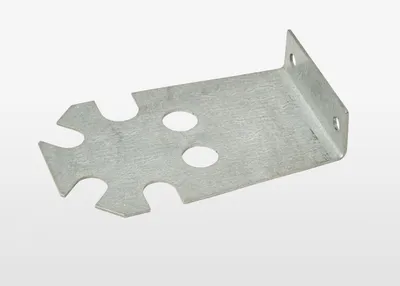

| 3HAC036352-001 | Cable bracket MTD 500/750 | 0.205 kg kg | 0.205 kg kg | 155 mm mm | Cable bracket MTD 500/750 |

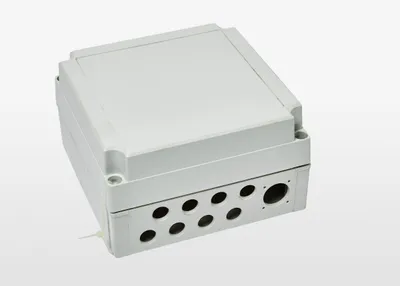

| 3HEA800887-001 | Mounting box | 0.5 kg kg | 0.5 kg kg | 170 mm mm | Mounting box |

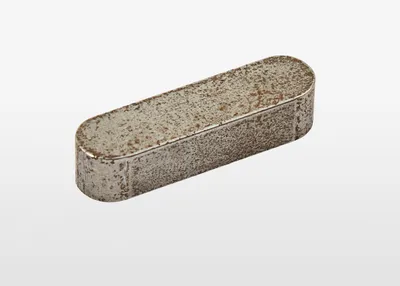

| 3HAC038246-001 | Flat key 8x7x30 | 0.02 kg kg | 0.02 kg kg | 30 mm mm | Flat key 8x7x30 |

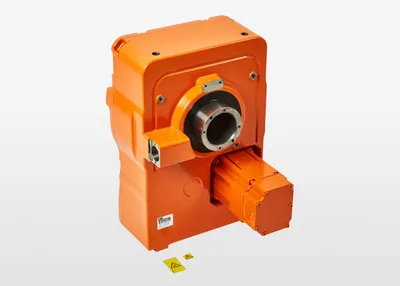

| 3HAC076880-005 | Gearbox incl. motor, MTD 750 | 155 kg kg | 155 kg kg | — | Gearbox incl. motor, MTD 750 |
| 0503889001 | Bar MTC 750 | 0.263 kg kg | 0.263 kg kg | 79 mm mm | Bar MTC 750 |

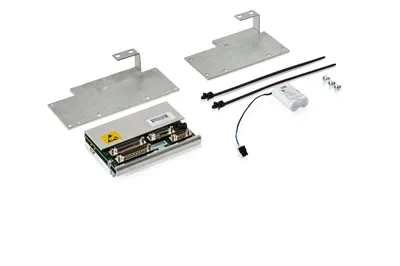

| 3HAC046686-003 | SMB Replacement Set | 0.69 kg kg | 0.69 kg kg | — | SMB Replacement Set |

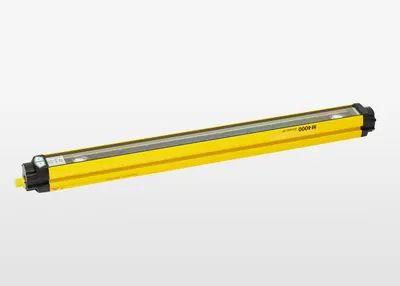

| 3HAC030116-001 | Sender/Receiver Lightbeam | 1.834 kg kg | 1.834 kg kg | 700 mm mm | Sender/Receiver Lightbeam |

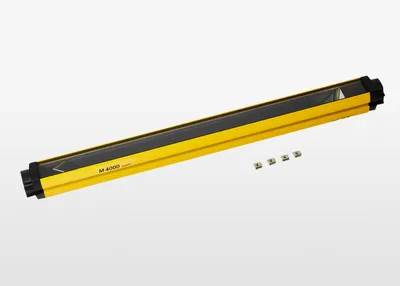

| 3HAC030117-001 | Mirror, Light beam | 1.54 kg kg | 1.54 kg kg | 660 mm mm | Mirror, Light beam |

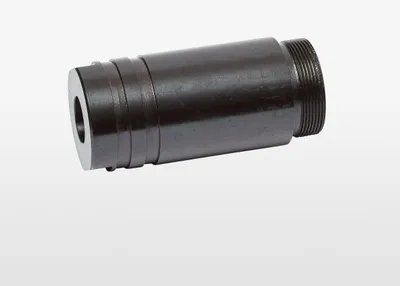

| 3HAC037004-001 | Spring housing | 0.64 kg kg | 0.64 kg kg | 110 mm mm | Spring housing |

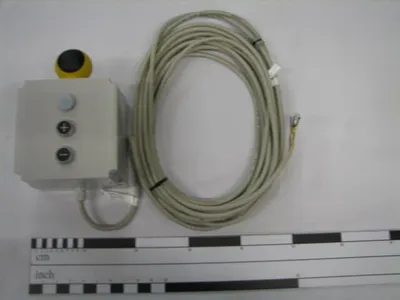

| 3HAC028129-003 | Control Panel Manual Jog | 3.4 kg kg | 3.4 kg kg | — | Control Panel Manual Jog |

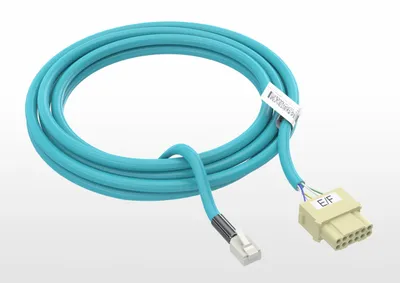

| 3HAC056737-001 | Resolver cable M2001 | 0.2 kg kg | 0.2 kg kg | — | Resolver cable M2001 |

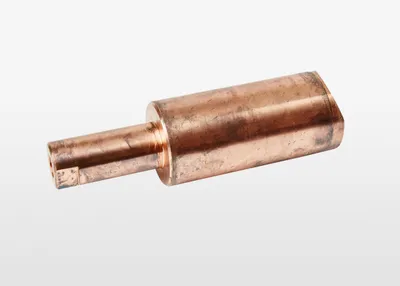

| 3HAC037005-001 | Contact bar | 0.9 kg kg | 0.9 kg kg | 130 mm mm | Contact bar |

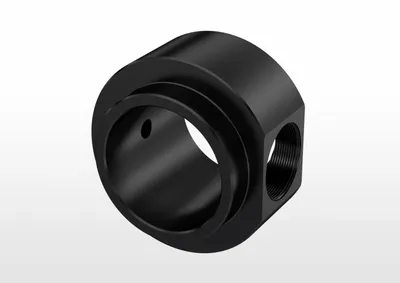

| 3HAC037003-001 | Bearing housing | 3.036 kg kg | 3.036 kg kg | — | Bearing housing |

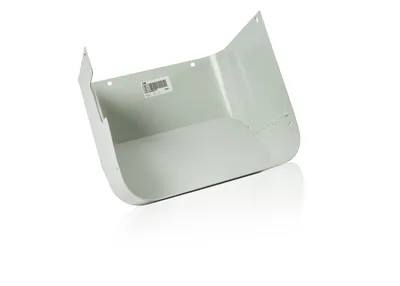

| 3HAC050288-001 | Cover, MTD 500/750 | 2.52 kg kg | 2.52 kg kg | 295 mm mm | Cover, MTD 500/750 |

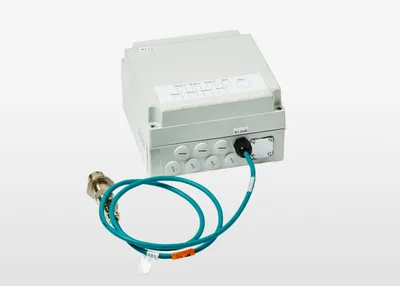

| 3HAC046493-003 | SMB box IRBP A/B/C/D/K/R A | 1.28 kg kg | 1.28 kg kg | 1400 mm mm | SMB box IRBP A/B/C/D/K/R A |

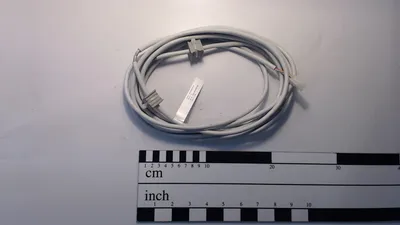

| 3HAC029925-001 | Cable Manual Jog K/R,DC | 0.32 kg kg | 0.32 kg kg | — | Cable Manual Jog K/R,DC |

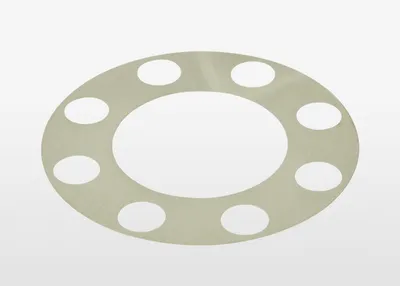

| 3HAC035527-001 | Friction shim | 0.002 kg kg | 0.002 kg kg | 80 mm mm | Friction shim |

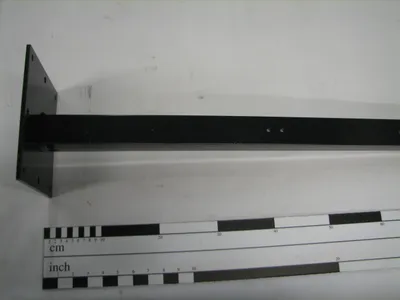

| 3HAC030120-001 | Post light beam | 7.51 kg kg | 7.51 kg kg | — | Post light beam |

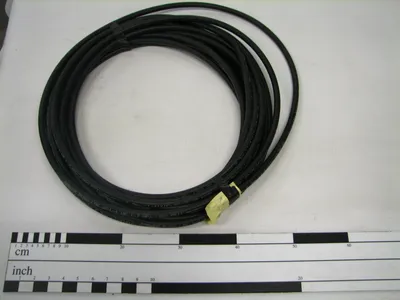

| 0504478001 | Hose 1/4 | 1.91 kg kg | 1.91 kg kg | — | Hose 1/4 |

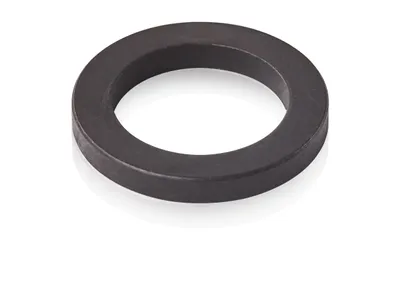

| 3HAC035525-001 | Washer | 0.013 kg kg | 0.013 kg kg | — | Washer |

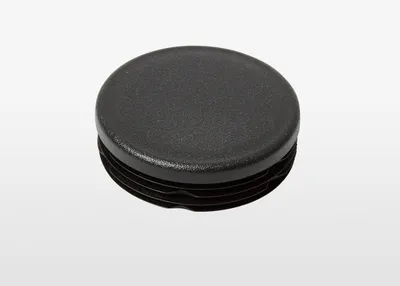

| 3HAC035520-001 | Plug | 0.019 kg kg | 0.019 kg kg | 65 mm mm | Plug |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
