ABB
E3HAC11865-1Troubleshooting Parts
Compare Troubleshooting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|
| E3HAC11865-1 | Motor incl timming belt pulley | 2.76 kg kg | 2.76 kg kg | 314 mm mm | Motor incl timming belt pulley |

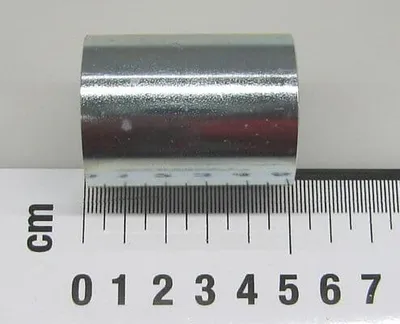

| 3HAB3264-1 | Spacer | 0.2 kg kg | 0.2 kg kg | — | Spacer |
| 3HAC030656-001 | Cover A - IRB6620 A | 0.72 kg kg | 0.72 kg kg | 650 mm mm | Cover A - IRB6620 A |
| IRB 1100 | IRB 1100 | 21 kg kg | 21 kg kg | 486 mm mm | - |
| 3HAC056902-001 | Stainless Groove Ball Bearing, FDA-appd. | 0.023 kg kg | 0.023 kg kg | 37 mm mm | Stainless Groove Ball Bearing, FDA- |

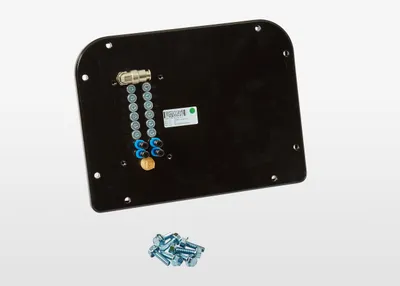

| 3HNA013224-001 | FUNCTION VALVE KIT | 2.2 kg kg | 2.2 kg kg | 250 mm mm | FUNCTION VALVE KIT |
| 3HAC7877-2 | Sealing ring | 0.016 kg kg | 0.016 kg kg | 55 mm mm | Sealing ring |
| 3HNA000651-001 | COLOUR CHANGER | 2.16 kg kg | 2.16 kg kg | 102 mm mm | COLOUR CHANGER |
| 3HAC8869-1 | Customer conn. axis 4 | 1.08 kg kg | 1.08 kg kg | 1200 mm mm | Customer conn. axis 4 |

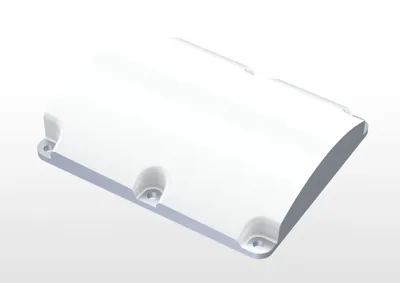

| 3HAC081488-001 | SMB cover, CR | 0.2 kg kg | 0.3 kg kg | 114.5 mm mm | SMB cover, CR |

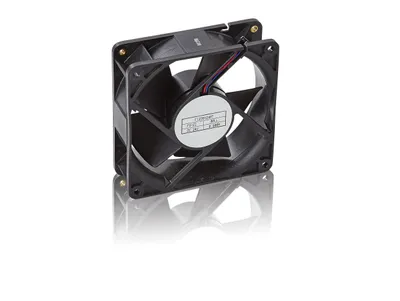

| 3HAB7311-1 | Fan | 0.26 kg kg | 0.26 kg kg | 118 mm mm | Fan |

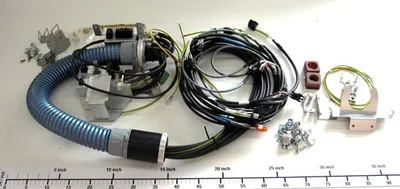

| 3HNA008930-001 | CABLE KIT A1-A1n | 0 kg kg | 0 kg kg | — | CABLE KIT A1-A1n |

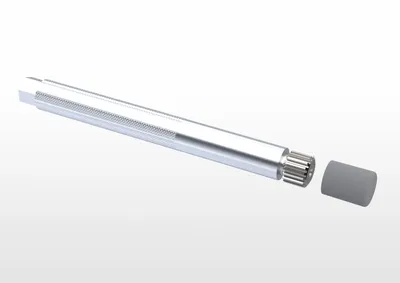

| 3HAC067545-001 | Pinion tool | 0.7 kg kg | 0.7 kg kg | 355 mm mm | Pinion tool |
| 3HAC034080-001 | Connectionplate base | 5.578 kg kg | 5.578 kg kg | — | Connectionplate base |

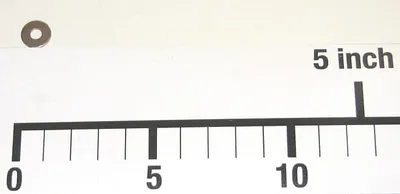

| 3HAC5022-1 | Plain Washer, large | 0.002 kg kg | 0.002 kg kg | — | Plain Washer, large |
| 3HNA000652-001 | COLOUR CHANGER | 2.7 kg kg | 2.7 kg kg | — | COLOUR CHANGER |

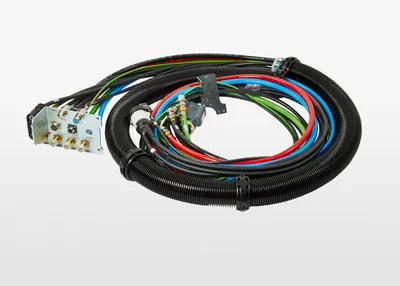

| 3HAC047699-002 | Harness Lower arm Paramulti Servogun | 27 kg kg | 27 kg kg | 6500 mm mm | Harness Lower arm Paramulti Servogu |
| 3HAC032296-001 | Cable Harness CP/CS | 0.02 kg kg | 0.02 kg kg | 218 mm mm | Cable Harness CP/CS |

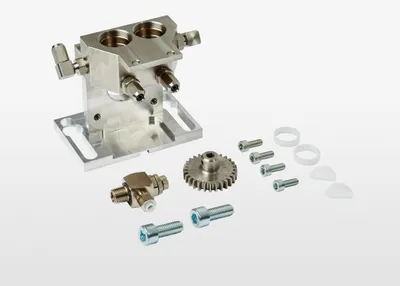

| 3HNA002852-001 | JP PUMP ASSY | 1.38 kg kg | 1.38 kg kg | — | JP PUMP ASSY |

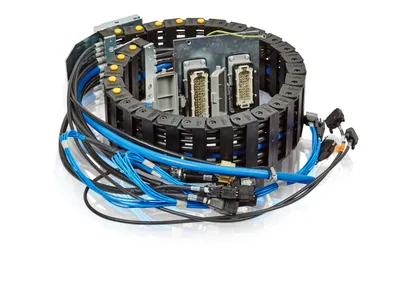

| 3HAB8063-1 | Cabling lower, CP/CS/SW | 8.95 kg kg | 8.95 kg kg | 2200 mm mm | Cabling lower, CP/CS/SW |
| 3HAB9343-1 | Cover | 0.23 kg kg | 0.23 kg kg | — | Cover |

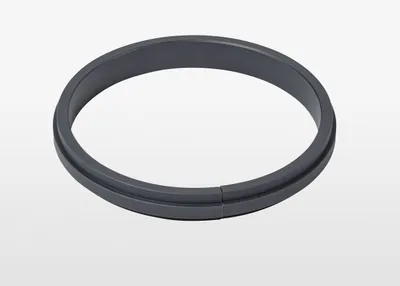

| 3HAB9041-1 | Cylinder guide | 0.076 kg kg | 0.076 kg kg | 160 mm mm | Cylinder guide |

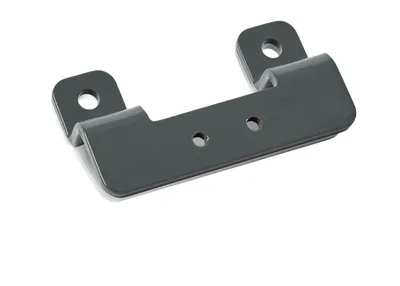

| 3HAC050228-001 | Bracket lower arm | 0.416 kg kg | 0.416 kg kg | 140 mm mm | Bracket lower arm |
| 3HAC028811-001 | Process Cable Package 1-2 MH | 4.55 kg kg | 4.55 kg kg | — | Process Cable Package 1-2 MH |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
