Altivar Machine ATV340 Parts
Schneider Electric
ATV340U75N4SVariable speed drive, Altivar Machine ATV340, 7.5kW, heavy duty, 400V, 3 phases, Sercos
Schneider Electric
ATV340U40N4SVariable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases, Sercos
Schneider Electric
ATV340U55N4SVariable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases, Sercos
Schneider Electric
ATV340U22N4SVariable speed drive, Altivar Machine ATV340, 2.2kW, heavy duty, 400V, 3 phases, Sercos
Schneider Electric

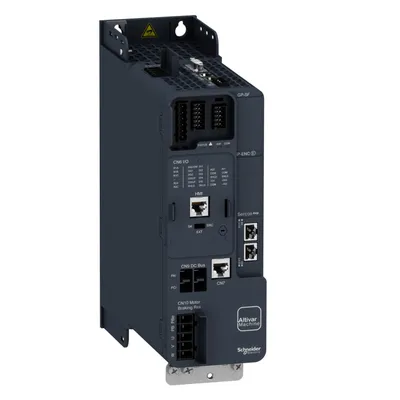

ATV340U15N4SVariable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases, Sercos
Compare Altivar Machine ATV340
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | nominal output current | Maximum input current | Base load current at high overload | Base load current at low overload | Net weight |
|---|---|---|---|---|---|
| ATV340U75N4E | 16.5 A | 25.6 A | 16.5 A | 24.0 A | 3.0 kg |
| ATV340U75N4S | 16.5 A | 25.6 A | 16.5 A | 24.0 A | 3.0 kg |

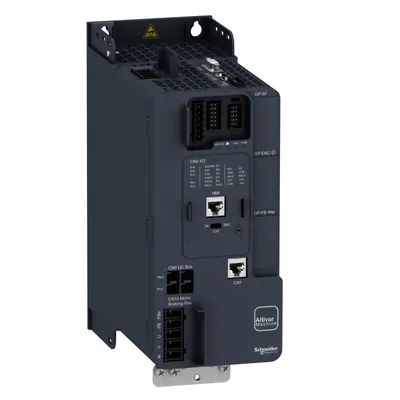

| ATV340U75N4 | 16.5 A | 25.6 A | 16.5 A | 24.0 A | 3.0 kg |
| ATV340U40N4S | 9.3 A | 13.4 A | 9.3 A | 12.7 A | 2.2 kg |
| ATV340U55N4S | 12.7 A | 20.0 A | 12.7 A | 16.5 A | 2.9 kg |

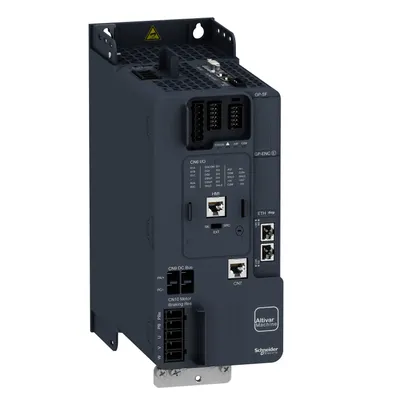

| ATV340U55N4E | 12.7 A | 20.0 A | 12.7 A | 16.5 A | 2.9 kg |
| ATV340U55N4 | 12.7 A | 20.0 A | 12.7 A | 16.5 A | 2.9 kg |
| ATV340U40N4E | 9.3 A | 13.4 A | 9.3 A | 12.7 A | 2.3 kg |
| ATV340U40N4 | 9.3 A | 13.4 A | 9.3 A | 12.7 A | 2.2 kg |

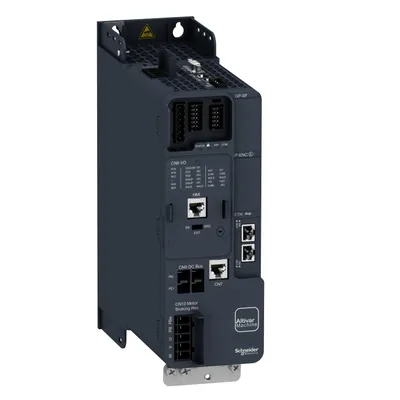

| ATV340U22N4E | 5.6 A | 8.4 A | 5.6 A | 7.2 A | 1.8 kg |
| ATV340U22N4S | 5.6 A | 8.4 A | 5.6 A | 7.2 A | 1.8 kg |
| ATV340U30N4E | 7.2 A | 10.7 A | 7.2 A | 9.3 A | 2.2 kg |
| ATV340U30N4 | 7.2 A | 10.7 A | 7.2 A | 9.3 A | 2.1 kg |
| ATV340U22N4 | 5.6 A | 8.4 A | 5.6 A | 7.2 A | 1.8 kg |
| ATV340U15N4S | 4.0 A | 6.0 A | 4.0 A | 5.6 A | 1.7 kg |
| ATV340U15N4E | 4.0 A | 6.0 A | 4.0 A | 5.6 A | 1.7 kg |
| ATV340U07N4E | 2.2 A | 3.4 A | 2.2 A | 2.8 A | 1.7 kg |
| ATV340U15N4 | 4.0 A | 6.0 A | 4.0 A | 5.6 A | 1.7 kg |
| ATV340U07N4 | 2.2 A | 3.4 A | 2.2 A | 2.8 A | 1.7 kg |
| ATV340D75N4E | 145.0 A | 156.2 A | 145.0 A | 173.0 A | 58.4 kg |
| ATV340D55N4E | 106.0 A | 131.3 A | 106.0 A | 145.0 A | 57.9 kg |

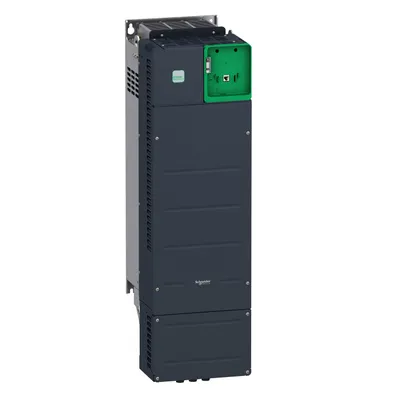

| ATV340D45N4E | 88.0 A | 97.2 A | 88.0 A | 106.0 A | 56.4 kg |

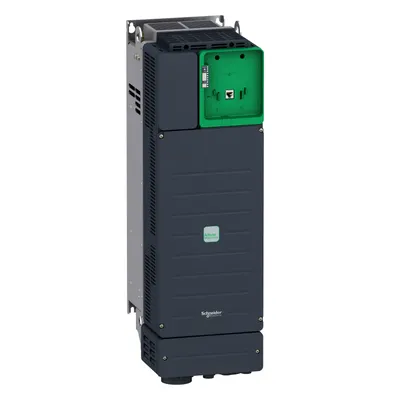

| ATV340D30N4E | 61.5 A | 66.2 A | 61.5 A | 74.5 A | 27.9 kg |

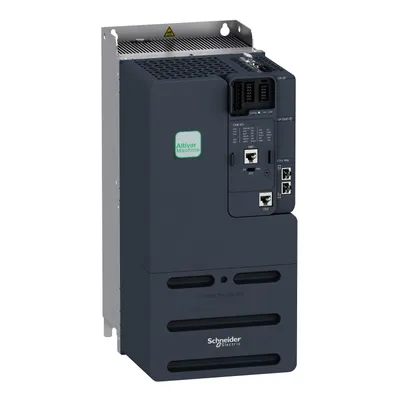

| ATV340D22N4E | 46.0 A | 63.5 A | 46.0 A | 62.0 A | 10.2 kg |
Common to all listed parts
| Range of product | Altivar Machine ATV340 |
| Product or component type | Variable speed drive |
| Product specific application | Machine |
| Variant | Standard version |
| Network number of phases | 3 phases |
| Supply frequency | 50...60 Hz +/- 5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| EMC filter | Class C3 EMC filter integrated |
