Schneider Electric
ATV320U75S6CVariable speed drive, Altivar Machine ATV320, 7.5 kW, 525...600 V, 3 phases, compact
Altivar Machine ATV320 Parts
Schneider Electric

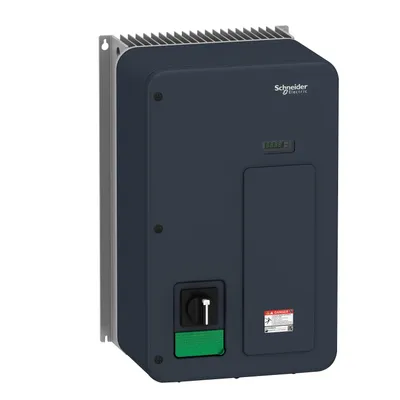

ATV320U75N4WSVariable speed drive, Altivar Machine ATV320, 7.5 kW, 380...500 V, 3 phases, enclosed
Schneider Electric

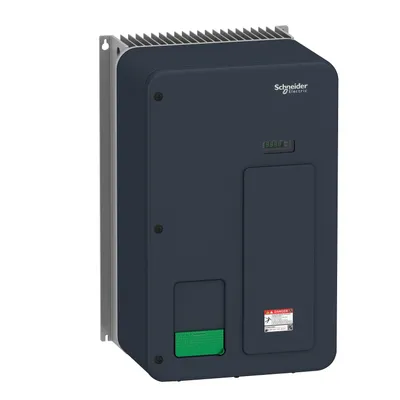

ATV320U75N4WVariable speed drive, Altivar Machine ATV320, 7.5 kW, 380...500 V, 3 phases, enclosed
Schneider Electric
ATV320U75N4CVariable speed drive, Altivar Machine ATV320, 7.5 kW, 380...500 V, 3 phases, compact
Schneider Electric
ATV320U55S6CVariable speed drive, Altivar Machine ATV320, 5.5 kW, 525...600 V, 3 phases, compact
Schneider Electric
ATV320U55N4WSVariable speed drive, Altivar Machine ATV320, 5.5 kW, 380...500 V, 3 phases, enclosed
Schneider Electric
ATV320U55N4WVariable speed drive, Altivar Machine ATV320, 5.5 kW, 380...500 V, 3 phases, enclosed
Schneider Electric

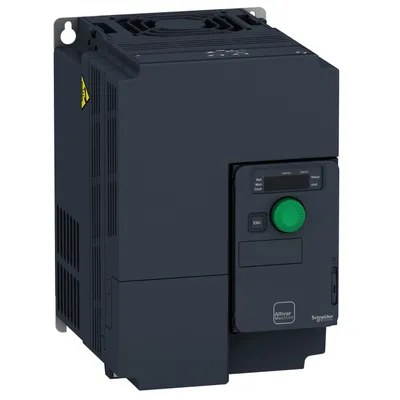

ATV320U55N4CVariable speed drive, Altivar Machine ATV320, 5.5 kW, 380...500 V, 3 phases, compact
Schneider Electric

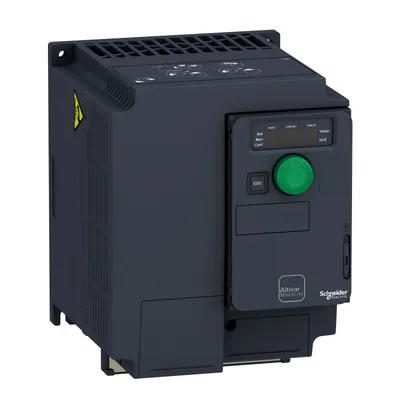

ATV320U40S6CVariable speed drive, Altivar Machine ATV320, 4 kW, 525...600 V, 3 phases, compact
Schneider Electric
ATV320U40N4WSVariable speed drive, Altivar Machine ATV320, 4 kW, 380...500 V, 3 phases, enclosed
Schneider Electric
ATV320U40N4WVariable speed drive, Altivar Machine ATV320, 4 kW, 380...500 V, 3 phases, enclosed
Schneider Electric

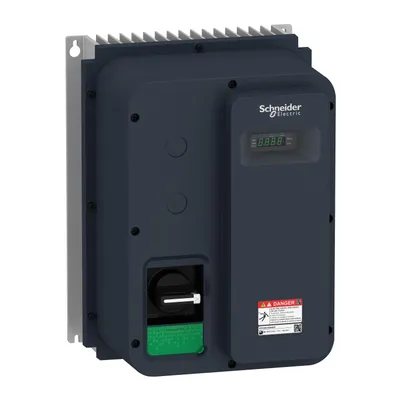

ATV320U30N4WSVariable speed drive, Altivar Machine ATV320, 3 kW, 380...500 V, 3 phases, enclosed
Schneider Electric

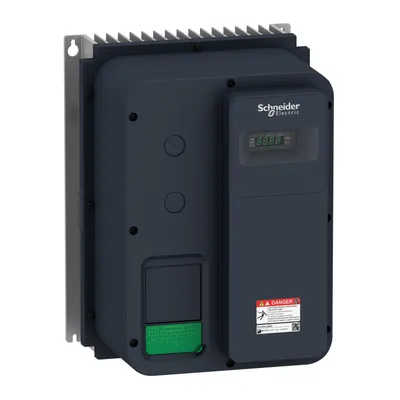

ATV320U30N4WVariable speed drive, Altivar Machine ATV320, 3 kW, 380...500 V, 3 phases, enclosed
Schneider Electric
ATV320U22S6CVariable speed drive, Altivar Machine ATV320, 2.2 kW, 525...600 V, 3 phases, compact
Compare Altivar Machine ATV320
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | nominal output current | Maximum input current | Apparent power | Base load current at high overload | Net weight |
|---|---|---|---|---|---|
| ATV320U75S6C | 11.0 A | 11.6 A | 10.9 kVA at 600 V (heavy duty) | 4 A | 3.5 kg |
| ATV320U75N4WS | 17.0 A | 26.5 A | 16.2 kVA at 500 V (heavy duty) | 17.0 A | 22.7 kg |
| ATV320U75N4W | 17.0 A | 26.5 A | 16.2 kVA at 500 V (heavy duty) | 17.0 A | 22.0 kg |
| ATV320U75N4C | 17.0 A | 26.5 A | 16.2 kVA at 500 V (heavy duty) | 17.0 A | 3.6 kg |

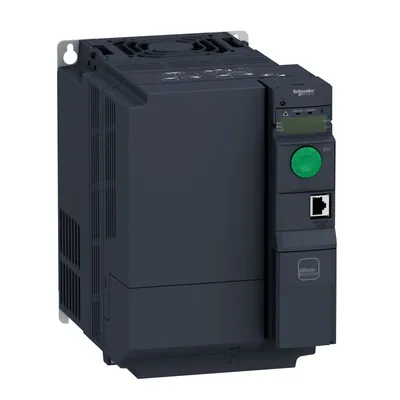

| ATV320U75N4B | 17.0 A | 26.5 A | 16.2 kVA at 500 V (heavy duty) | 17.0 A | 4.4 kg |
| ATV320U75M3C | 33.0 A | 45.3 A | 15.9 kVA at 240 V (heavy duty) | 33.0 A | 3.6 kg |
| ATV320U55S6C | 9.0 A | 8.4 A | 7.8 kVA at 600 V (heavy duty) | 9.0 A | 3.5 kg |
| ATV320U55N4WS | 14.3 A | 20.7 A | 12.6 kVA at 500 V (heavy duty) | 14.3 A | 22.7 kg |
| ATV320U55N4W | 14.3 A | 20.7 A | 12.6 kVA at 500 V (heavy duty) | 14.3 A | 22.0 kg |
| ATV320U55N4B | 14.3 A | 20.7 A | 12.6 kVA at 500 V (heavy duty) | 14.3 A | 4.4 kg |
| ATV320U55M3C | 27.5 A | 35.4 A | 12.4 kVA at 240 V (heavy duty) | 27.5 A | 3.5 kg |
| ATV320U55N4C | 14.3 A | 20.7 A | 12.6 kVA at 500 V (heavy duty) | 14.3 A | 3.5 kg |
| ATV320U40S6C | 6.1 A | 6.5 A | 6.0 kVA at 600 V (heavy duty) | 6.1 A | 2.5 kg |
| ATV320U40N4WS | 9.5 A | 13.7 A | 9.2 kVA at 500 V (heavy duty) | 9.5 A | 8.2 kg |
| ATV320U40N4W | 9.5 A | 13.7 A | 9.2 kVA at 500 V (heavy duty) | 9.5 A | 7.8 kg |
| ATV320U40M3C | 17.5 A | 23.8 A | 8.3 kVA at 240 V (heavy duty) | 17.0 A | 2.2 kg |
| ATV320U40N4C | 9.5 A | 13.7 A | 9.2 kVA at 500 V (heavy duty) | 9.5 A | 2.2 kg |
| ATV320U40N4B | 9.5 A | 13.7 A | 9.1 kVA at 500 V (heavy duty) | 9.5 A | 3.0 kg |
| ATV320U30N4WS | 7.1 A | 11.1 A | 7.3 kVA at 500 V (heavy duty) | 14.3 A | 8.1 kg |
| ATV320U30N4W | 7.1 A | 11.1 A | 7.3 kVA at 500 V (heavy duty) | 9.5 A | 7.7 kg |
| ATV320U30N4C | 7.1 A | 11.1 A | 7.3 kVA at 500 V (heavy duty) | 7.1 A | 2.1 kg |

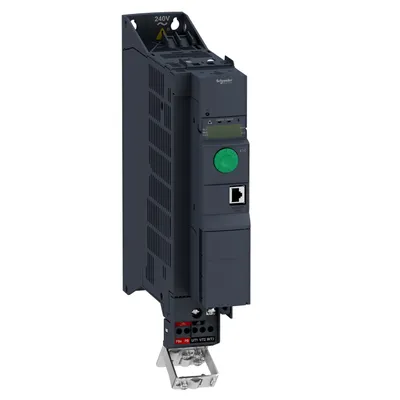

| ATV320U30N4B | 7.1 A | 11.1 A | 7.3 kVA at 500 V (heavy duty) | 4.1 A | 3.0 kg |
| ATV320U30M3C | 13.7 A | 18.7 A | 6.5 kVA at 240 V (heavy duty) | 3.0 A | 2.2 kg |
| ATV320U22S6C | 3.9 A | 3.7 A | 3.4 kVA at 600 V (heavy duty) | 2.3 A | 2.0 kg |
Common to all listed parts
| Range of product | Altivar Machine ATV320 |
| Product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Communication port protocol | Modbus serial; CANopen |
| Discrete input number | 7 |
| Discrete input logic | Positive logic (source); Negative logic (sink) |
| Discrete output number | 3 |
| Analogue input number | 3 |
