Modicon TM3 Parts

Schneider Electric

TM3DQ8UG

Discrete output module, Modicon TM3, 8 outputs transistor NPN (spring)

Schneider Electric

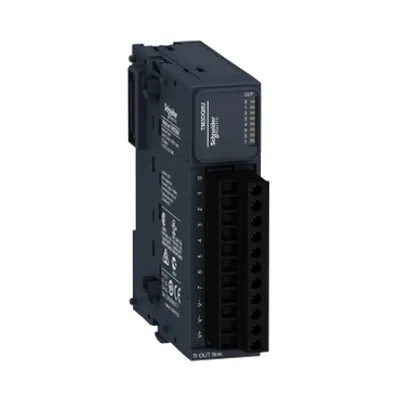

TM3DQ8U

Discrete output module, Modicon TM3, 8 outputs transistor NPN, screw

Schneider Electric

TM3DQ8TG

Discrete output module, Modicon TM3, 8 outputs transistor PNP, spring

Schneider Electric

TM3DQ8T

Discrete output module, Modicon TM3, 8 outputs transistor PNP, screw

Schneider Electric

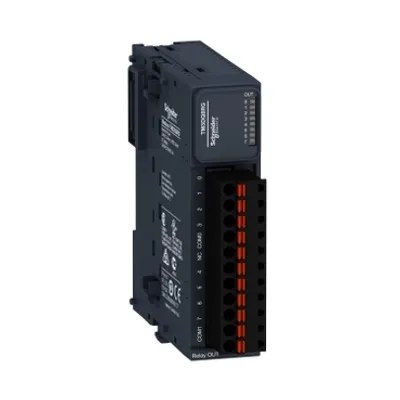

TM3DQ8RG

Discrete output module, Modicon TM3, 8 relay outputs, spring, 24V DC

Schneider Electric

TM3DQ8R

Discrete output module, Modicon TM3, 8 relay outputs, screw, 24V DC

Schneider Electric

TM3DQ32UK

Discrete output module, Modicon TM3, 32 outputs transistor NPN, HE10

Schneider Electric

TM3DQ32TK

Discrete output module, Modicon TM3, 32 outputs transistor PNP, HE10

Schneider Electric

TM3DQ16UK

Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)

Schneider Electric

TM3DQ16UG

Discrete output module, Modicon TM3, 16 outputs transistor NPN (spring)

Schneider Electric

TM3DQ16U

Discrete output module, Modicon TM3, 16 outputs transistor NPN, screw

Schneider Electric

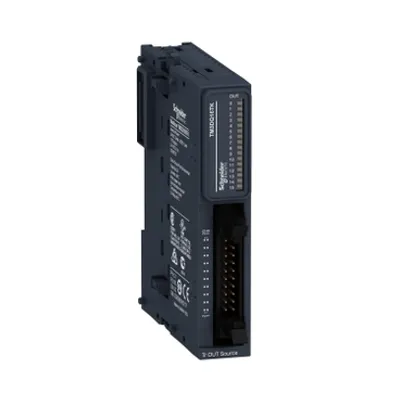

TM3DQ16TK

Discrete output module, Modicon TM3, 16 outputs transistor PNP, HE10

Schneider Electric

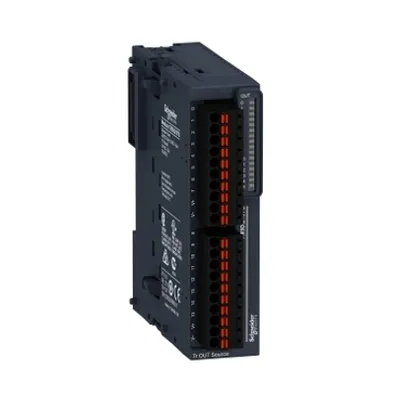

TM3DQ16TG

Discrete output module, Modicon TM3, 16 outputs transistor PNP, spring

Schneider Electric

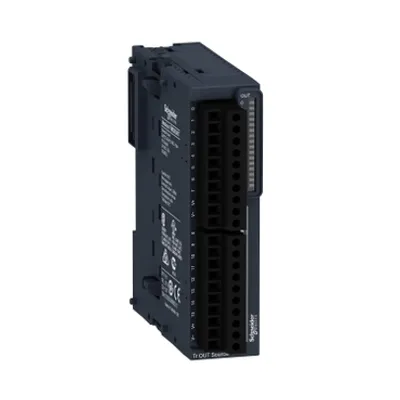

TM3DQ16T

Discrete output module, Modicon TM3, 16 outputs transistor PNP, screw

Schneider Electric

TM3DQ16RG

Discrete output module, Modicon TM3, 16 relay outputs, spring, 24V DC

Schneider Electric

TM3DQ16R

Discrete output module, Modicon TM3, 16 relay outputs, screw, 24V DC

Schneider Electric

TM3DM8RG

Discrete I/O module, Modicon TM3, 8 IO, 4 inputs, 4 relay outputs, spring, 24V DC

Schneider Electric

TM3DM8R

Discrete I/O module, Modicon TM3, 8 IO, 4 inputs, 4 relay outputs, screw, 24V DC

Schneider Electric

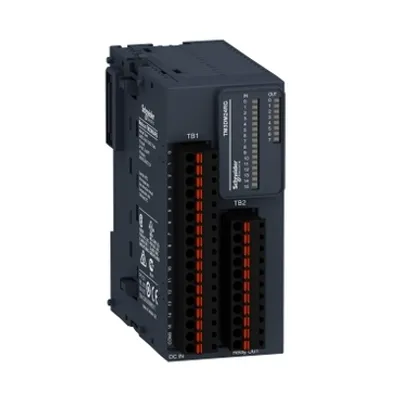

TM3DM24RG

Discrete IO module, Modicon TM3, 24 IO, 16 inputs, 8 relay outputs, spring, 24V DC

Schneider Electric

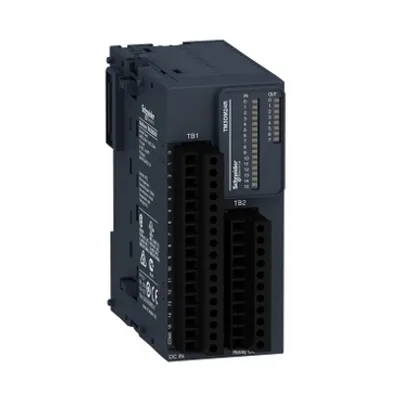

TM3DM24R

Discrete IO module, Modicon TM3, 24 IO, 16 inputs, 8 relay outputs, screw, 24V DC

Schneider Electric

TM3DI8G

Discrete input module, Modicon TM3, 8 inputs, spring, 24V DC

Schneider Electric

TM3DI8A

Discrete input module, Modicon TM3, 8 inputs, screw, 120V AC

Schneider Electric

TM3DI8

Discrete input module, Modicon TM3, 8 inputs, screw, 24V DC

Schneider Electric

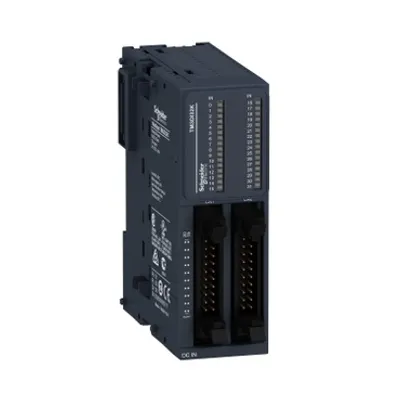

TM3DI32K

Discrete input module, Modicon TM3, 32 inputs, HE10, 24V DC

Compare Modicon TM3

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Discrete output number	Discrete output current	Safety reliability data	Width	Net weight
TM3DQ8UG	8 transistor	50 mA transistor output	MTBF = 170 years 40 °C	27.4 mm	0.76 kg
TM3DQ8U	8 transistor	50 mA transistor output	MTBF = 170 years 40 °C	27.4 mm	0.76 kg
TM3DQ8TG	8 transistor	50 mA transistor output	MTBF = 100 years 40 °C	27.4 mm	0.76 kg
TM3DQ8T	8 transistor	50 mA transistor output	MTBF = 100 years 40 °C	27.4 mm	0.76 kg
TM3DQ8RG	8 relay normally open	2000 mA relay output	MTBF = 250 years 40 °C	27.4 mm	0.11 kg
TM3DQ8R	8 relay normally open	2000 mA relay output	MTBF = 250 years 40 °C	27.4 mm	0.11 kg
TM3DQ32UK	32 transistor	100 mA transistor output	MTBF = 61 years 40 °C	33.5 mm	0.112 kg
TM3DQ32TK	32 transistor	100 mA transistor output	—	33.5 mm	0.112 kg
TM3DQ16UK	16 transistor	100 mA transistor output	MTBF = 110 years 40 °C	21.4 mm	0.111 kg
TM3DQ16UG	16 transistor	300 mA transistor output	MTBF = 99 years 40 °C	21.4 mm	0.76 kg
TM3DQ16U	16 transistor	300 mA transistor output	MTBF = 99 years 40 °C	21.4 mm	0.76 kg
TM3DQ16TK	16 transistor	100 mA transistor output	MTBF = 58 years 40 °C	21.4 mm	0.72 kg
TM3DQ16TG	16 transistor	500 mA transistor output	MTBF = 57 years 40 °C	27.4 mm	0.11 kg
TM3DQ16T	16 transistor	500 mA transistor output	MTBF = 57 years 40 °C	27.4 mm	0.11 kg
TM3DQ16RG	16 relay normally open	2000 mA relay output	MTBF = 130 years 40 °C	27.4 mm	0.145 kg
TM3DQ16R	16 relay normally open	2000 mA relay output	MTBF = 130 years 40 °C	27.4 mm	0.145 kg
TM3DM8RG	4 relay normally open	2000 mA relay output	MTBF = 310 years 40 °C	27.4 mm	0.95 kg
TM3DM8R	4 relay normally open	2000 mA relay output	MTBF = 310 years 40 °C	27.4 mm	0.95 kg
TM3DM24RG	8 relay normally open	2000 mA relay output	MTBF = 130 years 40 °C	42.9 mm	—
TM3DM24R	8 relay normally open	2000 mA relay output	MTBF = 130 years 40 °C	42.9 mm	—
TM3DI8G	—	—	MTBF = 410 years 40 °C	27.4 mm	0.085 kg
TM3DI8A	—	—	MTBF = 410 years 40 °C	27.4 mm	0.085 kg
TM3DI8	—	—	MTBF = 410 years 40 °C	27.4 mm	0.085 kg
TM3DI32K	—	—	MTBF = 130 years 40 °C	33.5 mm	0.1 kg

Common to all listed parts

Range of product	Modicon TM3
Range compatibility	Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device application	Industrial application
Power supply type	Electronic powered by internal bus
Housing colour	Grey
Height	90 mm
IP degree of protection	IP20
Protective treatment	None
