Schneider Electric
METSECT5HP060PowerLogic Split Core Current Transformer - Type HP, for cable - 0600A / 5A
PowerLogic™ Current Transformers Parts
Schneider Electric
METSECT5HP040PowerLogic Split Core Current Transformer - Type HP, for cable - 0400A / 5A
Schneider Electric
METSECT5HP025PowerLogic Split Core Current Transformer - Type HP, for cable - 0250A / 5A
Schneider Electric
METSECT5HM080PowerLogic Split Core Current Transformer - Type HM, for cable - 0800A / 5A
Schneider Electric
METSECT5HM075PowerLogic Split Core Current Transformer - Type HM, for cable - 0750A / 5A
Schneider Electric
METSECT5HM060PowerLogic Split Core Current Transformer - Type HM, for cable diameter 42.4mm, 0600A / 5A
Schneider Electric
METSECT5HM050PowerLogic Split Core Current Transformer - Type HM, for cable - 0500A / 5A
Schneider Electric
METSECT5HM040PowerLogic Split Core Current Transformer - Type HM, for cable - 0400A / 5A
Schneider Electric
METSECT5HM030PowerLogic Split Core Current Transformer - Type HM, for cable - 0300A / 5A
Schneider Electric
METSECT5HJ080PowerLogic Split Core Current Transformer - Type HJ, for cable - 0800A / 5A
Schneider Electric
METSECT5HJ075PowerLogic Split Core Current Transformer - Type HJ, for cable - 0750A / 5A
Schneider Electric
METSECT5HJ060PowerLogic Split Core Current Transformer - Type HJ, for cable - 0600A / 5A
Schneider Electric
METSECT5HJ040PowerLogic Split Core Current Transformer - Type HJ, for cable diameter 42.4mm, 0400A / 5A
Schneider Electric
METSECT5HJ030PowerLogic Split Core Current Transformer - Type HJ, for cable - 0300A / 5A
Schneider Electric
METSECT5HG060PowerLogic Split Core Current Transformer - Type HG, for cable - 0600A / 5A
Schneider Electric
METSECT5HG040PowerLogic Split Core Current Transformer - Type HG, for cable diameter 32.5mm, 0400A / 5A
Schneider Electric
METSECT5HG030PowerLogic Split Core Current Transformer - Type HG, for cable - 0300A / 5A
Schneider Electric
METSECT5HG025PowerLogic Split Core Current Transformer - Type HG, for cable diameter 32.5mm, 0250A / 5A
Schneider Electric
METSECT5HG020PowerLogic Split Core Current Transformer - Type HG, for cable diameter 32.5mm, 0200A / 5A
Schneider Electric

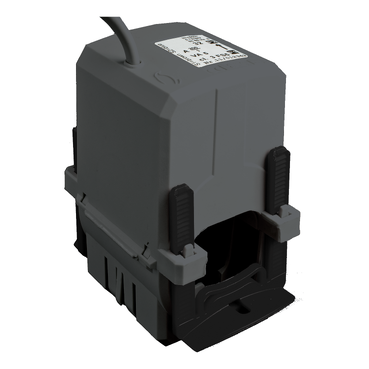

METSECT5HG015PowerLogic Split Core Current Transformer - Type HG, for cable - 0150A / 5A
Schneider Electric
METSECT5HG013PowerLogic Split Core Current Transformer - Type HG, for cable - 0125A / 5A
Schneider Electric
METSECT5HG010PowerLogic Split Core Current Transformer - Type HG, for cable diameter 32.5mm, 0100A / 5A
Schneider Electric
METSECT5HD050PowerLogic Split Core Current Transformer - Type HD, for cable - 0500A / 5A
Schneider Electric
METSECT5HD040PowerLogic Split Core Current Transformer - Type HD, for cable - 0400A / 5A
Compare PowerLogic™ Current Transformers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | [In] rated current | Current transformer ratio | [Ith] conventional free air thermal current | Permissible current |
|---|---|---|---|---|---|
| METSECT5HP060 | Class 1 at 5 VA | 600 A | 600/5 | 720 A | 36000 A during 1 s |
| METSECT5HP040 | Class 1 at 5 VA | 400 A | 400/5 | 480 A | 24000 A during 1 s |
| METSECT5HP025 | Class 1 at 1.5 VA | 250 A | 250/5 | 300 A | 15000 A during 1 s |
| METSECT5HM080 | Class 0.5 at 2.5 VA | 800 A | 800/5 | 960 A | 48000 A during 1 s |
| METSECT5HM075 | Class 0.5 at 2.5 VA | 750 A | 750/5 | 900 A | 45000 A during 1 s |
| METSECT5HM060 | Class 0.5 at 2.5 VA | 600 A | 600/5 | 720 A | 36000 A during 1 s |
| METSECT5HM050 | Class 1 at 5 VA | 500 A | 500/5 | 600 A | 30000 A during 1 s |
| METSECT5HM040 | Class 1 at 5 VA | 400 A | 400/5 | 480 A | 24000 A during 1 s |
| METSECT5HM030 | Class 1 at 2.5 VA | 300 A | 300/5 | 360 A | 18000 A during 1 s |
| METSECT5HJ080 | Class 0.5 at 2.5 VA | 800 A | 800/5 | 960 A | 48000 A during 1 s |
| METSECT5HJ075 | Class 0.5 at 2.5 VA | 750 A | 750/5 | 900 A | 45000 A during 1 s |
| METSECT5HJ060 | Class 0.5 at 2.5 VA | 600 A | 600/5 | 720 A | 36000 A during 1 s |
| METSECT5HJ040 | Class 1 at 5 VA | 400 A | 400/5 | 480 A | 24000 A during 1 s |
| METSECT5HJ030 | Class 1 at 2.5 VA | 300 A | 300/5 | 360 A | 18000 A during 1 s |
| METSECT5HG060 | Class 1 at 5 VA | 600 A | 600/5 | 720 A | 36000 A during 1 s |
| METSECT5HG040 | Class 1 at 5 VA | 400 A | 400/5 | 480 A | 24000 A during 1 s |
| METSECT5HG030 | Class 1 at 2.5 VA | 300 A | 300/5 | 360 A | 18000 A during 1 s |
| METSECT5HG025 | Class 3 at 3 VA | 250 A | 250/5 | 300 A | 15000 A during 1 s |
| METSECT5HG020 | Class 3 at 3 VA | 200 A | 200/5 | 240 A | 12000 A during 1 s |
| METSECT5HG015 | Class 3 at 3 VA | 150 A | 150/5 | 180 A | 9000 A during 1 s |
| METSECT5HG013 | Class 3 at 2.5 VA | 125 A | 125/5 | 150 A | 7500 A during 1 s |
| METSECT5HG010 | Class 3 at 1.5 VA | 100 A | 100/5 | 120 A | 6000 A during 1 s |
| METSECT5HD050 | Class 0.5 at 1 VA | 500 A | 500/5 | 600 A | 30000 A during 1 s |
| METSECT5HD040 | Class 1 at 2.5 VA | 400 A | 400/5 | 480 A | 24000 A during 1 s |
Common to all listed parts
| Range | PowerLogic |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Current transformer type | Standard for cable, Split core |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| Mounting mode | Clip-on |
