ComPact INS/INV Parts

Schneider Electric

31367

Switch disconnector, Compact INV2000, visible break, 2000A, standard version with black rotary handle, 4 poles

Schneider Electric

31366

Switch disconnector, Compact INV2000, visible break, 2000A, standard version with black rotary handle, 3 poles

Schneider Electric

31365

Switch disconnector, Compact INV1600, visible break, 1600A, standard version with black rotary handle, 4 poles

Schneider Electric

31364

Switch disconnector, Compact INV1600, visible break, 1600A, standard version with black rotary handle, 3 poles

Schneider Electric

31363

Switch disconnector, Compact INV1250, visible break, 1250A, standard version with black rotary handle, 4 poles

Schneider Electric

31362

Switch disconnector, Compact INV1250, visible break, 1250A, standard version with black rotary handle, 3 poles

Schneider Electric

31361

Switch disconnector, Compact INV1000, visible break, 1000A, standard version with black rotary handle, 4 poles

Schneider Electric

31360

Switch disconnector, Compact INV1000, visible break, 1000A, standard version with black rotary handle, 3 poles

Schneider Electric

31359

Switch disconnector, Compact INV800, visible break, 800A, standard version with black rotary handle, 4 poles

Schneider Electric

31358

Switch disconnector, Compact INV800, visible break, 800A, standard version with black rotary handle, 3 poles

Schneider Electric

31351

Switch disconnector, Compact INS1600, 1600A, with red rotary handle, yellow front, 4 poles

Schneider Electric

31350

Switch disconnector, Compact INS1600, 1600A, with red rotary handle, yellow front, 3 poles

Schneider Electric

31349

Switch disconnector, Compact INS1250, 1250A, with red rotary handle, yellow front, 4 poles

Schneider Electric

31348

Switch disconnector, Compact INS1250, 1250A, with red rotary handle, yellow front, 3 poles

Schneider Electric

31346

Switch disconnector, Compact INS1000, 1000A, with red rotary handle, yellow front, 3 poles

Schneider Electric

31345

Switch disconnector, Compact INS800, 800A, with red rotary handle, yellow front, 4 poles

Schneider Electric

31344

Switch disconnector, Compact INS800, 800A, with red rotary handle, yellow front, 3 poles

Schneider Electric

31343

Switch disconnector, Compact INS630b, 630A, standard version with black rotary handle, 4 poles

Schneider Electric

31342

Switch disconnector, Compact INS630b, 630A, standard version with black rotary handle, 3 poles

Schneider Electric

31341

Switch disconnector, Compact INS2500, 2500A, standard version with black rotary handle, 4 poles

Schneider Electric

31340

Switch disconnector, Compact INS2500, 2500A, standard version with black rotary handle, 3 poles

Schneider Electric

31339

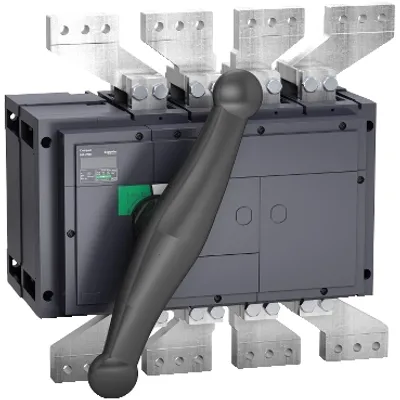

Switch disconnector, Compact INS2000, 2000A, standard version with black rotary handle, 4 poles

Schneider Electric

31338

Switch disconnector, Compact INS2000, 2000A, standard version with black rotary handle, 3 poles

Schneider Electric

31337

Switch disconnector, Compact INS1600, 1600A, standard version with black rotary handle, 4 poles

Compare ComPact INS/INV

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Poles description	[Ith] conventional free air thermal current	[Ue] rated operational voltage	Width	Net weight
31367	4P	2000 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	347.5 mm	45 kg
31366	3P	2000 A at 60 °C	250 V DC, 690 V AC 50/60 Hz	347.5 mm	35 kg
31365	4P	1600 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	340 mm	18 kg
31364	3P	1600 A at 60 °C	250 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31363	4P	1250 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	340 mm	18 kg
31362	3P	1250 A at 60 °C	250 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31361	4P	1000 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	340 mm	18 kg
31360	3P	1000 A at 60 °C	250 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31359	4P	800 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	340 mm	18 kg
31358	3P	800 A at 60 °C	250 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31351	4P	1600 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	410 mm	18 kg
31350	3P	1600 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31349	4P	1250 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	410 mm	18 kg
31348	3P	1250 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31346	3P	1000 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31345	4P	800 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	410 mm	18 kg
31344	3P	800 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31343	4P	630 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	410 mm	18 kg
31342	3P	630 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	340 mm	14 kg
31341	4P	2500 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	462.5 mm	45 kg
31340	3P	2500 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	347.5 mm	35 kg
31339	4P	2000 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	462.5 mm	45 kg
31338	3P	2000 A at 60 °C	125 V DC, 690 V AC 50/60 Hz	347.5 mm	35 kg
31337	4P	1600 A at 60 °C	690 V AC 50/60 Hz, 250 V DC	410 mm	18 kg

Common to all listed parts

Range	ComPact
Product name	ComPacT INS
Product or component type	Switch disconnector
Network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	12 kV
Suitability for isolation	Yes
Contact position indicator	Yes
