IEEE 841XL Motors Parts

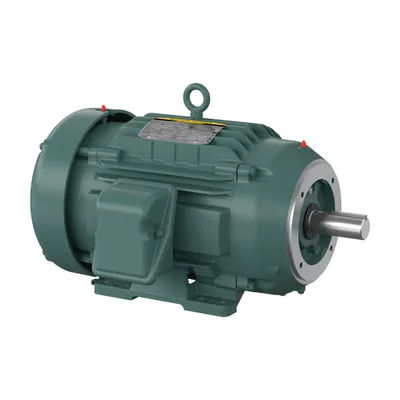

ABB

CECP82333T-5

15HP,1760RPM,3PH,60HZ,254TC,TEFC,F1

ABB

CECP82334T-5

20HP,1760RPM,3PH,60HZ,256TC,TEFC,F1

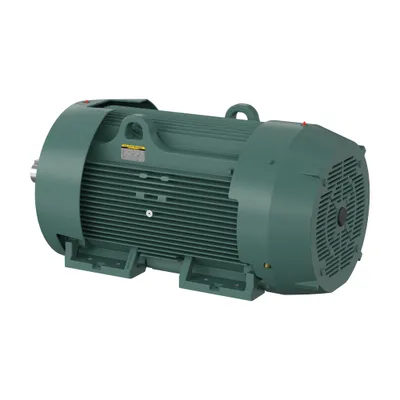

ABB

ECP84408TR-4

250HP,1785RPM,3PH,60HZ,449T,A44160M

ABB

ECP82332T-5

10HP,1180RPM,3PH,60HZ,256T,TEFC,F1

ABB

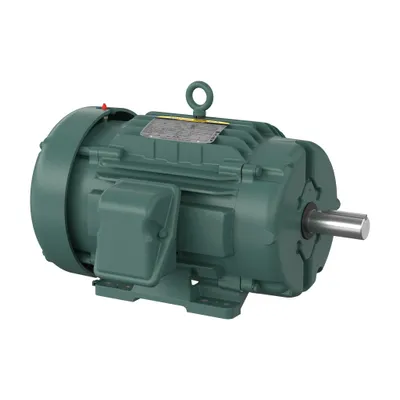

ECP82332T-4

10HP,1180RPM,3PH,60HZ,256T,TEFC,F1

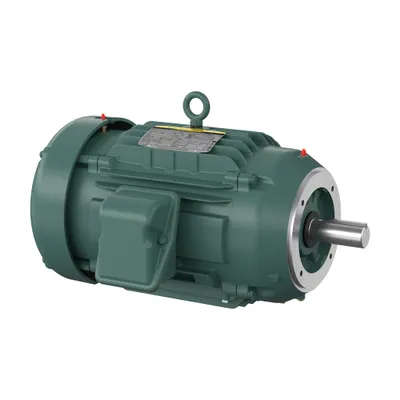

ABB

VECP84106T-4

20HP,3510RPM,3PH,60HZ,256TC,0954M,T

ABB

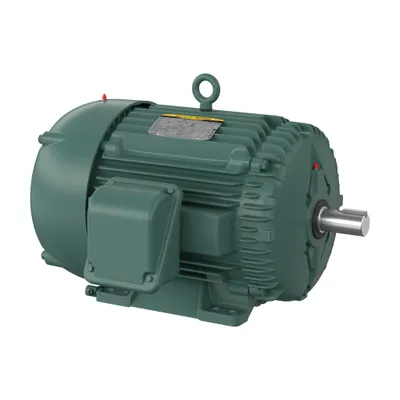

ECP84109T-4

40HP,3545RPM,3PH,60HZ,324TS,TEFC,F1

ABB

ECP84109T-5

40HP,3530RPM,3PH,60HZ,324TS,TEFC,F1

ABB

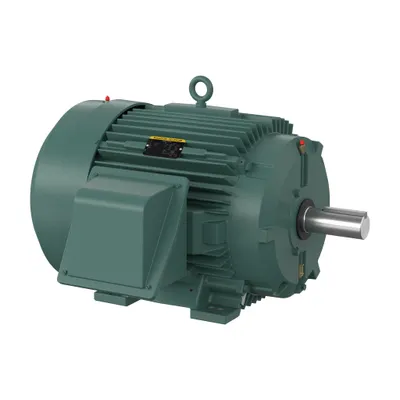

ECP84316T-5

75HP,1780RPM,3PH,60HZ,365T,A36070M

ABB

ECP84316T-4

75HP,1780RPM,3PH,60HZ,365T,A36070M

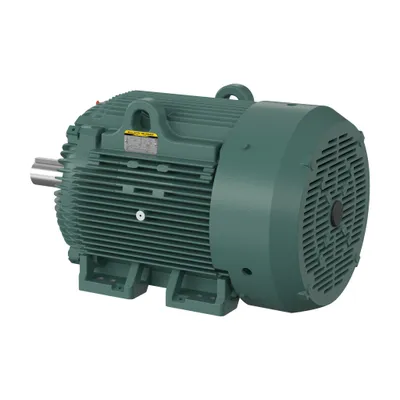

ABB

ECP84403T-4

60HP,1185RPM,3PH,60HZ,404T,A40072M

ABB

ECP84403T-5

60HP,1185RPM,3PH,60HZ,404T,A40072M

ABB

ECP84413T-5

150HP,3570RPM,3PH,60HZ,445TS,A4478M

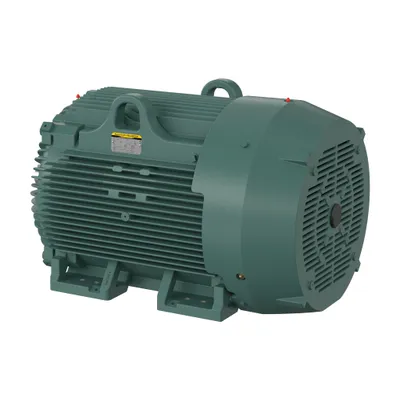

ABB

ECP84413T-4

150HP,3570RPM,3PH,60HZ,445TS,TEFC,F

ABB

ECP84411T-4

125HP,1188RPM,3PH,60HZ,445T,TEFC,F1

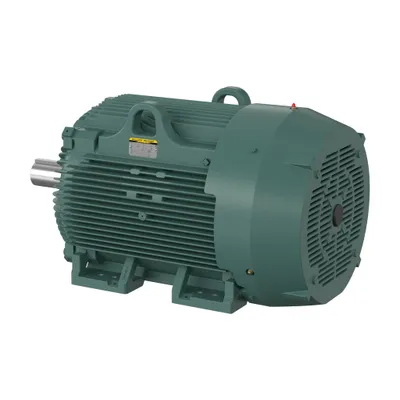

ABB

ECP84411T-5

125HP,1190RPM,3PH,60HZ,445T,A44090M

ABB

CECP83583T-4

1.5HP,3450RPM,3PH,60HZ,143,TC,0524M

ABB

CECP83586T-4

2HP,3490RPM,3PH,60HZ,145TC,0526M,TE

ABB

CECP83584T-4

1.5HP,1770RPM,3PH,60HZ,145TC,0524M

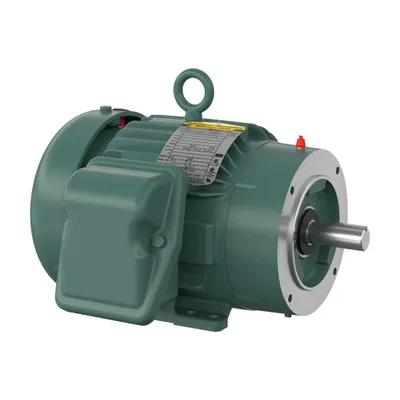

ABB

CECP83582T-4

1HP,1155RPM,3PH,60HZ,145TC,0526M,TE

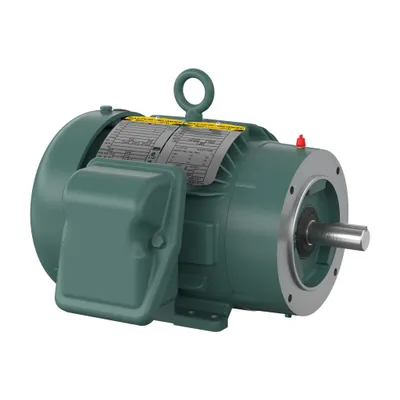

ABB

CECP83581T-4

1HP,1770RPM,3PH,60HZ,143TC,0520M,TE

ABB

CECP83580T-4

1HP,3500RPM,3PH,60HZ,143TC,0514M,TE

ABB

CECP82276T-4

7.5HP,1180RPM,3PH,60HZ,254TC,TEFC,F

ABB

ECP84308T-4

40HP,1190RPM,3PH,60HZ,364T,A36062M

Compare IEEE 841XL Motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Rated Efficiency	Output Power	Product Net Weight
CECP82333T-5	CECP82333T-5	85 %	92.40 %	15 Hp	309 lb
CECP82334T-5	CECP82334T-5	87 %	93 %	20 Hp	357 lb
ECP84408TR-4	ECP84408TR-4	88 %	96.20 %	250 Hp	2995 lb
ECP82332T-5	ECP82332T-5	71 %	91.70 %	10 Hp	357 lb
ECP82332T-4	ECP82332T-4	72 %	91 %	10 Hp	359 lb
VECP84106T-4	VECP84106T-4	91 %	91 %	20 Hp	341.999 lb
ECP84109T-4	ECP84109T-4	91 %	92.40 %	40 Hp	626 lb
ECP84109T-5	ECP84109T-5	91 %	92.40 %	40 Hp	624 lb
ECP84316T-5	ECP84316T-5	86 %	95.40 %	75 Hp	985 lb
ECP84316T-4	ECP84316T-4	86 %	95.40 %	75 Hp	971 lb
ECP84403T-4	ECP84403T-4	86 %	95 %	60 Hp	1271 lb
ECP84403T-5	ECP84403T-5	86 %	94.50 %	60 Hp	1275 lb
ECP84413T-5	ECP84413T-5	90 %	95 %	150 Hp	2062 lb
ECP84413T-4	ECP84413T-4	90 %	95 %	150 Hp	2053 lb
ECP84411T-4	ECP84411T-4	84 %	95 %	125 Hp	2083 lb
ECP84411T-5	ECP84411T-5	84 %	95 %	125 Hp	2000 lb
CECP83583T-4	CECP83583T-4	83 %	85.50 %	1.5 Hp	71 lb
CECP83586T-4	CECP83586T-4	88 %	85.50 %	2 Hp	80 lb
CECP83584T-4	CECP83584T-4	72 %	86.50 %	1.5 Hp	75 lb
CECP83582T-4	CECP83582T-4	66 %	82.50 %	1 Hp	56 lb
CECP83581T-4	CECP83581T-4	68 %	85.50 %	1 Hp	71 lb
CECP83580T-4	CECP83580T-4	78 %	77 %	1 Hp	63 lb
CECP82276T-4	CECP82276T-4	71 %	91 %	7.5 Hp	346 lb
ECP84308T-4	ECP84308T-4	80 %	94.10 %	40 Hp	927 lb

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	F
NEMA Design Code	B
