RPM III Parts

ABB

D51400R-BV

400HP,1150RPM,DC,4413ATZ,DPG-FV

ABB

D5060RS-BV

60HP,1750RPM,DC,2812ATZ,DPG-FV

ABB

D50150RE-BV

150HP,1750RPM,DC,2815ATZ,DPG-FV

ABB

D50400R-BV

400HP,1750RPM,DC,4013ATZ,DPG-FV

ABB

D51300R-BV

300HP,1150RPM,DC,4013ATZ,DPG-FV

ABB

D5005R

C1811ATZ,5HP,1750RPM,500,300,DPG,F1

ABB

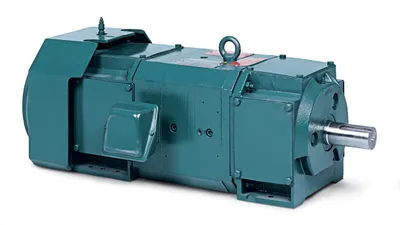

D5505R

5HP,1750RPM,DC,2113ATZ,TENV

ABB

D5007R

7.5 1750 DPG C1811ATZ STRT SHUNT

ABB

D5003R

C1811ATZ,3HP,1750RPM,500,300,DPG,F1

ABB

D50150URE-BV

150HP,1750RPM,DC,2815ATZ,DPG-FV

ABB

D50300R-BV

300 1750 LC3613ATZ DPFV STR SHNT

ABB

D5060R-BV

60HP,1750RPM,DC,2512ATZ,DPG-FV

ABB

D5160R-BV

60HP,1150RPM,DC,2515ATZ,DPG-FV

ABB

D5030R

30HP,1750RPM,DC,2512ATZ,DPG

ABB

D5530R

30 1750/2300 LC2812ATZ TEFC 500V

ABB

D5030RS-BV

30HP,1750RPM,DC,2512ATZ,DPG-FV

ABB

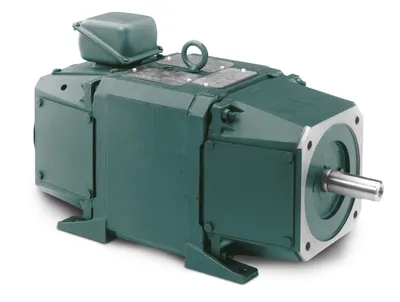

CD2105R

DC2112ATCZ,5HP,1750RPM,180,200,TENV

ABB

D5050RS-BV

50HP,1750RPM,DC,2512ATZ,DPG-FV

ABB

D51500R-BV

500HP,1150RPM,DC,4414ATZ,DPG-FV

ABB

D50100R-BV

100HP,1750RPM,DC,2515ATZ,DPG-FV

ABB

D5010RS-BV

10HP,1750RPM,DC,2113ATZ,DPG-FV

ABB

D2020R

20 1750 LC2113ATZ DPG 240V

ABB

D2025R

25HP,1750RPM,DC,2113ATZ,DPG

ABB

D5020R-BV

20HP,1750RPM,DC,2113ATZ,DPG-FV

Compare RPM III

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Output Power	Motor Frame Size	Product Net Weight	Dimension Diagram
D51400R-BV	D51400R-BV	400 Hp	C4413ATZ	3930 lb	616492-001
D5060RS-BV	D5060RS-BV	60 Hp	MC2812ATZ	860 lb	609952-096
D50150RE-BV	D50150RE-BV	150 Hp	C2815ATZ	1230 lb	609959-001
D50400R-BV	D50400R-BV	400 Hp	MC4013ATZ	2747 lb	609962-013
D51300R-BV	D51300R-BV	300 Hp	LC4013ATZ	3030 lb	609962-013
D5005R	D5005R	5 Hp	C1811ATZ	194 lb	609980-001
D5505R	D5505R	5 Hp	SC2113ATZ	340 lb	609950-001
D5007R	D5007R	7.5 Hp	C1811ATZ	230 lb	609980-001
D5003R	D5003R	3 Hp	C1811ATZ	196 lb	609980-001
D50150URE-BV	D50150URE-BV	150 Hp	UC2815ATZ	1235 lb	609959-001
D50300R-BV	D50300R-BV	300 Hp	LC3613ATZ	2170 lb	609979-003
D5060R-BV	D5060R-BV	60 Hp	LC2512ATZ	660 lb	609959-001
D5160R-BV	D5160R-BV	60 Hp	C2515ATZ	915.999 lb	609959-001
D5030R	D5030R	30 Hp	SC2512ATZ	530 lb	609950-001
D5530R	D5530R	30 Hp	LC2812ATZ	924 lb	609951-013
D5030RS-BV	D5030RS-BV	30 Hp	SC2512ATZ	589.001 lb	609952-096
CD2105R	CD2105R	5 Hp	DC2112ATCZ	355 lb	609958-001
D5050RS-BV	D5050RS-BV	50 Hp	LC2512ATZ	2190 lb	609952-096
D51500R-BV	D51500R-BV	500 Hp	C4414ATZ	4546 lb	616492-001
D50100R-BV	D50100R-BV	100 Hp	C2515ATZ	925 lb	609959-001
D5010RS-BV	D5010RS-BV	10 Hp	SC2113ATZ	415.001 lb	609952-096
D2020R	D2020R	20 Hp	LC2113ATZ	410 lb	609950-001
D2025R	D2025R	25 Hp	LC2113ATZ	460 lb	609950-001
D5020R-BV	D5020R-BV	20 Hp	SC2113ATZ	400 lb	609959-001

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
