GNEM enclosed motor Parts

Showing 1–13 of 13 parts

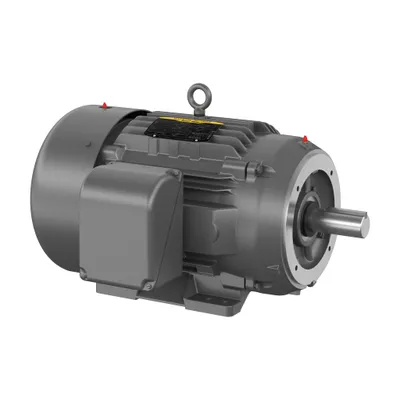

ABB CEM41004T – 22KW/30HP,1760RPM,3PH,60HZ,286TC,10
ABB
CEM41004T

22KW/30HP,1760RPM,3PH,60HZ,286TC,10

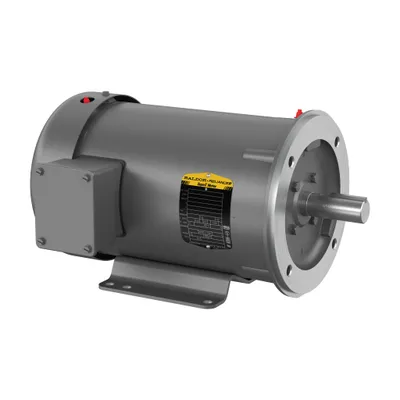

ABB CEM36015T – 3.7KW/5HP,1750RPM,3PH,60HZ,184TC,36
ABB
CEM36015T

3.7KW/5HP,1750RPM,3PH,60HZ,184TC,36

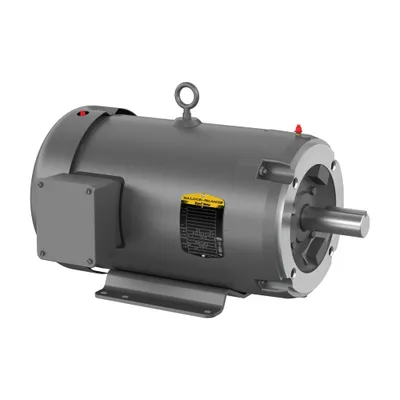

ABB CEM37011T – 7.5KW/10HP,3490RPM,3PH,60HZ,215TC,3
ABB
CEM37011T

7.5KW/10HP,3490RPM,3PH,60HZ,215TC,3

ABB CEM37013T – 11KW/15HP,3500RPM,3PH,60HZ,215TC,37
ABB
CEM37013T

11KW/15HP,3500RPM,3PH,60HZ,215TC,37

ABB CEM36011T – 2.2KW/3HP,1760RPM,3PH,60HZ,182TC,36
ABB
CEM36011T

2.2KW/3HP,1760RPM,3PH,60HZ,182TC,36

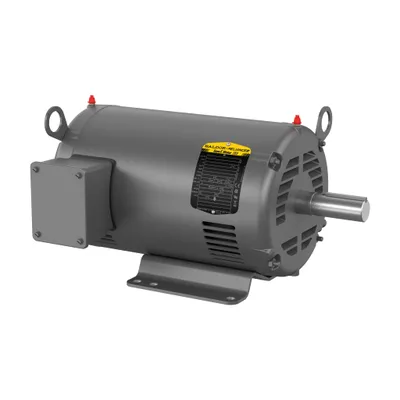

ABB GNEM3215T – 2HP,1170//965RPM,3PH,60//50HZ,184T
ABB
GNEM3215T

2HP,1170//965RPM,3PH,60//50HZ,184T

ABB GNEM3305T – 3HP//2.2KW,1165//960RPM,3PH,60//50H
ABB
GNEM3305T

3HP//2.2KW,1165//960RPM,3PH,60//50H

ABB GNEM3207T – 1.5HP/1.1KW,1170//960RPM,3PH,60//50
ABB
GNEM3207T

1.5HP/1.1KW,1170//960RPM,3PH,60//50

ABB GNEM3309T – 5HP//3.7KW,1160//955RPM,3PH,60//50H
ABB
GNEM3309T

5HP//3.7KW,1160//955RPM,3PH,60//50H

ABB CM3613TX – 5HP,3450RPM,3PH,60HZ,184TC,3626M,TE
ABB
CM3613TX

5HP,3450RPM,3PH,60HZ,184TC,3626M,TE

ABB CEM41010T – 30KW/40HP,1775RPM,3PH,60HZ,324TC,12
ABB
CEM41010T

30KW/40HP,1775RPM,3PH,60HZ,324TC,12

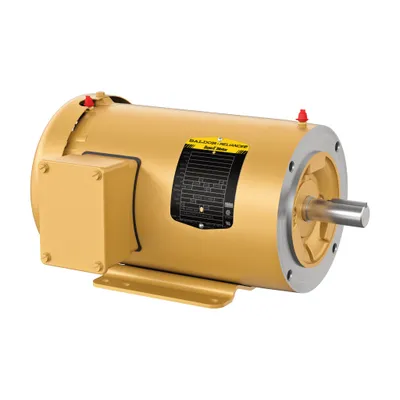

ABB CEM35046T – 1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
ABB
CEM35046T

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

ABB CEM35058T – 2HP,1770RPM,3PH,60HZ,145TC,3526M,TE
ABB
CEM35058T

2HP,1770RPM,3PH,60HZ,145TC,3526M,TE

Compare GNEM enclosed motor

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNCatalog NumberPower FactorRated EfficiencyOutput PowerProduct Net Weight
CEM41004TCEM41004T80 %93.60 %30 Hp431 lb
CEM36015TCEM36015T78 %89.50 %5 Hp93 lb
CEM37011TCEM37011T88 %90.20 %10 Hp118 lb
CEM37013TCEM37013T89 %91 %15 Hp169 lb
CEM36011TCEM36011T75 %89.50 %3 Hp70 lb
GNEM3215TGNEM3215T63 %87.5 %2 Hp82 lb
GNEM3305TGNEM3305T70 %88.5 %2.2 kW, 3 Hp kW119 lb
GNEM3207TGNEM3207T64 %86.5 %1.1 kW, 1.5 Hp kW68 lb
GNEM3309TGNEM3309T71 %89.5 %3.7 kW, 5 Hp kW141 lb
CM3613TXCM3613TX93 %87.50 %5 Hp71 lb
CEM41010TCEM41010T82 %94.10 %40 Hp600 lb
CEM35046TCEM35046T71 %85.50 %1 Hp38 lb
CEM35058TCEM35058T73 %86.50 %1.50 Hp48 lb

Common to all listed parts

Country or Territory of OriginUnited States
Minimum Order Quantity1 piece
Order Multiple1 piece
Ambient Temperature40 °C
Insulation ClassF
Number of Phases3-phase
Service Factor1.15
Type of DutyContinuous
