DC Shunt Wound SCR Drive Parts

ABB

CD5333

.33HP,1750RPM,DC,56C,3513D,TEFC,F1

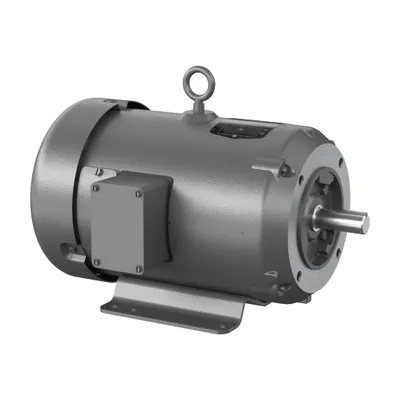

ABB

CD6219

1HP,1750RPM,DC,184C,3623D,TEFC,F1

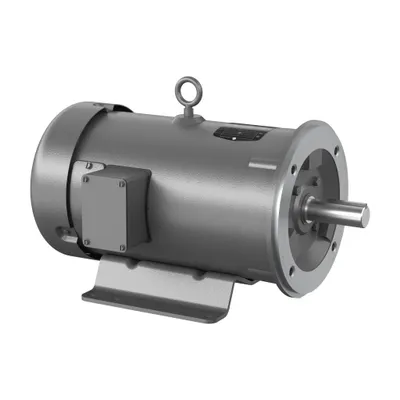

ABB

CD7502

2HP,1750RPM,DC,213C,3646D,TEFC,F1,N

ABB

CD3434

.33HP,1750RPM,DC,56C,3413D,TEFC,F1

ABB

CD5318

1HP,1750RPM,DC,56C,3535D,TEFC,F1

ABB

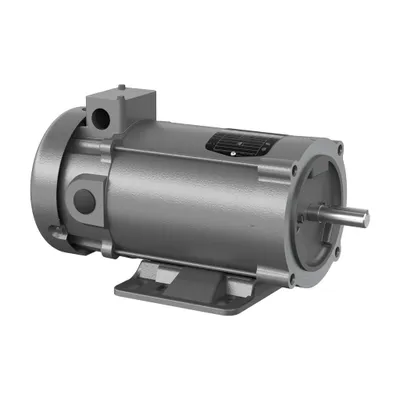

CD3476

.75HP,1750RPM,DC,56C,3428D,TEFC,F1

ABB

CD3451

.5HP,1750RPM,DC,56C,3420D,TEFC,F1,N

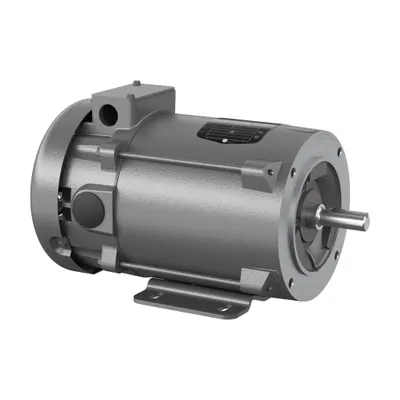

ABB

CD5350

.5HP,1750RPM,DC,56C,3520D,TEFC,F1

ABB

CD5375

.75HP,1750RPM,DC,56C,3528D,TEFC,F1

ABB

CD6218

1HP,1750RPM,DC,184C,3623D,TEFC,F1

ABB

CD3425

.25HP,1750RPM,DC,56C,3413D,TEFC,F1

ABB

CD3475

.75HP,1750RPM,DC,56C,3428D,TEFC,F1

ABB

CD7503

3HP,1750RPM,DC,215C,3668D,TEFC,F1,N

ABB

CD6203

3HP,1750RPM,DC,184TC,3668D,TEFC,F1

ABB

CD3433

.33HP,1750RPM,DC,56C,3413D,TEFC,F1

ABB

CD6202

2HP,1750RPM,DC,184C,3646D,TEFC,F1

ABB

CD3450

.5HP,1750RPM,DC,56C,3420D,TEFC,F1,N

ABB

CD6215

1.5HP,1750RPM,DC,184C,3636D,TEFC,F1

ABB

CD5319

1HP,1750RPM,DC,56C,3535D,TEFC,F1

ABB

35P1054Z396G1

1HP,1750RPM,DC,143TD,3535D,TEFC,F

ABB

36-5614Z148G1

1HP,1150RPM,DC,182ATY,3636D,TENV

ABB

36-5617Z124G3

1.3HP,1750RPM,DC,184,3636D,TEFC,F

ABB

35P555Z659G1

.25HP,1800RPM,DC,56C,3516D,TENV,F

ABB

35-6997Z441

.5HP,1140RPM,DC,56,3528D,OPEN,F1,N

Compare DC Shunt Wound SCR Drive

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Output Power	Product Net Height	Product Net Weight	Dimension Diagram
CD5333	CD5333	0.33 Hp	11.25 in	31 lb	35LYP445
CD6219	CD6219	1 Hp	12.813 in	64 lb	36LY5257
CD7502	CD7502	2 Hp	12.813 in	108 lb	36LY5580
CD3434	CD3434	0.33 Hp	11.125 in	23 lb	34LY6172
CD5318	CD5318	1 Hp	11.25 in	54 lb	35LYP442
CD3476	CD3476	0.75 Hp	11.25 in	34 lb	34LY6172
CD3451	CD3451	0.5 Hp	11.25 in	28 lb	34LY6172
CD5350	CD5350	0.5 Hp	11.25 in	37 lb	35LYP442
CD5375	CD5375	0.75 Hp	11.25 in	46 lb	35LYP442
CD6218	CD6218	1 Hp	12.813 in	65 lb	36LY5257
CD3425	CD3425	0.25 Hp	11.125 in	23 lb	34LY6172
CD3475	CD3475	0.75 Hp	11.25 in	34 lb	34LY6172
CD7503	CD7503	3 Hp	18.625 in	137 lb	36LY5580
CD6203	CD6203	3 Hp	16.75 in	133 lb	36LY5347
CD3433	CD3433	0.33 Hp	11.125 in	23 lb	34LY6172
CD6202	CD6202	2 Hp	12.813 in	98 lb	36LY5257
CD3450	CD3450	0.5 Hp	11.25 in	29 lb	34LY6172
CD6215	CD6215	1.5 Hp	12.813 in	81 lb	36LY5257
CD5319	CD5319	1 Hp	11.25 in	53 lb	35LYP442
35P1054Z396G1	—	—	12.813 in	64 lb	—
36-5614Z148G1	—	—	12.813 in	74 lb	—
36-5617Z124G3	—	—	12.813 in	85 lb	—
35P555Z659G1	—	—	11.125 in	31 lb	—
35-6997Z441	—	—	11.25 in	46 lb	—

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
