Vertical Hollow Shaft WP1 Fire Pump Parts

ABB

4WPHS025PE28FA24

Pump Motor 25 Hp 400 V

ABB

4WPHS025PE28FA14

Pump Motor 25 Hp 400 V

ABB

4WPHS020HE25FB24

Pump Motor 20 Hp 400 V

ABB

4WPHS020HE25FB14

Pump Motor 20 Hp 400 V

ABB

4WPHS040PE32FC14

Pump Motor 40 Hp 400 V

ABB

4WPHS040PE32FC24

Pump Motor 40 Hp 400 V

ABB

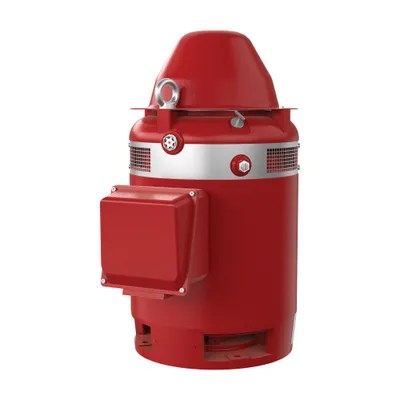

4WPHS500HE50FD42

Pump Motor 500 Hp 230 V

ABB

4WPHS060PE36FC13

Pump Motor 60 Hp 380 V

ABB

4WPHS350HE44FD46

Pump Motor 350 Hp 460 V

ABB

4WPHS050PE32FC23

Pump Motor 50 Hp 380 V

ABB

4WPHS350PE44FD42

Pump Motor 350 Hp 230 V

ABB

4WPHS060PE36FC23

Pump Motor 60 Hp 380 V

ABB

4WPHS050PE32FC13

Pump Motor 50 Hp 380 V

ABB

4WPHS150PE44FC46

Pump Motor 150 Hp 460 V

ABB

4WPHS125PE40FC42

Pump Motor 125 Hp 230 V

ABB

4WPHS200PE44FC15

Pump Motor 200 Hp 415 V

ABB

4WPHS350HE44FD13

Pump Motor 350 Hp 380 V

ABB

4WPHS150HE44FC25

Pump Motor 150 Hp 415 V

ABB

4WPHS150HE44FC15

Pump Motor 150 Hp 415 V

ABB

4WPHS075PE36FC13

Pump Motor 75 Hp 380 V

ABB

4WPHS250PE44FD46

Pump Motor 250 Hp 460 V

ABB

4WPHS400PE50FE14

Pump Motor 400 Hp 400 V

ABB

4WPHS350PE50FE25

Pump Motor 350 Hp 415 V

ABB

4WPHS350PE50FE15

Pump Motor 350 Hp 415 V

Compare Vertical Hollow Shaft WP1 Fire Pump

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Customs Tariff Number	NEMA Design Code	Output Power	Product Net Weight
4WPHS025PE28FA24	85015230	H	25 Hp	600.6 lb
4WPHS025PE28FA14	85015230	G G	25 Hp	600.6 lb
4WPHS020HE25FB24	85015220	H	20 Hp	557.7 lb
4WPHS020HE25FB14	85015220	G G	20 Hp	557.7 lb
4WPHS040PE32FC14	85015230	G G	40 Hp	797.5 lb
4WPHS040PE32FC24	85015230	H	40 Hp	797.5 lb
4WPHS500HE50FD42	85015381	G G	500 Hp	5385.6 lb
4WPHS060PE36FC13	85015230	G G	60 Hp	1018.6 lb
4WPHS350HE44FD46	85015381	G G	350 Hp	2813.8 lb
4WPHS050PE32FC23	85015230	H	50 Hp	872.3 lb
4WPHS350PE44FD42	85015381	G G	350 Hp	2813.8 lb
4WPHS060PE36FC23	85015230	H	60 Hp	1018.6 lb
4WPHS050PE32FC13	85015230	G G	50 Hp	872.3 lb
4WPHS150PE44FC46	85015381	G G	150 Hp	2175.8 lb
4WPHS125PE40FC42	85015381	G G	125 Hp	1636.8 lb
4WPHS200PE44FC15	85015381	G G	200 Hp	2241.8 lb
4WPHS350HE44FD13	85015381	G G	350 Hp	2813.8 lb
4WPHS150HE44FC25	85015381	H	150 Hp	2175.8 lb
4WPHS150HE44FC15	85015381	G G	150 Hp	2175.8 lb
4WPHS075PE36FC13	85015230	G G	75 Hp	1111 lb
4WPHS250PE44FD46	85015381	G G	250 Hp	2241.8 lb
4WPHS400PE50FE14	85015381	G G	400 Hp	5112.8 lb
4WPHS350PE50FE25	85015381	H	350 Hp	4112.9 lb
4WPHS350PE50FE15	85015381	G G	350 Hp	4112.9 lb

Common to all listed parts

Country or Territory of Origin	China
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P
Service Factor	1.15
Type of Duty	Continuous
