XEX Parts
Compare XEX
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Catalog Number | Power Factor | Rated Efficiency | Motor Frame Size | Product Net Weight |
|---|---|---|---|---|---|

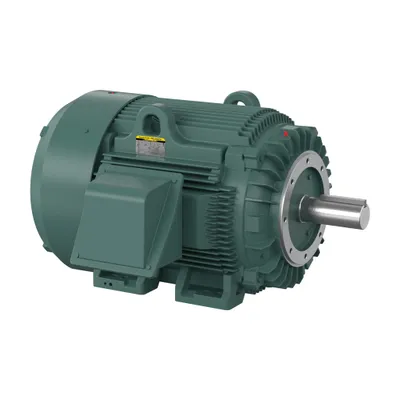

| CECP4400T-4 | CECP4400T-4 | 87 % | 95.40 % | 405TC | 1388 lb |

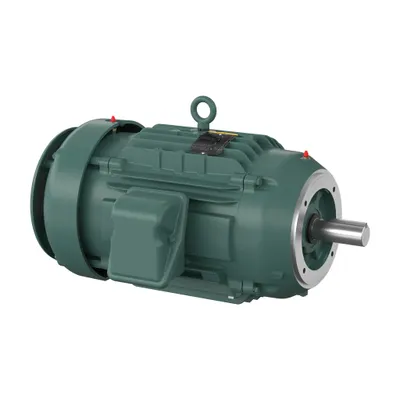

| VECP2332T | VECP2332T | 72 % | 91 % | 256TC | 356 lb |

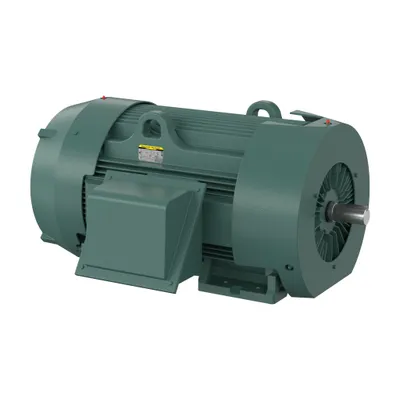

| ECP44252T-4 | ECP44252T-4 | 90 % | 95.80 % | 449TS | 2633 lb |

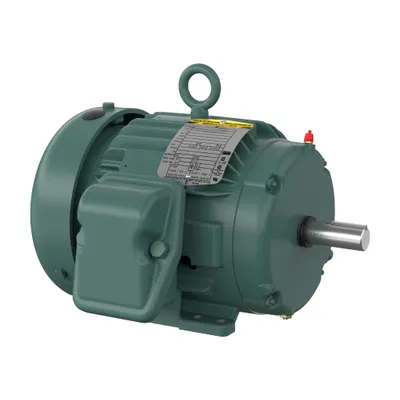

| ECP3586T | ECP3586T | 85 % | 86.50 % | 145T | 74 lb |
| ECP3583T | ECP3583T | 83 % | 85.50 % | 143T | 67 lb |
| ECP3587T | ECP3587T | 75 % | 88.50 % | 145T | 75 lb |
| ECP3584T | ECP3584T | 83 % | 88.50 % | 145T | 69 lb |
| ECP3582T | ECP3582T | 66 % | 82.50 % | 145T | 68 lb |
| ECP3581T | ECP3581T | 69 % | 85.50 % | 143T | 64 lb |

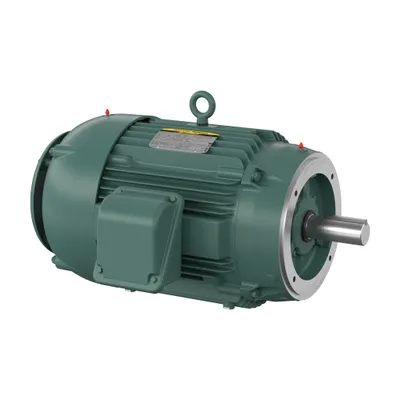

| VECP4111T | VECP4111T | 79 % | 93 % | 324TC | 636 lb |
| ECP3580T | ECP3580T | 82 % | 84 % | 143T | 59 lb |

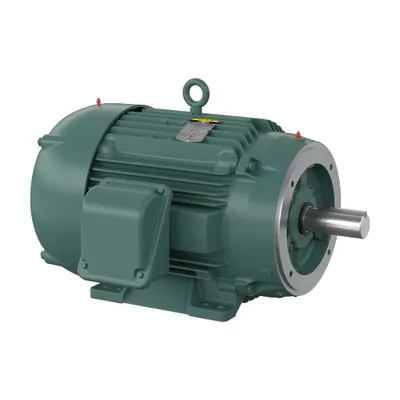

| CECP4117T | CECP4117T | 78 % | 93 % | 326TC | 540 lb |

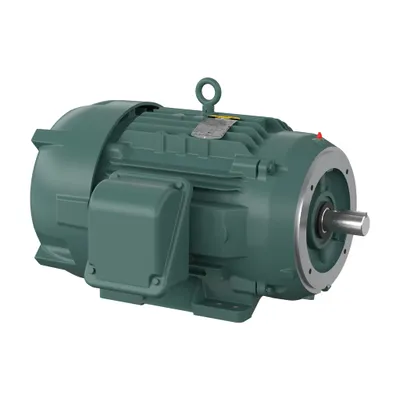

| CECP4107T | CECP4107T | 90 % | 91.70 % | 284TSC | 515 lb |

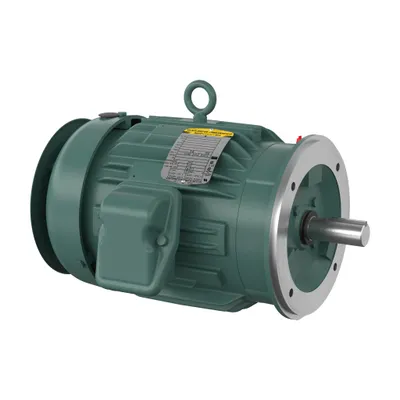

| VECP3660T-4 | VECP3660T-4 | 92 % | 88.50 % | 182TC | 103 lb |
| VECP3581 | VECP3581 | 69 % | 85.50 % | 56C | 66 lb |

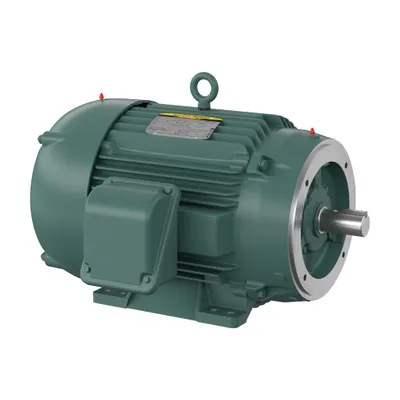

| CECP4109T | CECP4109T | 90 % | 93 % | 324TSC | 571 lb |

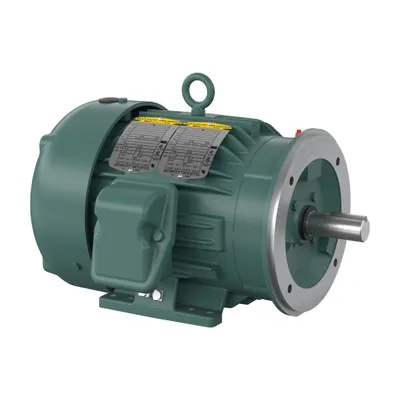

| CECP3661T | CECP3661T | 77 % | 89.50 % | 182TC | 114 lb |

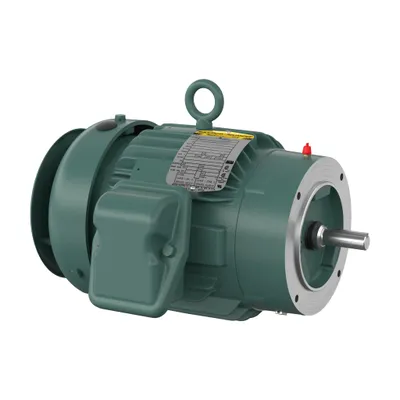

| VECP3581-4 | VECP3581-4 | 72 % | 87.50 % | 56C | 66 lb |

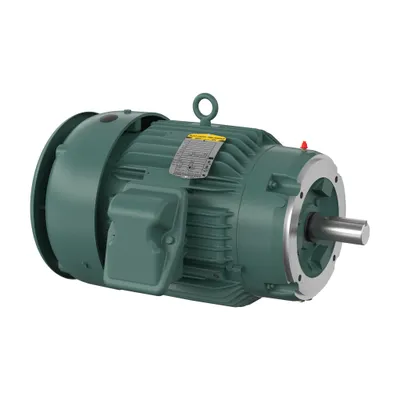

| VECP3770T-4 | VECP3770T-4 | 81 % | 91.70 % | 213TC | 170 lb |

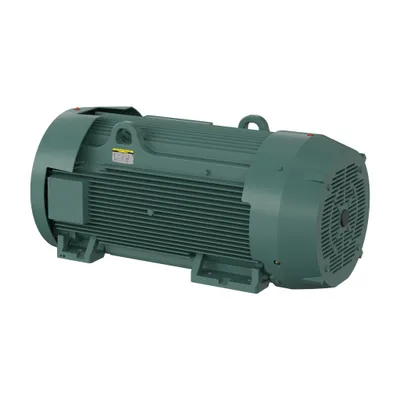

| ECP44402T-4 | ECP44402T-4 | 92 % | 96.20 % | L449TS | 3091 lb |

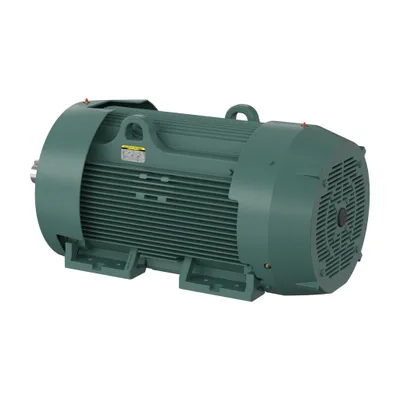

| ECP44256T-4 | ECP44256T-4 | 86 % | 96.20 % | 449T | 3090 lb |
| ECP44206T-4 | ECP44206T-4 | 87 % | 95.80 % | 449T | 3011.001 lb |

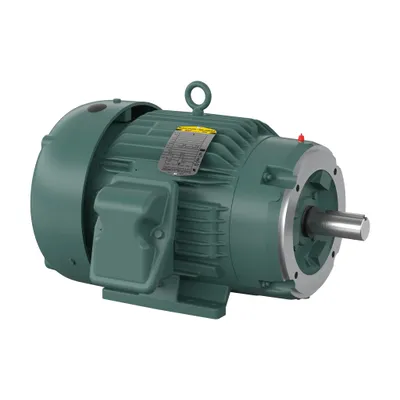

| CECP3764T | CECP3764T | 70 % | 90.20 % | 213TC | 187 lb |
| CECP3774T | CECP3774T | 82 % | 92.40 % | 215TC | 231 lb |
Common to all listed parts
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Insulation Class | F |
| Number of Phases | 3-phase |
