Acti9 C120 Parts
Schneider Electric
A9N18525Miniature circuit breaker (MCB), Acti9 C120H, 4P, 125A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18524Miniature circuit breaker (MCB), Acti9 C120H, 4P, 100A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18523Miniature circuit breaker (MCB), Acti9 C120H, 4P, 80A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18522Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18514Miniature circuit breaker (MCB), Acti9 C120H, 3P, 125A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18513Miniature circuit breaker (MCB), Acti9 C120H, 3P, 100A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18512Miniature circuit breaker (MCB), Acti9 C120H, 3P, 80A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18511Miniature circuit breaker (MCB), Acti9 C120H, 3P, 63A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18503Miniature circuit breaker (MCB), Acti9 C120H, 2P, 125A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18502Miniature circuit breaker (MCB), Acti9 C120H, 2P, 100A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18501Miniature circuit breaker (MCB), Acti9 C120H, 2P, 80A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric

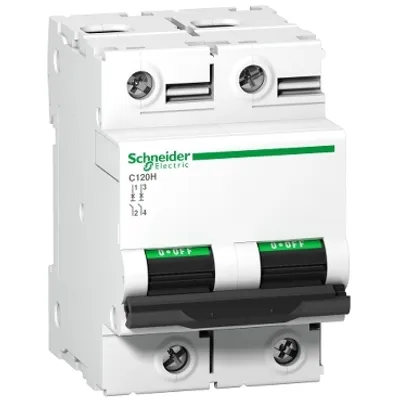

A9N18500Miniature circuit breaker (MCB), Acti9 C120H, 2P, 63A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18492Miniature circuit breaker (MCB), Acti9 C120H, 1P, 125A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric

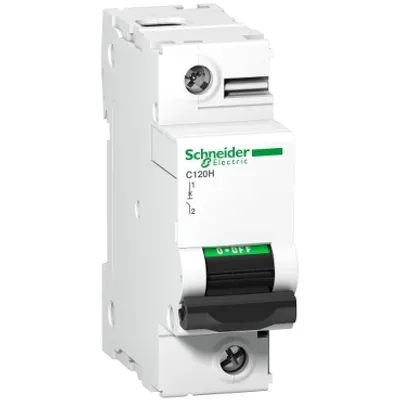

A9N18491Miniature circuit breaker (MCB), Acti9 C120H, 1P, 100A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18490Miniature circuit breaker (MCB), Acti9 C120H, 1P, 80A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18489Miniature circuit breaker (MCB), Acti9 C120H, 1P, 63A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric

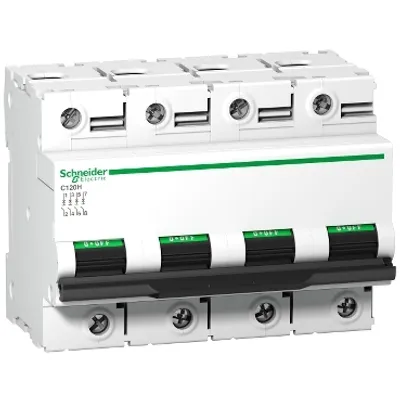

A9N18481Miniature circuit breaker (MCB), Acti9 C120H, 4P, 125A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18480Miniature circuit breaker (MCB), Acti9 C120H, 4P, 100A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18479Miniature circuit breaker (MCB), Acti9 C120H, 4P, 80A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18478Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18470Miniature circuit breaker (MCB), Acti9 C120H, 3P, 125A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric

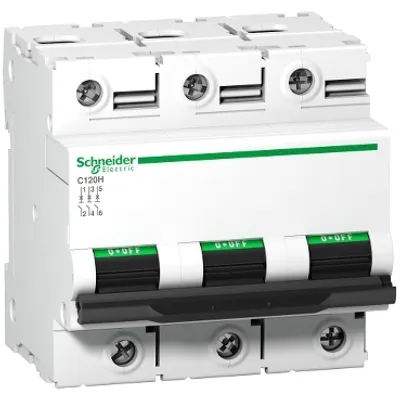

A9N18469Miniature circuit breaker (MCB), Acti9 C120H, 3P, 100A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric
A9N18468Miniature circuit breaker (MCB), Acti9 C120H, 3P, 80A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Compare Acti9 C120
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Poles description | Number of protected poles | [In] rated current | 9 mm pitches | Width |
|---|---|---|---|---|---|

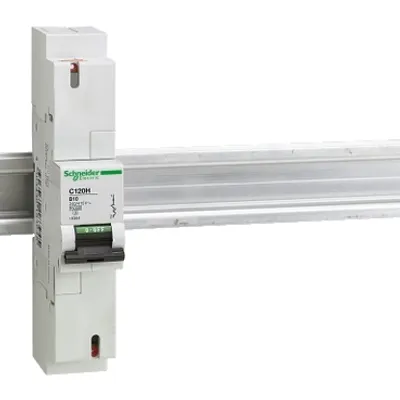

| 18526 | 3P, 2P, 1P, 4P | — | — | — | — |
| A9N18525 | 4P | 4 | 125 A at 30 °C | 12 | 108 mm |
| A9N18524 | 4P | 4 | 100 A at 30 °C | 12 | 108 mm |
| A9N18523 | 4P | 4 | 80 A at 30 °C | 12 | 108 mm |
| A9N18522 | 4P | 4 | 63 A at 30 °C | 12 | 108 mm |
| A9N18514 | 3P | 3 | 125 A at 30 °C | 9 | 81 mm |
| A9N18513 | 3P | 3 | 100 A at 30 °C | 9 | 81 mm |
| A9N18512 | 3P | 3 | 80 A at 30 °C | 9 | 81 mm |
| A9N18511 | 3P | 3 | 63 A at 30 °C | 9 | 81 mm |
| A9N18503 | 2P | 2 | 125 A at 30 °C | 6 | 54 mm |
| A9N18502 | 2P | 2 | 100 A at 30 °C | 6 | 54 mm |
| A9N18501 | 2P | 2 | 80 A at 30 °C | 6 | 54 mm |
| A9N18500 | 2P | 2 | 63 A at 30 °C | 6 | 54 mm |
| A9N18492 | 1P | 1 | 125 A at 30 °C | 3 | 27 mm |
| A9N18491 | 1P | 1 | 100 A at 30 °C | 3 | 27 mm |
| A9N18490 | 1P | 1 | 80 A at 30 °C | 3 | 27 mm |
| A9N18489 | 1P | 1 | 63 A at 30 °C | 3 | 27 mm |
| A9N18481 | 4P | 4 | 125 A at 30 °C | 12 | 108 mm |
| A9N18480 | 4P | 4 | 100 A at 30 °C | 12 | 108 mm |
| A9N18479 | 4P | 4 | 80 A at 30 °C | 12 | 108 mm |
| A9N18478 | 4P | 4 | 63 A at 30 °C | 12 | 108 mm |
| A9N18470 | 3P | 3 | 125 A at 30 °C | 9 | 81 mm |
| A9N18469 | 3P | 3 | 100 A at 30 °C | 9 | 81 mm |
| A9N18468 | 3P | 3 | 80 A at 30 °C | 9 | 81 mm |
