LV HRC Fuse Links Parts

Siemens

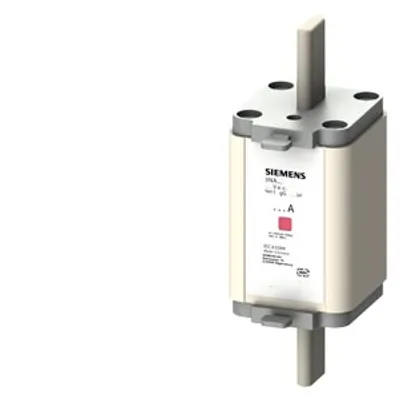

3NA6130-4

LV HRC fuse element, NH1, In: 100 A, gG, Un AC: 400 V

Siemens

3NA3822

LV HRC fuse element, NH000, In: 63 A, gG, Un AC: 500 V

Siemens

3ND2354

LV HRC fuse element, NH3, In: 355 A, aM, Un AC: 690 V

Siemens

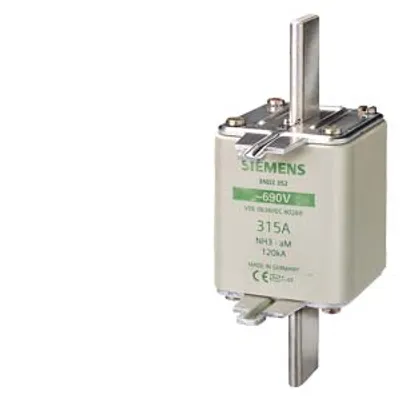

3ND2352

LV HRC fuse element, NH3, In: 315 A, aM, Un AC: 690 V

Siemens

3ND2260

LV HRC fuse element, NH2, In: 400 A, aM, Un AC: 690 V

Siemens

3ND2254

LV HRC fuse element, NH2, In: 355 A, aM, Un AC: 690 V

Siemens

3ND1812

LV HRC fuse element, NH000, In: 32 A, aM, Un AC: 500 V

Siemens

3ND1810

LV HRC fuse element, NH000, In: 25 A, aM, Un AC: 500 V

Siemens

3ND1807

LV HRC fuse element, NH000, In: 20 A, aM, Un AC: 500 V

Siemens

3NA6805-4

LV HRC fuse element, NH000, In: 16 A, gG, Un AC: 400 V

Siemens

3NA6805

LV HRC fuse element, NH000, In: 16 A, gG, Un AC: 500 V

Siemens

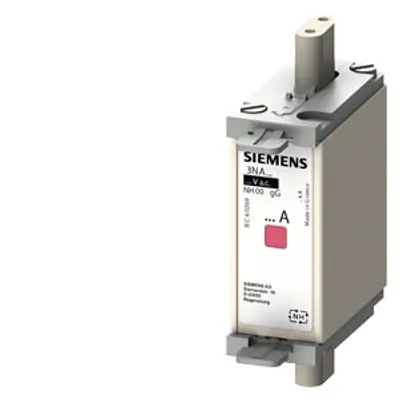

3NA6804-6

LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 690 V

Siemens

3NA6804

LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 500 V

Siemens

3NA6254-4

LV HRC fuse element, NH2, In: 355 A, gG, Un AC: 400 V

Siemens

3NA6254

LV HRC fuse element, NH2, In: 355 A, gG, Un AC: 500 V

Siemens

3NA6252-6

LV HRC fuse element, NH2, In: 315 A, gG, Un AC: 690 V

Siemens

3NA6252-4

LV HRC fuse element, NH2, In: 315 A, gG, Un AC: 400 V

Siemens

3NA6824-7

LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 500 V

Siemens

3NA6824-6

LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 690 V

Siemens

3NA6824-4KK

LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 400 V

Siemens

3NA6824-4

LV HRC fuse element, NH000, In: 80 A, gG, Un AC: 400 V

Siemens

3NA6824

LV HRC fuse element, NH000, In: 80 A, gG, Un AC: 500 V

Siemens

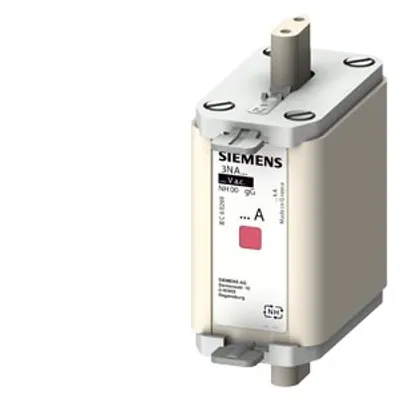

3NA6822-6

LV HRC fuse element, NH00, In: 63 A, gG, Un AC: 690 V

Siemens

3NA6822-4

LV HRC fuse element, NH000, In: 63 A, gG, Un AC: 400 V

Compare LV HRC Fuse Links

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of fuse system according to EN 60269-1	operational current at AC rated value	power loss [W]	power loss [W] for rated value of the current at AC in hot operating state per pole	Net Weight
3NA6130-4	NH1	100 A	9.01 W	9 W	291 g
3NA3822	NH000	63 A	4.6 W	5 W	130 g
3ND2354	NH3	355 A	24.7 W	25 W	662 g
3ND2352	NH3	315 A	22.6 W	23 W	653 g
3ND2260	NH2	400 A	30.8 W	31 W	647 g
3ND2254	NH2	355 A	24.7 W	25 W	663 g
3ND1812	NH000	32 A	1.5 W	2 W	131 g
3ND1810	NH000	25 A	1.2 W	1 W	0.129 kg
3ND1807	NH000	20 A	1 W	1 W	129 g
3NA6805-4	NH000	16 A	2.19 W	2 W	131 g
3NA6805	NH000	16 A	1.7 W	2 W	128 g
3NA6804-6	NH000	4 A	0.95 W	1 W	132 g
3NA6804	NH000	4 A	0.9 W	1 W	131 g
3NA6254-4	NH2	355 A	26.74 W	27 W	658 g
3NA6254	NH2	355 A	26 W	26 W	652 g
3NA6252-6	NH2	315 A	28.1 W	28 W	658 g
3NA6252-4	NH2	315 A	25.07 W	25 W	662 g
3NA6824-7	NH00	80 A	5.8 W	6 W	201 g
3NA6824-6	NH00	80 A	6.94 W	7 W	202 g
3NA6824-4KK	NH00	80 A	5.44 W	5 W	201 g
3NA6824-4	NH000	80 A	5.44 W	5 W	131 g
3NA6824	NH000	80 A	5.8 W	6 W	132 g
3NA6822-6	NH00	63 A	5.42 W	5 W	201 g
3NA6822-4	NH000	63 A	4.36 W	4 W	131 g

Common to all listed parts

product designation	LV HRC fuse link
design of the product	With blade contacts
design of the switching contact	Non-corroding, silver-plated
design of the fuse link	LV HRC fuse link
protection class IP	IP20, with connected conductors
breaking capacity at AC according to IEC 60269 rated value	120 kA
mounting position	Any, preferably vertical
ambient temperature during operation — minimum	-5 °C
