ACS310 Parts

ABB

ACS310-03E-41A8-4

LV AC drive module for pumps and fans, IEC: Pn 18.5 kW

ABB

ACS310-03E-06A2-4

LV AC drive module for pumps and fans, IEC: Pn 2.2 kW

ABB

ACS310-03E-17A2-4

LV AC drive module for pumps and fans, IEC: Pn 7.5 kW

ABB

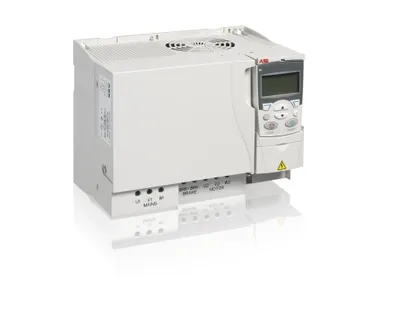

ACS310-03E-48A4-4

LV AC drive module for pumps and fans, IEC: Pn 22 kW

ABB

ACS310-03E-25A4-4

LV AC drive module for pumps and fans, IEC: Pn 11 kW

ABB

ACS310-03E-34A1-4

LV AC drive module for pumps and fans, IEC: Pn 15 kW

ABB

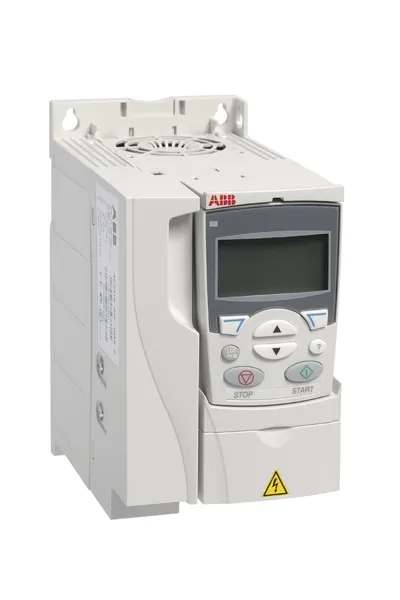

ACS310-03E-10A8-2

LV AC drive module for pumps and fans, IEC: Pn 2.2 kW

ABB

ACS310-03E-09A7-4

LV AC drive module for pumps and fans, IEC: Pn 4 kW

ABB

ACS310-03E-13A8-4

LV AC drive module for pumps and fans, IEC: Pn 5.5 kW

ABB

ACS310-01E-07A5-2

LV AC drive module for pumps and fans, IEC: Pn 1.5 kW

ABB

ACS310-01E-06A7-2

LV AC drive module for pumps and fans, IEC: Pn 1.1 kW

ABB

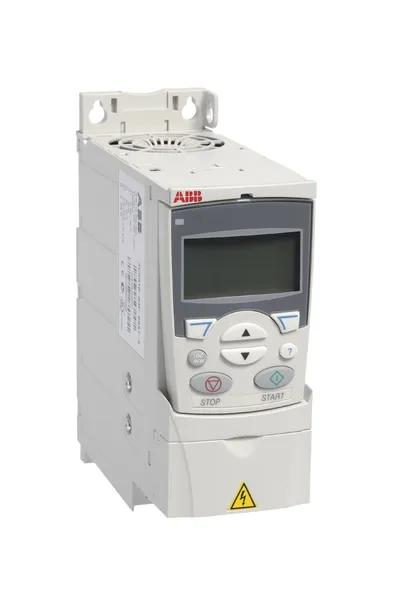

ACS310-01E-04A7-2

LV AC drive module for pumps and fans, IEC: Pn 0.75 kW

ABB

ACS310-03E-05A2-2

LV AC drive module for pumps and fans, IEC: Pn 0.75 kW

ABB

ACS310-03U-34A1-4

LV AC drive module for pumps and fans, IEC: Pn 20 Hp

ABB

ACS310-03U-02A1-4

LV AC drive module for pumps and fans, IEC: Pn 0.75 Hp

ABB

ACS310-03U-03A6-4

LV AC drive module for pumps and fans, IEC: Pn 1.5 Hp

ABB

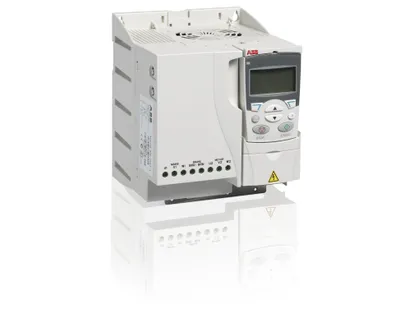

ACS310-03U-17A2-4

LV AC drive module for pumps and fans, IEC: Pn 10 Hp

ABB

ACS310-03U-13A8-4

LV AC drive module for pumps and fans, IEC: Pn 7.5 Hp

ABB

ACS310-03U-09A7-4

LV AC drive module for pumps and fans, IEC: Pn 5 Hp

ABB

ACS310-03U-01A3-4

LV AC drive module for pumps and fans, IEC: Pn 0.5 Hp

ABB

ACS310-03U-02A6-4

LV AC drive module for pumps and fans, IEC: Pn 1 Hp

ABB

ACS310-03E-04A5-4

LV AC drive module for pumps and fans, IEC: Pn 1.5 kW

ABB

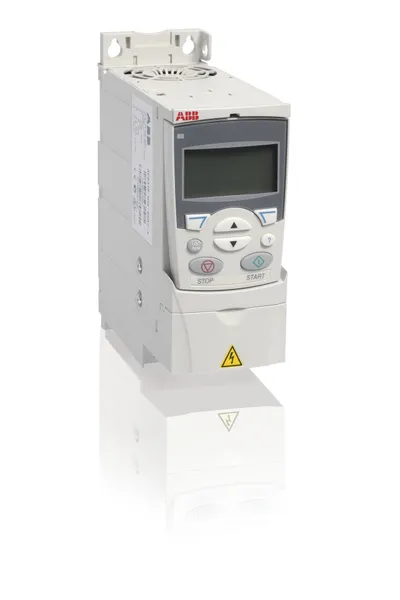

ACS310-03E-01A3-4

LV AC drive module for pumps and fans, IEC: Pn 0.37 kW

ABB

ACS310-03E-02A6-4

LV AC drive module for pumps and fans, IEC: Pn 0.75 kW

Compare ACS310

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Output Current, Normal Use (In)	Output Current, Light-Overload Use (ILD)	Output Power, Normal Use (Pn)	Power Consumption (@Pcons)	Apparent Power Output
ACS310-03E-41A8-4	41.8 A A	38 A A	18.5 kW kW	640 W W	29 kV·A A
ACS310-03E-06A2-4	6.2 A A	5.6 A A	2.2 kW kW	92 W W	4.3 kV·A A
ACS310-03E-17A2-4	17.2 A A	15.6 A A	7.5 kW kW	256 W W	12 kV·A A
ACS310-03E-48A4-4	48.4 A A	44 A A	22 kW kW	710 W W	34 kV·A A
ACS310-03E-25A4-4	25.4 A A	23.1 A A	11 kW kW	390 W W	18 kV·A A
ACS310-03E-34A1-4	34.1 A A	31 A A	15 kW kW	475 W W	24 kV·A A
ACS310-03E-10A8-2	10.8 A A	9.8 A A	2.2 kW kW	110 W W	4.3 kV·A A
ACS310-03E-09A7-4	9.7 A A	8.8 A A	4 kW kW	143 W W	6.7 kV·A A
ACS310-03E-13A8-4	13.8 A A	12.5 A A	5.5 kW kW	195 W W	9.6 kV·A A
ACS310-01E-07A5-2	7.5 A A	7.2 A A	1.5 kW kW	78 W W	3.0 kV·A A
ACS310-01E-06A7-2	6.7 A A	6.5 A A	1.1 kW kW	74 W W	2.7 kV·A A
ACS310-01E-04A7-2	4.7 A A	4.5 A A	0.75 kW kW	52 W W	1.9 kV·A A
ACS310-03E-05A2-2	5.2 A A	4.7 A A	0.75 kW kW	59 W W	2.1 kV·A A
ACS310-03U-34A1-4	34.1 A A	—	20 Hp	—	28 kV·A A
ACS310-03U-02A1-4	2.1 A A	—	0.75 Hp	—	1.7 kV·A A
ACS310-03U-03A6-4	3.6 A A	—	1.5 Hp	—	3.0 kV·A A
ACS310-03U-17A2-4	17.2 A A	—	10 Hp	—	14 kV·A A
ACS310-03U-13A8-4	13.8 A A	—	7.5 Hp	—	11 kV·A A
ACS310-03U-09A7-4	9.7 A A	—	5 Hp	—	8.1 kV·A A
ACS310-03U-01A3-4	1.3 A A	—	0.5 Hp	—	1.1 kV·A A
ACS310-03U-02A6-4	2.6 A A	—	1 Hp	—	2.2 kV·A A
ACS310-03E-04A5-4	4.5 A A	4.1 A A	1.5 kW kW	63 W W	3.1 kV·A A
ACS310-03E-01A3-4	1.3 A A	1.2 A A	0.37 kW kW	21 W W	0.9 kV·A A
ACS310-03E-02A6-4	2.6 A A	2.4 A A	0.75 kW kW	38 W W	1.8 kV·A A

Common to all listed parts

Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Degree of Protection	IP20
Frequency (f)	50/60 Hz Hz
Efficiency Level	IE2
