ACS480 Parts

ABB

LV AC general purpose drive module, IEC: Pn 22 kW, 45 A

ABB

LV AC general purpose drive module, IEC: Pn 2.2 kW, 5.6 A

ABB

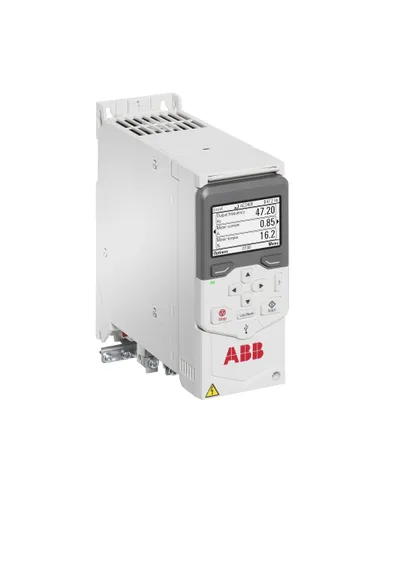

LV AC general purpose drive module, IEC: Pn 1.1 kW, 3.3 A

ABB

LV AC general purpose drive module, IEC: Pn 0.75 kW, 2.6 A

ABB

LV AC general purpose drive module, IEC: Pn 3 kW, 7.2 A

ABB

LV AC general purpose drive module, IEC: Pn 1.5 kW, 4 A

ABB

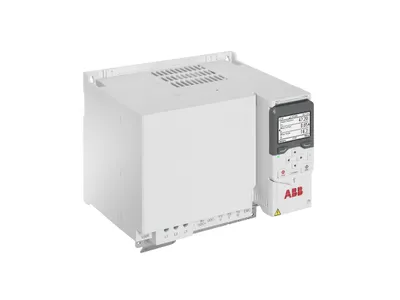

LV AC general purpose drive module, IEC: Pn 22 kW, 50 A

ABB

LV AC general purpose drive module, IEC: Pn 4 kW, 9.4 A

ABB

LV AC general purpose drive module, IEC: Pn 18.5 kW, 38 A

ABB

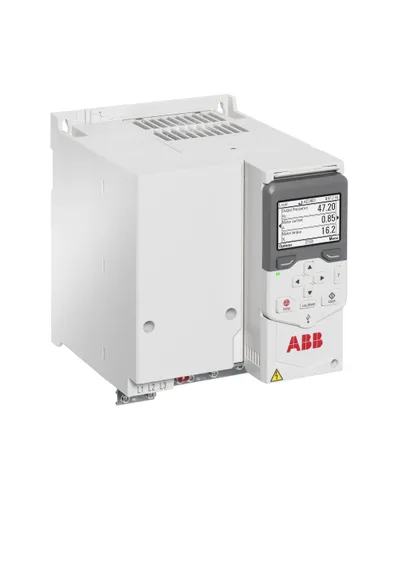

LV AC general purpose drive module, IEC: Pn 11 kW, 25 A

ABB

LV AC general purpose drive module, IEC: Pn 7.5 kW, 17 A

ABB

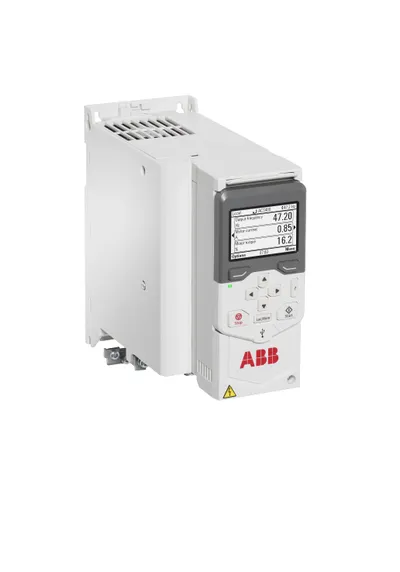

LV AC general purpose drive module, IEC: Pn 5.5 kW, 12.6 A

ABB

LV AC general purpose drive module, IEC: Pn 15 kW, 32 A

Compare ACS480

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Output Current, Normal Use (In)	Output Current, Light-Overload Use (ILD)	Output Current, Heavy-Duty Use (IHD)	Output Power, Heavy-Duty Use (PHD)	Power Consumption (@Pcons)
ACS480-04-046A-4	45 A A	42.8 A A	38.0 A A	18.5 kW kW	582 W W
ACS480-04-05A7-4	5.6 A A	5.3 A A	4.0 A A	1.5 kW kW	91 W W
ACS480-04-03A4-4	3.3 A A	3.1 A A	2.6 A A	0.75 kW kW	55 W W
ACS480-04-02A7-4	2.6 A A	2.5 A A	1.8 A A	0.55 kW kW	44 W W
ACS480-04-07A3-4	7.2 A A	6.8 A A	5.6 A A	2.2 kW kW	100 W W
ACS480-04-04A1-4	4 A A	3.8 A A	3.3 A A	1.1 kW kW	62 W W
ACS480-04-050A-4	50 A A	48.0 A A	45.0 A A	22.0 kW kW	672 W W
ACS480-04-09A5-4	9.4 A A	8.9 A A	7.2 A A	3.0 kW kW	140 W W
ACS480-04-039A-4	38 A A	36.0 A A	32.0 A A	15.0 kW kW	497 W W
ACS480-04-026A-4	25 A A	23.8 A A	17.0 A A	7.5 kW kW	390 W W
ACS480-04-018A-4	17 A A	16.2 A A	12.6 A A	5.5 kW kW	259 W W
ACS480-04-12A7-4	12.6 A A	12.0 A A	9.4 A A	4.0 kW kW	165 W W
ACS480-04-033A-4	32 A A	30.5 A A	25.0 A A	11.0 kW kW	396 W W
