Contrast sensors Parts
Compare Contrast sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Series | Dimension | Light spot size | Approval/Conformity |
|---|---|---|---|---|---|
| BKT0006 | BKT 67M-006-U-S92 | 67M | 32 x 64 x 82 mm | 5 x 1.5 mm at 9 mm | CE UKCA cULus WEEE |

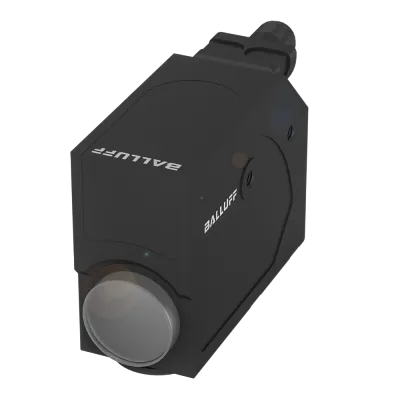

| BKT0005 | BKT 67M-005-U-S92 | 67M | 32 x 64 x 82 mm | 1.5 x 5 mm at 9 mm | CE UKCA cULus WEEE |

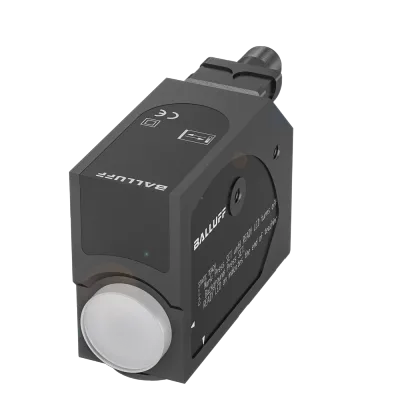

| BKT0004 | BKT 67M-004-U-S92 | 67M | 32 x 64 x 82 mm | 5 x 1.5 mm at 9 mm | CE UKCA cULus WEEE |
| BKT0003 | BKT 67M-003-U-S92 | 67M | 32 x 64 x 82 mm | 1.5 x 5 mm at 9 mm | CE UKCA cULus WEEE |

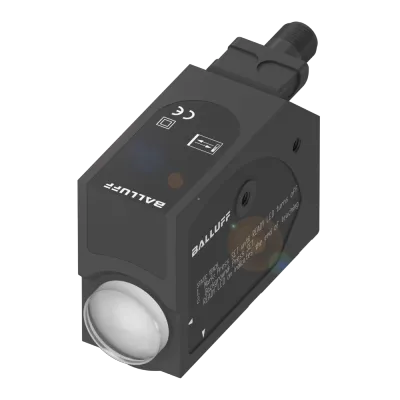

| BKT0002 | BKT 67M-002-U-S92 | 67M | 32 x 64 x 82 mm | 5 x 1.5 mm at 9 mm | CE UKCA cULus WEEE |
| BKT0001 | BKT 67M-001-U-S92 | 67M | 32 x 64 x 82 mm | 1.5 x 5 mm at 9 mm | CE UKCA cULus WEEE |
| BKT000W | BKT 21M-002-N-S4 | 21M | 12 x 50 x 42.5 mm | Ø 3.5 mm at 19 mm | cULus CE EAC WEEE |

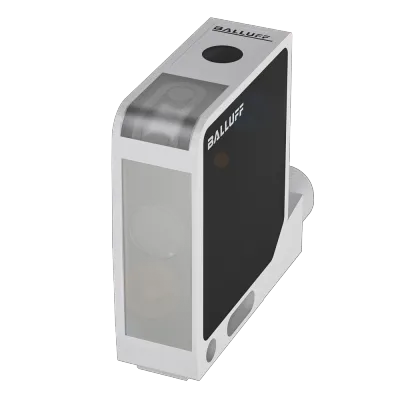

| BKT000Y | BKT 21M-002-P-S4 | 21M | 12 x 50 x 42.5 mm | Ø 3.5 mm at 19 mm | cULus CE UKCA WEEE |
| BKT000R | BKT M-45-U-S4 | M | 31 x 97.8 x 62.3 mm | — | CE WEEE |

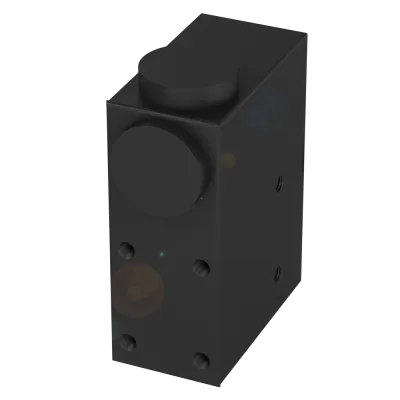

| BKT000N | BKT M-15C-U-S4 | M | 31 x 97.8 x 62.3 mm | Ø 3 mm at 9 mm | CE UKCA WEEE |

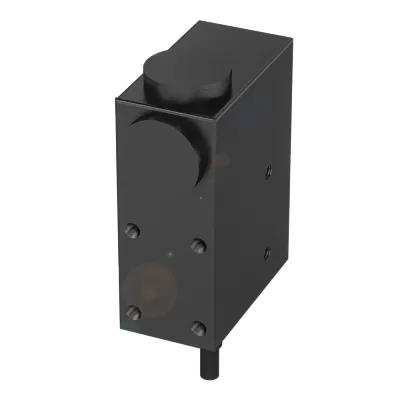

| BKT000U | BKT M-71-U-03 | M | 31 x 105.3 x 62.3 mm | 1.5 x 5 mm at 9 mm | CE UKCA WEEE |
| O5K500 | — | — | — | — | — |
| BKT000T | BKT M-52-U-03 | M | 31 x 105.3 x 62.3 mm | — | CE WEEE |
