Modicon Networking Parts

Schneider Electric

MCSEAAF1LFT00

Copper SFP module for Ethernet Switch - 10/100 BASE - TX/RJ45

Schneider Electric

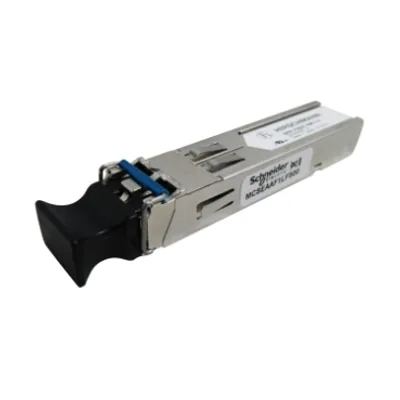

MCSEAAF1LFS00

Fiber optic adaptor, Modicon Networking, SFP module, for Ethernet switch, 100 BASE-SX, single mode

Schneider Electric

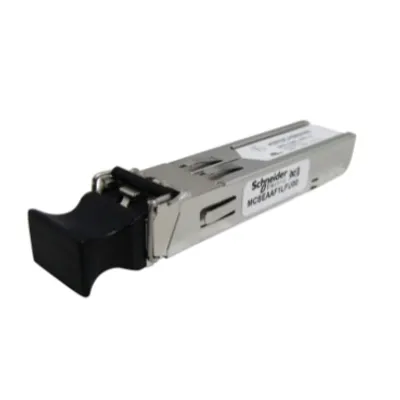

MCSEAAF1LFU00

Fiber optic adaptor, Modicon Networking, SFP module, for Ethernet switch, 100 BASE-SX, multimode

Schneider Electric

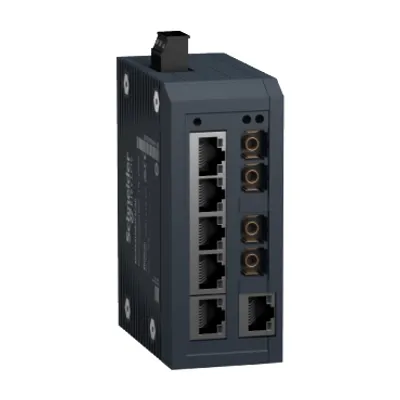

MCSESU083F2CS0

Network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

Schneider Electric

MCSESU083F2CU0

Network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

Schneider Electric

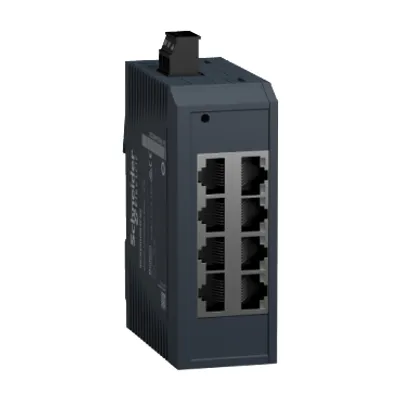

MCSESU083FN0

Network switch, Modicon Networking, standard unmanaged, 8 ports for copper

Schneider Electric

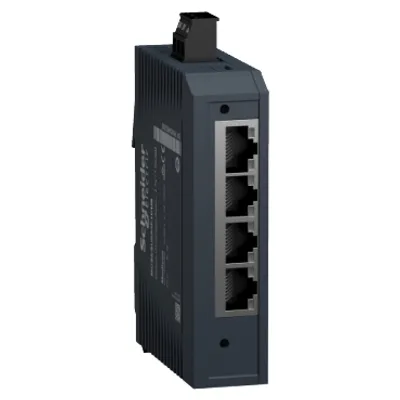

MCSESU053F1CU0

Network switch, Modicon networking, standard unmanaged, 4 ports for copper with 1 port for multimode fiber optic

Schneider Electric

MCSESU053FN0

Network switch, Modicon Networking, standard unmanaged, 5 ports for copper

Schneider Electric

MCSESM103F2CS1H

Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic single-mode - Harsh

Schneider Electric

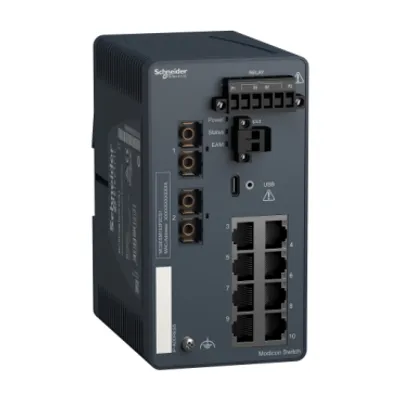

MCSESM103F2CS1

Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic single-mode

Schneider Electric

MCSESM103F2CU1H

Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode - Harsh

Schneider Electric

MCSESM103F2CU1

Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode

Schneider Electric

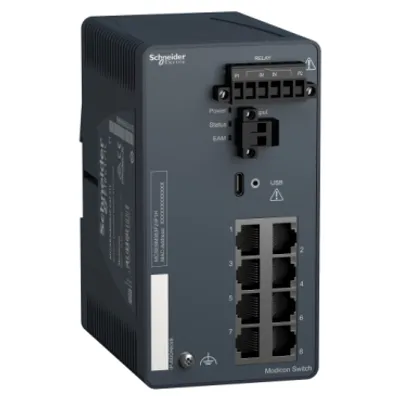

MCSESM083F23F1H

Modicon Extended Managed Switch - 8 ports for copper - Harsh

Schneider Electric

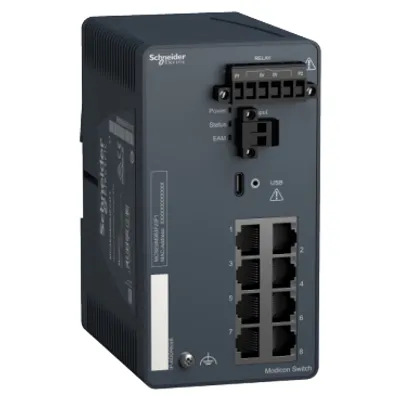

MCSESM083F23F1

Modicon Extended Managed Switch, 8 ports for copper

Schneider Electric

MCSESM243F4LG0

Network switch, Modicon Networking, managed, 20 ports for copper with 4Gigabit SFP

Schneider Electric

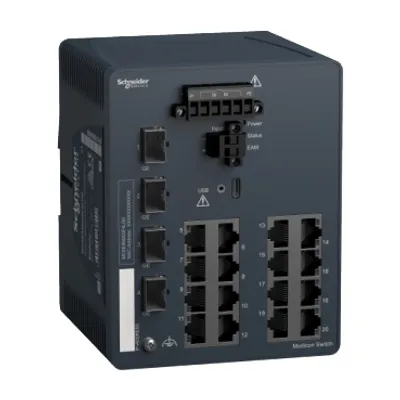

MCSESM203F4LG0

Network switch, Modicon Networking, managed, 16 ports for copper with 4Gigabit SFP

Schneider Electric

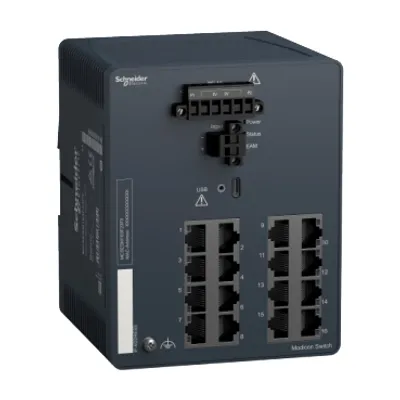

MCSESM163F23F0

Network switch, Modicon Networking, managed, 16 ports for copper

Schneider Electric

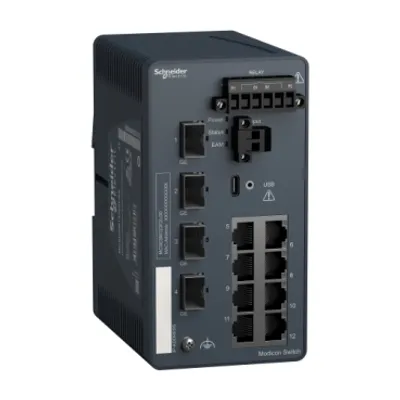

MCSESM123F2LG0

Network switch, Modicon Networking, managed, 8 ports for copper with 4Gigabit SFP

Schneider Electric

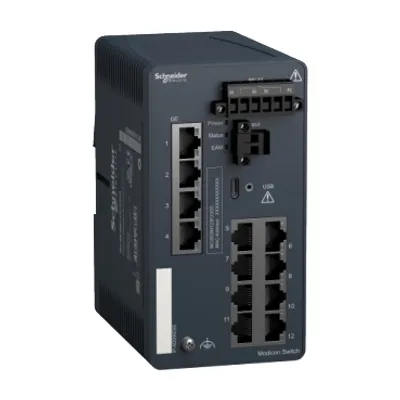

MCSESM123F23G0

Modicon Managed Switch - 8 ports for copper + 4 Gigabit ports for copper

Schneider Electric

MCSESM103F2CS0H

Modicon Managed Switch - 8 ports for copper + 2 ports for fiber optic single-mode - Harsh

Schneider Electric

MCSESM103F2CS0

Network switch, Modicon Networking, managed, 8 ports for copper with 2 ports for fiber optic, singlemode

Schneider Electric

MCSESM103F2CU0H

Network switch, Modicon Networking, managed, 8 ports for copper with 2 ports for fiber optic, multimode, harsh

Schneider Electric

MCSESM103F2CU0

Network switch, Modicon Networking, managed, 8 ports for copper with 2 ports for fiber optic, multimode

Schneider Electric

MCSESM093F1CS0

Modicon Managed Switch - 8 ports for copper + 1 port for fiber optic single-mode

Compare Modicon Networking

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Depth	Width	Height	Net weight	Power consumption in W
MCSEAAF1LFT00	70 mm	14 mm	14 mm	0.04 kg	—
MCSEAAF1LFS00	50 mm	20 mm	18 mm	0.041 kg	—
MCSEAAF1LFU00	50 mm	20 mm	18 mm	0.04 kg	—
MCSESU083F2CS0	88 mm	45 mm	110 mm	0.235 kg	3.8 W
MCSESU083F2CU0	88 mm	45 mm	110 mm	0.235 kg	3.8 W
MCSESU083FN0	79 mm	38 mm	102 mm	0.15 kg	1.5 W
MCSESU053F1CU0	79 mm	26 mm	102 mm	0.13 kg	2.4 W
MCSESU053FN0	79 mm	26 mm	102 mm	0.125 kg	1.3 W
MCSESM103F2CS1H	117.6 mm	73 mm	142.8 mm	0.57 kg	8 W
MCSESM103F2CS1	117.6 mm	73 mm	142.8 mm	0.50 kg	8 W
MCSESM103F2CU1H	117.6 mm	73 mm	142.8 mm	0.57 kg	8 W
MCSESM103F2CU1	117.6 mm	73 mm	142.8 mm	0.50 kg	8 W
MCSESM083F23F1H	117.6 mm	73 mm	142.8 mm	0.50 kg	6 W
MCSESM083F23F1	117.6 mm	73 mm	142.8 mm	0.42 kg	6 W
MCSESM243F4LG0	117.6 mm	108.8 mm	142.8 mm	1.05 kg	16 W
MCSESM203F4LG0	117.6 mm	108.8 mm	142.8 mm	0.95 kg	15 W
MCSESM163F23F0	117.6 mm	108.8 mm	142.8 mm	0.88 kg	10 W
MCSESM123F2LG0	117.6 mm	73 mm	142.8 mm	0.57 kg	9 W
MCSESM123F23G0	117.6 mm	73 mm	142.8 mm	0.50 kg	9 W
MCSESM103F2CS0H	117.6 mm	73 mm	142.8 mm	0.57 kg	8 W
MCSESM103F2CS0	117.6 mm	73 mm	142.8 mm	0.50 kg	8 W
MCSESM103F2CU0H	117.6 mm	73 mm	142.8 mm	0.57 kg	8 W
MCSESM103F2CU0	117.6 mm	73 mm	142.8 mm	0.50 kg	8 W
MCSESM093F1CS0	117.6 mm	73 mm	142.8 mm	0.50 kg	7 W

Common to all listed parts

Range of product

Modicon Networking
