SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RV2011-1KA10-0BA0 | 12.5 A | 325.6 g | 9 ... 12.5 A | 12.5 A | 163 A |
| 3RV2011-1KA10-Z X95 | 12.5 A | 322.6 g | 9 ... 12.5 A | 12.5 A | 163 A |
| 3RV2011-1KA10-Z W97 | 12.5 A | 322.6 g | 9 ... 12.5 A | 12.5 A | 163 A |
| 3RV2011-0AA10-Z W97 | 0.16 A | 252.6 g | 0.11 ... 0.16 A | 0.16 A | 2.1 A |
| 3RV2011-0AA10 | 0.16 A | 252.6 g | 0.11 ... 0.16 A | 0.16 A | 2.1 A |

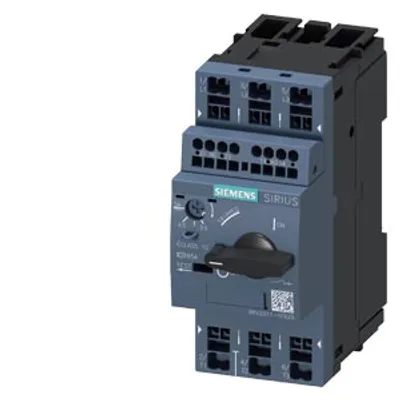

| 3RV2011-1FA25-Z X95 | 5 A | 355.6 g | 3.5 ... 5 A | 5 A | 65 A |
| 3RV2011-1FA25-Z W96 | 5 A | 355.6 g | 3.5 ... 5 A | 5 A | 65 A |

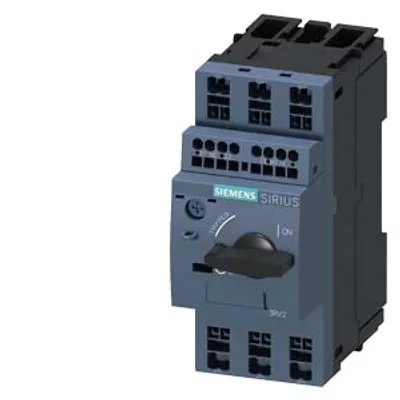

| 3RV2011-1FA25 | 5 A | 355.6 g | 3.5 ... 5 A | 5 A | 65 A |
| 3RV2011-1FA20-Z X95 | 5 A | 344.6 g | 3.5 ... 5 A | 5 A | 65 A |
| 3RV2011-1FA20-Z W97 | 5 A | 344.6 g | 3.5 ... 5 A | 5 A | 65 A |
| 3RV2011-1FA20-Z W96 | 5 A | 344.6 g | 3.5 ... 5 A | 5 A | 65 A |

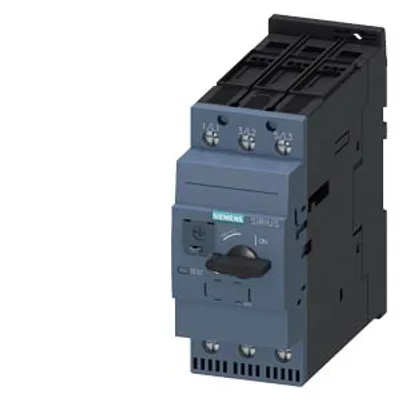

| 3RV2431-4VA10 | 45 A | 1.156 kg | 35 ... 45 A | 45 A | 922 A |

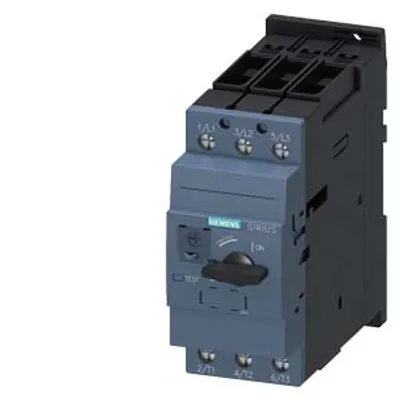

| 3RV2431-4UA10 | 40 A | 1.046 kg | 32 ... 40 A | 40 A | 820 A |
| 3RV2431-4TA10 | 17 A | 1.052 kg | 12 ... 17 A | 17 A | 410 A |
| 3RV2421-1KA10 | 12.5 A | 0.335 kg | 9 ... 12.5 A | 12.5 A | 260 A |
| 3RV2421-1JA10 | 10 A | 338.6 g | 7 ... 10 A | 10 A | 208 A |
| 3RV2421-1HA10 | 8 A | 0.329 kg | 5.5 ... 8 A | 8 A | 163 A |

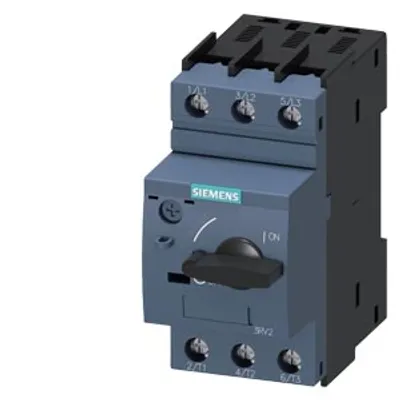

| 3RV2421-1GA10 | 6.3 A | 0.333 kg | 4.5 ... 6.3 A | 6.3 A | 130 A |
| 3RV2421-1FA10 | 5 A | 329.6 g | 3.5 ... 5 A | 5 A | 104 A |
| 3RV2421-1EA10 | 4 A | 325.6 g | 2.8 ... 4 A | 4 A | 82 A |
| 3RV2111-4AA10 | 16 A | 397.58 g | 10 ... 16 A | 16 A | 208 A |
| 3RV2111-1KA10 | 12.5 A | 377.58 g | 9 ... 12.5 A | 12.5 A | 163 A |

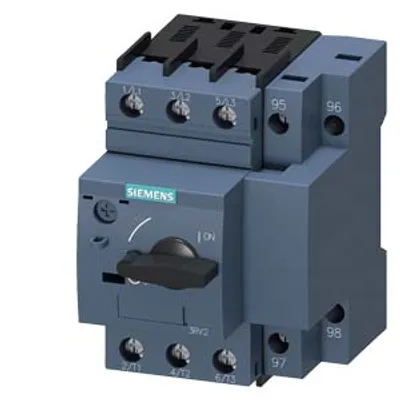

| 3RV2111-1JA10 | 10 A | 392.58 g | 7 ... 10 A | 10 A | 130 A |
| 3RV2111-1HA10 | 8 A | 388.58 g | 5.5 ... 8 A | 8 A | 104 A |
Common to all listed parts
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
