Workpiece pallet WT 1/K Parts

Showing 1–3 of 3 parts
Bosch Rexroth 3842527122 – WORKPIECE PALLET WT 1/K-80 KPL
Bosch Rexroth
3842527122

WORKPIECE PALLET WT 1/K-80 KPL

Bosch Rexroth 3842527124 – WORKPIECE PALLET WT 1/K-160 KPL
Bosch Rexroth
3842527124

WORKPIECE PALLET WT 1/K-160 KPL

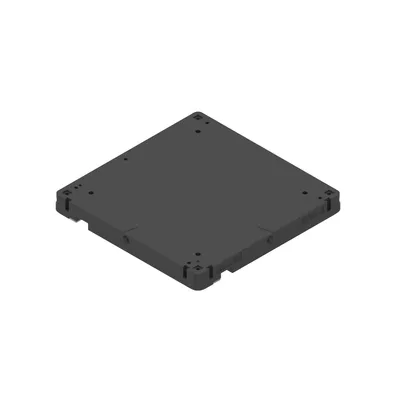

Bosch Rexroth 3842527123 – WORKPIECE PALLET WT 1/K-120 KPL
Bosch Rexroth
3842527123

WORKPIECE PALLET WT 1/K-120 KPL

Compare Workpiece pallet WT 1/K

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNDimension [a] [mm]Dimension [c] [mm]Dimension b [mm]Workpiece pallet length [lWT] [mm]Weight workpiece pallet [mWT] [kg]
3842527122801938800.075
3842527124160591181600.225
384252712312039781200.135

Common to all listed parts

ESDYes
Dry room [%rF]<1
Flatness [mm]0.5
Scope of deliveryWorkpiece pallet, complete
Delivery informationFully assembled
Material informationWear pad: Polyamide (PA 66)
MaterialPA 66
Clean room classificationISO class 7
