Bracket Parts
Compare Bracket
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

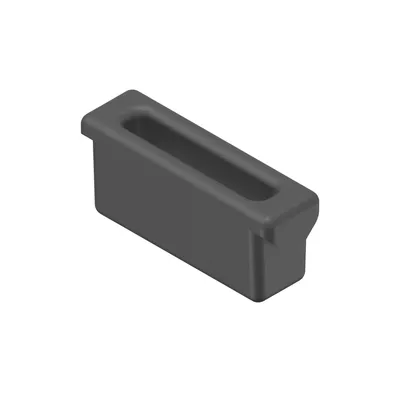

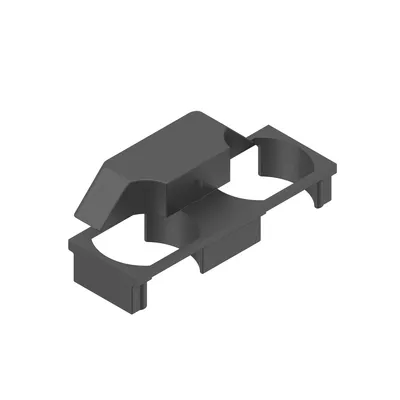

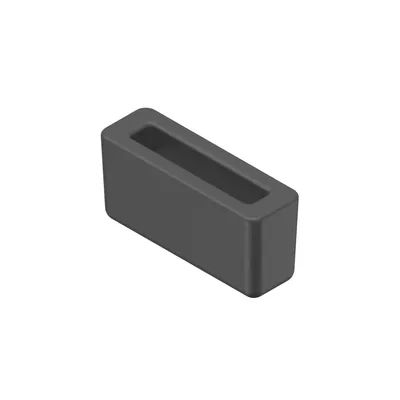

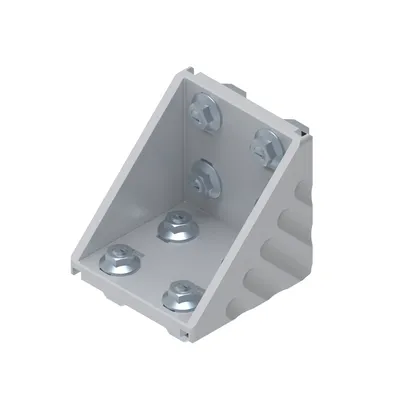

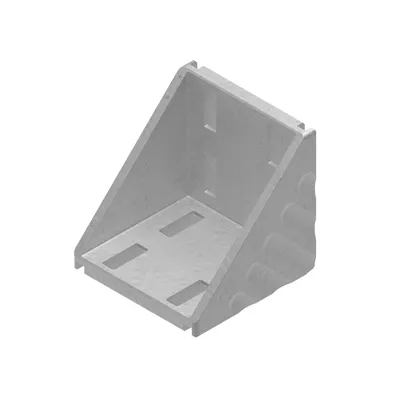

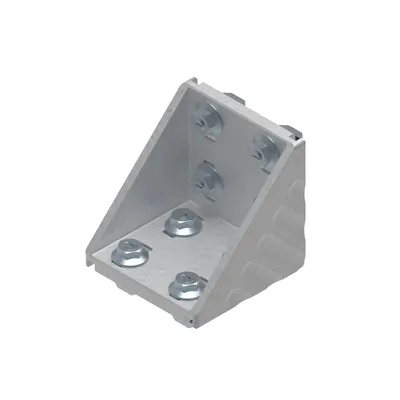

| MPN | Dimensions | Weight [kg] | Bending moment 1 [Nm] | Bending moment 2 [Nm] | Torsional moment [Nm] |
|---|---|---|---|---|---|
| 3842523593 | 45x45 | 0.01 | — | — | — |
| 3842523537 | — | 0.01 | — | — | — |
| 3842523516 | — | 0.01 | — | — | — |
| 3842551613 | 90x90 | 0.52 | 370.0 | 800.0 | 200 |
| 3842523578 | 90x90 | 0.51 | 370.0 | 800.0 | 200 |
| 3842523575 | 90x90 | 0.31 | 370.0 | 800.0 | 200 |

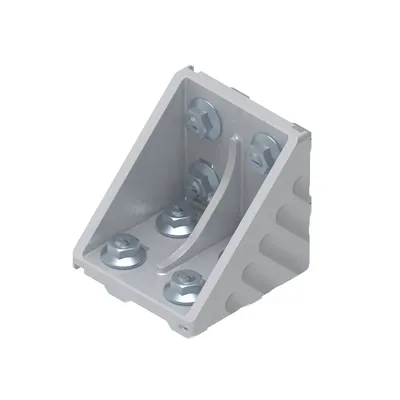

| 3842551612 | 80x80 | 0.46 | 500.0 | 1000.0 | 400 |

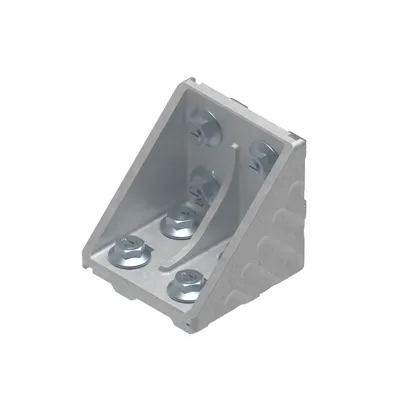

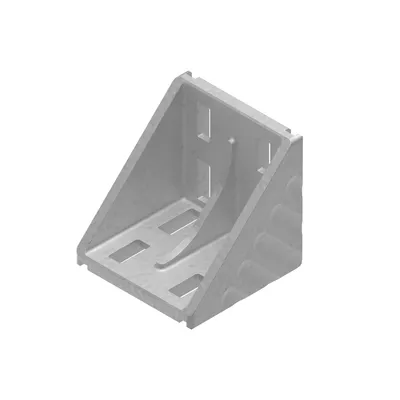

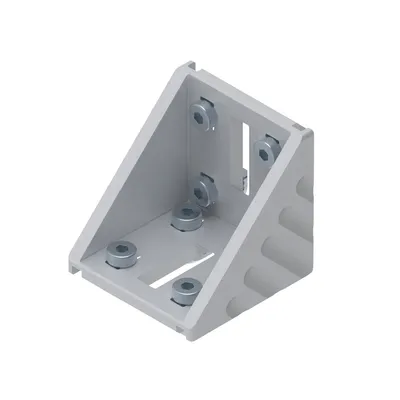

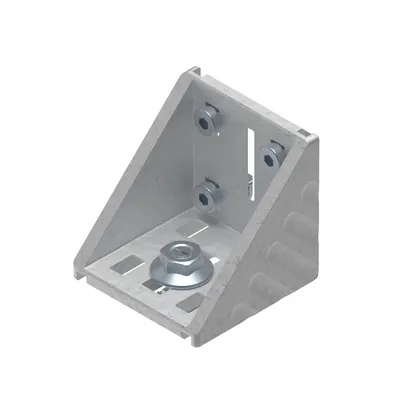

| 3842530360 | 80x80 | 0.44 | 500.0 | 1000.0 | 400 |
| 3842530231 | 80x80 | 0.25 | 500.0 | 1000.0 | 400 |
| 3842551609 | 60x60 | 0.18 | 320.0 | 370.0 | 110 |
| 3842523549 | 60x60 | 0.18 | 320.0 | 370.0 | 110 |

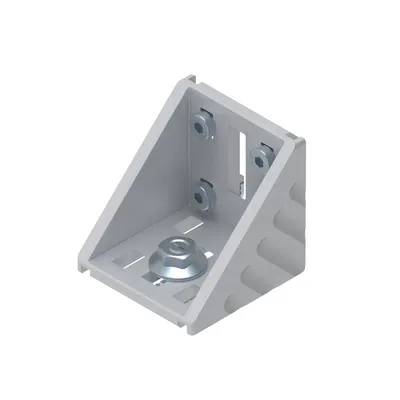

| 3842551610 | 60x60 | 0.17 | 320.0 | 370.0 | 110 |
| 3842523551 | 60x60 | 0.16 | 320.0 | 370.0 | 110 |

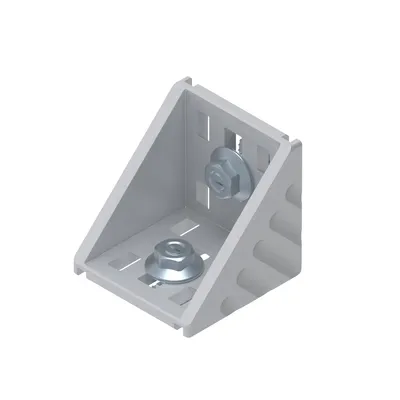

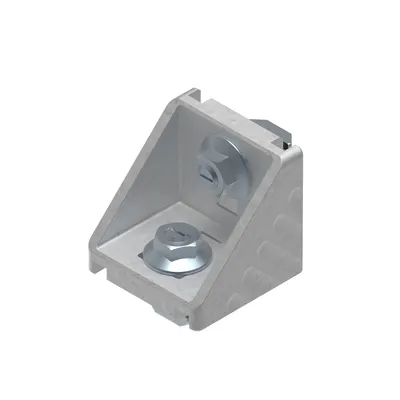

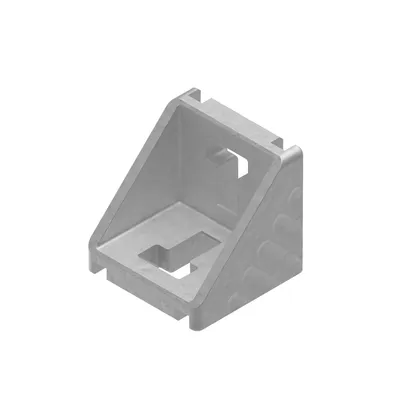

| 3842551611 | 60x60 | 0.16 | 125.0 | 150.0 | — |
| 3842523553 | 60x60 | 0.16 | 125.0 | 150.0 | — |
| 3842523546 | 60x60 | 0.11 | 320.0 | 370.0 | 110 |
| 3842530259 | 50x50 | 0.12 | 125.0 | 250.0 | 38 |
| 3842530381 | 50x50 | 0.09 | 125.0 | 250.0 | 38 |
| 3842530260 | 50x100 | 0.31 | 300.0 | 600.0 | 73 |
| 3842530382 | 50x100 | 0.22 | 300.0 | 600.0 | 73 |

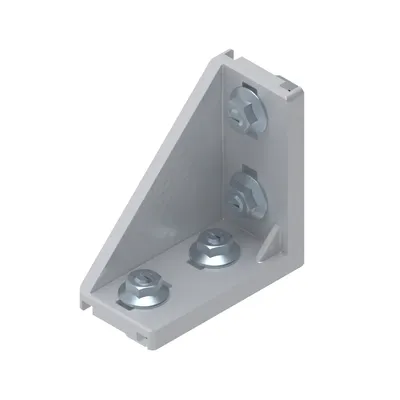

| 3842551607 | 45x90 | 0.28 | 180.0 | 400.0 | 60 |
| 3842523570 | 45x90 | 0.27 | 180.0 | 400.0 | 60 |

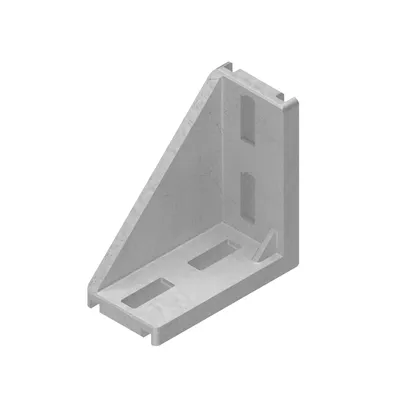

| 3842523567 | 45x90 | 0.18 | 180.0 | 400.0 | 60 |

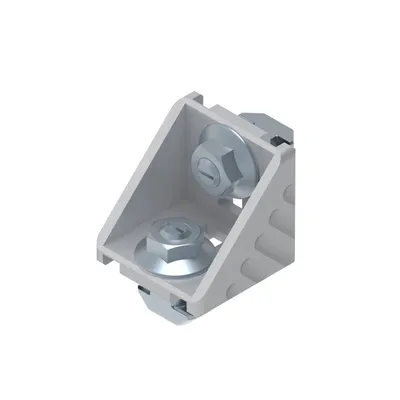

| 3842551606 | 45x45 | 0.12 | 60.0 | 160.0 | — |
