Sliding block, sliding block profile Parts
Compare Sliding block, sliding block profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Thread size | Dimension h1 [mm] | Dimension h [mm] | Length [l] [mm] | Weight [kg] |
|---|---|---|---|---|---|

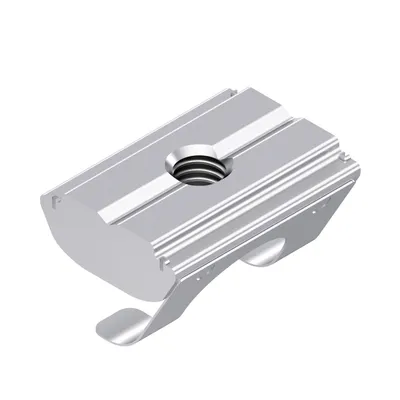

| 3842529294 | M4 | 1 | 4.8 | 16 | 0.01 |

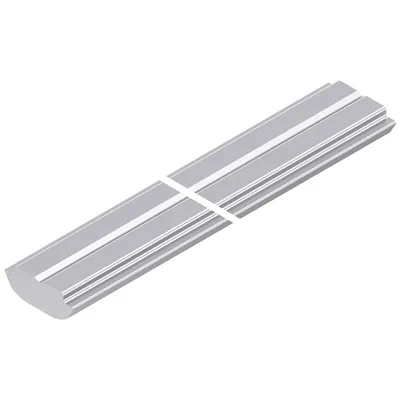

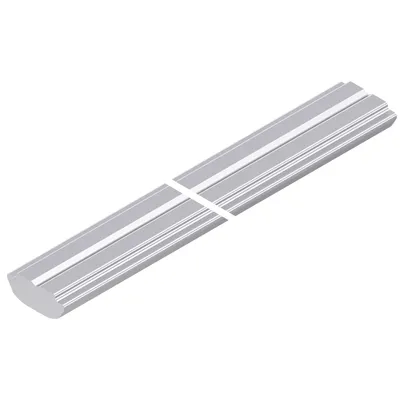

| 3842529327 | — | 1 | 4.8 | 1000 | 0.35 |
| 3842529325 | — | 1.5 | 5.3 | 1000 | 0.45 |

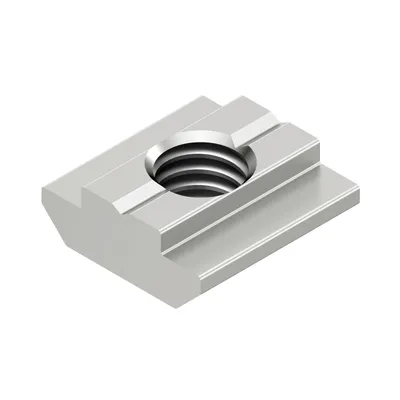

| 3842547814 | M8 | 2 | 6 | 16 | 0.01 |

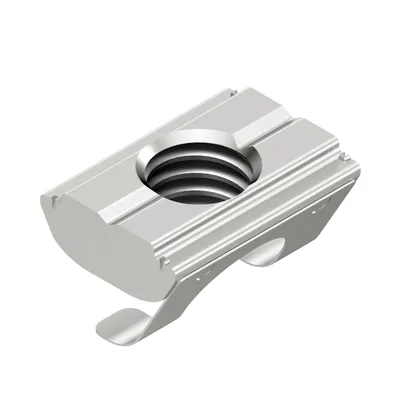

| 3842547821 | M8 | 1 | 4.8 | 16 | 0.01 |
| 3842529297 | M8 | 1 | 4.8 | 16 | 0.01 |

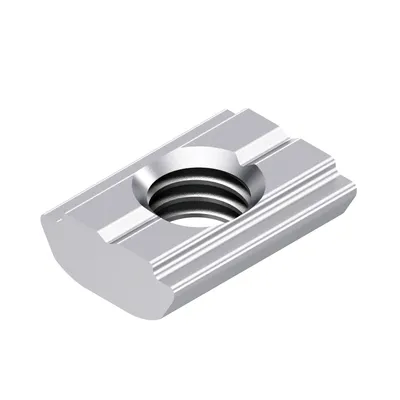

| 3842529321 | M8 | 1 | 4.8 | 16 | 0.01 |
| 3842514931 | M8 | 2 | 6 | 16 | 0.01 |

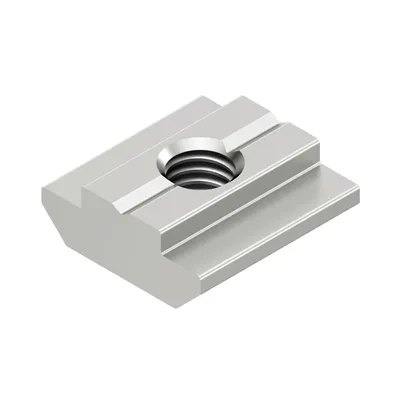

| 3842547815 | M6 | 2 | 6 | 16 | 0.01 |

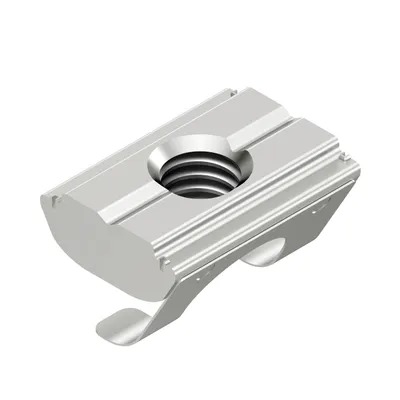

| 3842547822 | M6 | 1 | 4.8 | 16 | 0.01 |
| 3842529296 | M6 | 1 | 4.8 | 16 | 0.01 |
| 3842530321 | M6 | 1 | 4.8 | 16 | 0.01 |

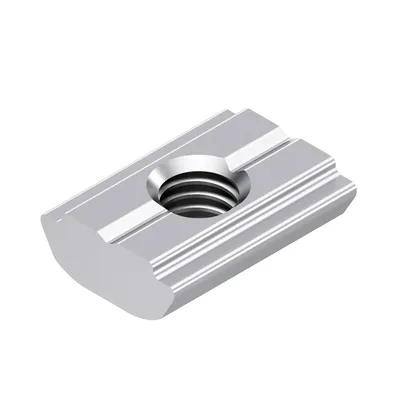

| 3842529320 | M6 | 1 | 4.8 | 16 | 0.01 |
| 3842514930 | M6 | 2 | 6 | 16 | 0.01 |

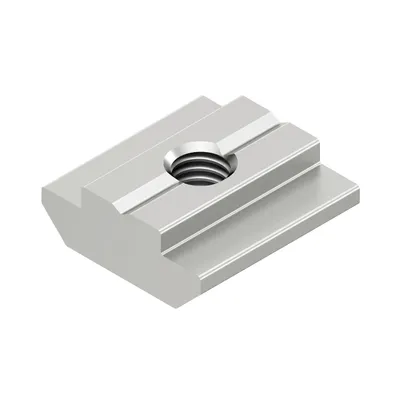

| 3842547816 | M5 | 2 | 6 | 16 | 0.01 |

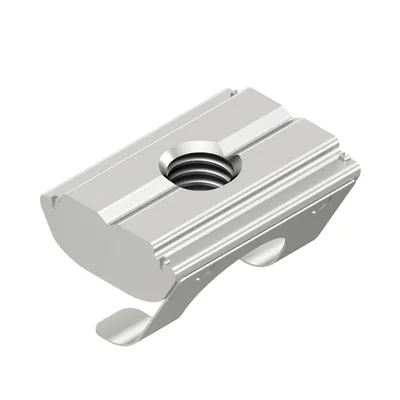

| 3842547823 | M5 | 1 | 4.8 | 16 | 0.01 |

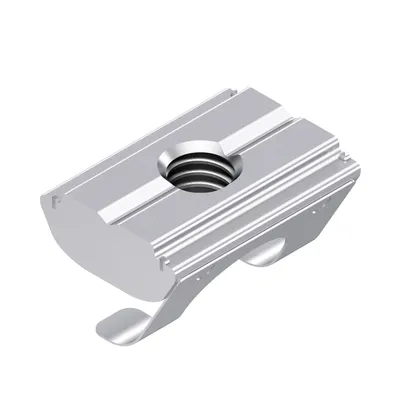

| 3842529295 | M5 | 1 | 4.8 | 16 | 0.01 |

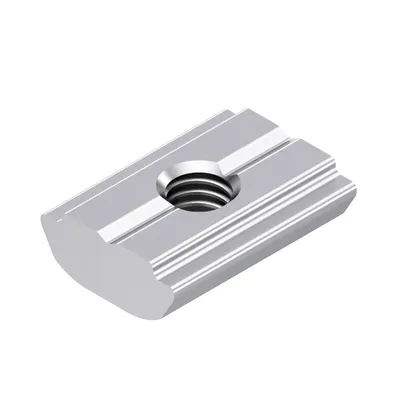

| 3842529319 | M5 | 1 | 4.8 | 16 | 0.01 |

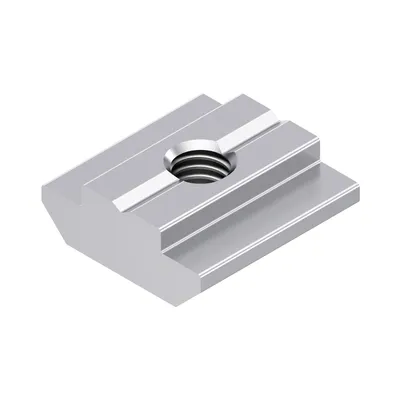

| 3842514929 | M5 | 2 | 6 | 16 | 0.01 |

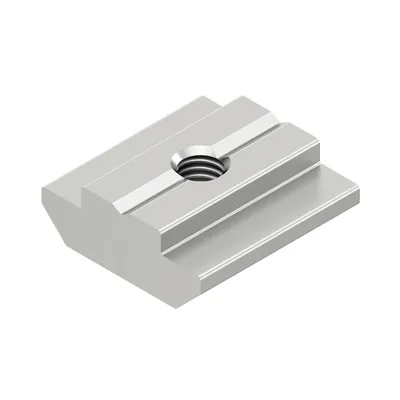

| 3842547817 | M4 | 2 | 6 | 16 | 0.01 |
| 3842547824 | M4 | 1 | 4.8 | 16 | 0.01 |

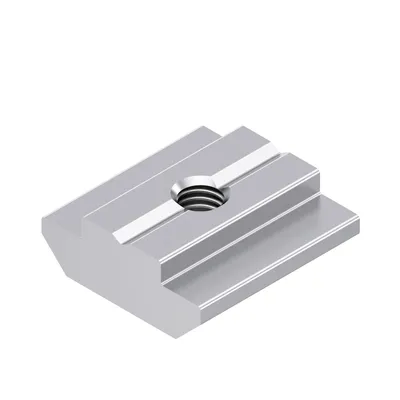

| 3842514928 | M4 | 2 | 6 | 16 | 0.01 |

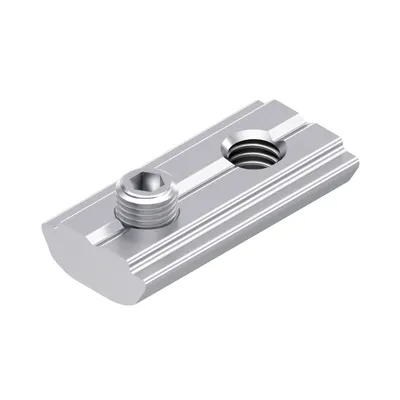

| 3842536675 | M5; M5 | 1 | 4.8 | 24 | 0.01 |

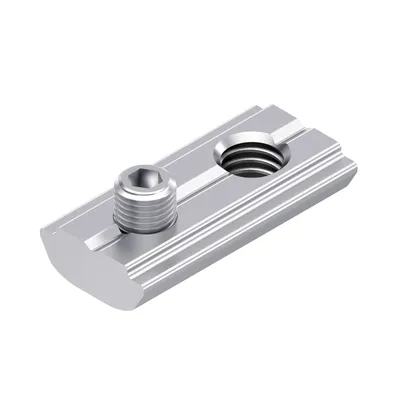

| 3842557260 | M5; M6 | 1 | 4.8 | 24 | 0.01 |
