Strut profile Parts
Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Profile surface [A] [cm²] | Moment of resistance in the x-direction [Wx] [cm³] |
|---|---|---|---|---|---|
| 3842990347 | 22,5x180 | 581 | 11.8 | 21.6 | 66.8 |
| 3842990346 | 22,5x180 | 581 | 11.8 | 21.6 | 66.8 |
| 3842557944 | 22,5x180 | 581 | 11.8 | 21.6 | 66.8 |
| 3842558306 | 22,5X180 | 581 | 11.8 | 21.6 | 66.8 |
| 3842993699 | 22,5x180 | 581 | 11.8 | 21.6 | 66.8 |

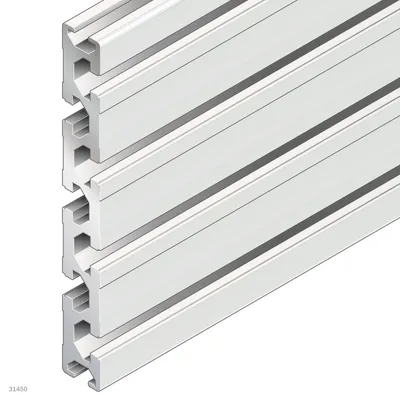

| 3842990345 | 22,5x180 | 581 | 11.8 | 21.6 | 66.8 |

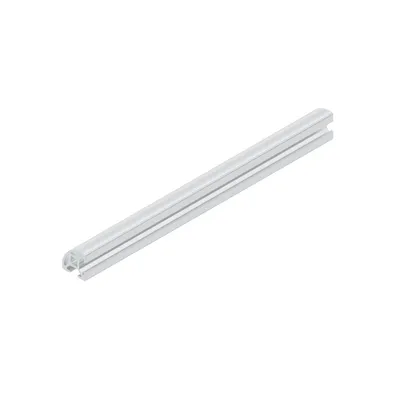

| 3842517177 | 20x20 R | 0.6 | 0.6 | 1.6 | 0.5 |
| 3842993686 | 15x180 | 321.7 | 3.2 | 11.6 | 35.7 |

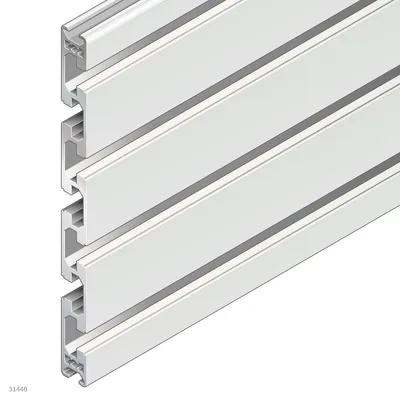

| 3842993079 | 15x180 | 321.7 | 3.2 | 11.6 | 35.7 |

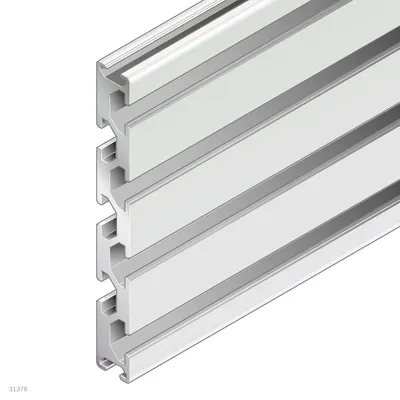

| 3842993684 | 15x120 | 110.4 | 2.2 | 9 | 18.4 |
| 3842993078 | 15x120 | 110.4 | 2.2 | 9 | 18.4 |
| 3842993077 | 10x40 | 3.2 | 0.2 | 2.1 | 1.6 |

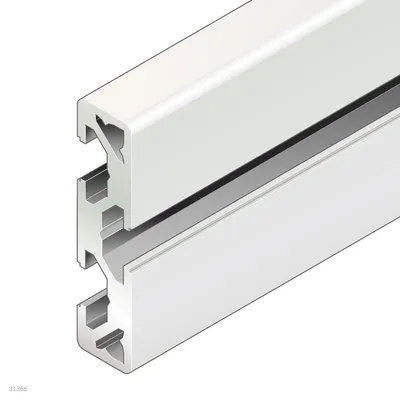

| 3842993683 | 10x40 | 3.2 | 0.2 | 2.1 | 1.6 |

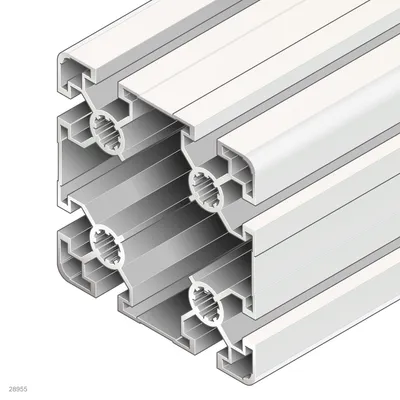

| 3842537100 | 90x90SL | 130.2 | 130.2 | 14.1 | 28.9 |
| 3842992422 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842992419 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842992423 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |

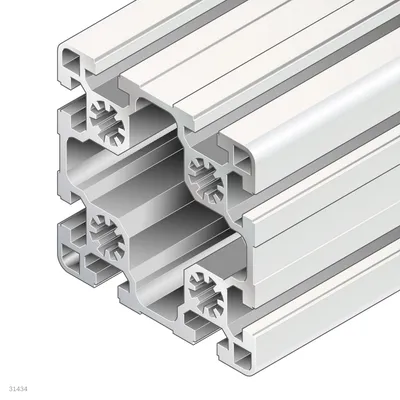

| 3842992416 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842553620 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842992420 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842992417 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842553613 | 90x90L | 211.1 | 211.1 | 24.1 | 46.9 |
| 3842538300 | 90x90L 4NVS | 220.9 | 220.9 | 24.2 | 49.2 |

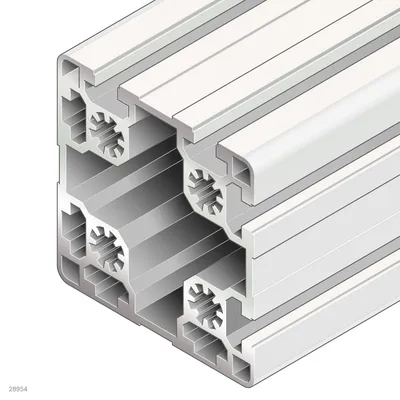

| 3842538296 | 90x90L 4NVS | 220.9 | 220.9 | 24.2 | 49.2 |
Common to all listed parts
| Color | Natural |
| Material | Aluminum, anodized |
