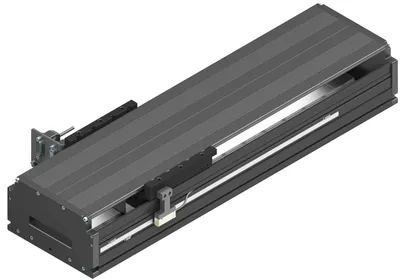

Linear motor modules Parts
Compare Linear motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor | Maximum permissible moving external load mex max [kg] | Length L [mm] | Maximum travel range smax [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R040637169 | IC-150B-100-W3 | 20.0 | 1070.0 | 856.0 | 33.8 |
| R040637167 | IC-150B-100-W3 | 20.0 | 986.0 | 772.0 | 31.6 |
| R040637165 | IC-150B-100-W3 | 20.0 | 902.0 | 688.0 | 29.5 |
| R040637163 | IC-150B-100-W3 | 20.0 | 818.0 | 604.0 | 27.3 |
| R040637161 | IC-150B-100-W3 | 20.0 | 734.0 | 520.0 | 25.1 |
| R040637159 | IC-150B-100-W3 | 20.0 | 650.0 | 436.0 | 22.9 |
| R040637157 | IC-150B-100-W3 | 20.0 | 566.0 | 352.0 | 20.8 |
| R040637155 | IC-150B-100-W3 | 20.0 | 482.0 | 268.0 | 18.6 |
| R040637148 | IC-150B-100-W3 | 20.0 | 398.0 | 184.0 | 16.4 |
| R040637146 | IC-150B-100-W2 | 15.0 | 1700.0 | 1528.0 | 49.3 |
| R040637144 | IC-150B-100-W2 | 15.0 | 1616.0 | 1444.0 | 47.1 |
| R040637142 | IC-150B-100-W2 | 15.0 | 1532.0 | 1360.0 | 44.9 |
| R040637140 | IC-150B-100-W2 | 15.0 | 1448.0 | 1276.0 | 42.7 |
| R040637138 | IC-150B-100-W2 | 15.0 | 1364.0 | 1192.0 | 40.5 |
| R040637136 | IC-150B-100-W2 | 15.0 | 1280.0 | 1108.0 | 38.3 |
| R040637134 | IC-150B-100-W2 | 15.0 | 1196.0 | 1024.0 | 36.1 |
| R040637132 | IC-150B-100-W2 | 15.0 | 1112.0 | 940.0 | 33.9 |
| R040637130 | IC-150B-100-W2 | 15.0 | 1028.0 | 856.0 | 31.8 |
| R040637128 | IC-150B-100-W2 | 15.0 | 944.0 | 772.0 | 29.6 |
| R040637126 | IC-150B-100-W2 | 15.0 | 860.0 | 688.0 | 27.4 |
| R040637124 | IC-150B-100-W2 | 15.0 | 776.0 | 604.0 | 25.2 |
| R040637122 | IC-150B-100-W2 | 15.0 | 692.0 | 520.0 | 23.1 |
| R040637120 | IC-150B-100-W2 | 15.0 | 608.0 | 436.0 | 20.9 |
| R040637118 | IC-150B-100-W2 | 15.0 | 524.0 | 352.0 | 18.7 |
Common to all listed parts
| Nominal size [mm] | LMM-220 |
| Motor type | Linear motor with iron core |
| Width [mm] | 225.0 |
| Height [mm] | 91.7 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Dynamic load capacity, guideway Cgw [N] | 47111 |
