Fastening elements for electromechanical cylinders Parts
Compare Fastening elements for electromechanical cylinders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Fastening elements for electromechanical cylinders | Nominal size [mm] | Weight [kg] | Material of electromechanical cylinders | Dimension SW [mm] |
|---|---|---|---|---|---|

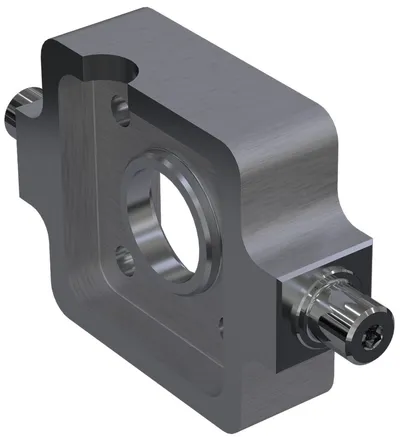

| R15615B013 | Trunnion | 80 | 2.25 | Steel | 8 |
| R15615A001 | Trunnion | 80 | 1.62 | Cast iron with spheroidal graphite | — |
| R15614B013 | Trunnion | 63 | 1.57 | Steel | 8 |
| R349940600 | Trunnion | 63 | 0.8 | Cast iron with spheroidal graphite | — |

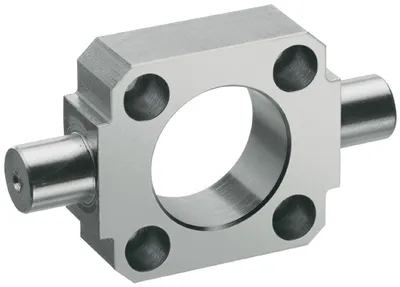

| R15613B013 | Trunnion | 50 | 1.24 | Steel | 6 |
| R349940500 | Trunnion | 50 | 0.51 | Cast iron with spheroidal graphite | — |
| R15612B013 | Trunnion | 40 | 0.7 | Steel | 6 |
| R349940400 | Trunnion | 40 | 0.35 | Cast iron with spheroidal graphite | — |
| R15611B013 | Trunnion | 32 | 0.48 | Steel | 6 |
| R349940300 | Trunnion | 32 | 0.2 | Cast iron with spheroidal graphite | — |
| R15617B013 | Trunnion | 100XC | 4.8 | Steel | 12 |
| R15617A001 | Trunnion | 100XC | 2.68 | Cast iron with spheroidal graphite | — |
| R15616B013 | Trunnion | 100 | 2.9 | Steel | 12 |
| R15616A001 | Trunnion | 100 | 3.19 | Cast iron with spheroidal graphite | — |
| R349938900 | Female spherical rod end bearing | 100; 80 | 0.42 | Steel | 30 |
| R349951900 | Female spherical rod end bearing | 100; 80 | 0.42 | Stainless steel | 32 |
| R349938700 | Female spherical rod end bearing | 50; 63 | 0.22 | Steel | 24 |
| R349951800 | Female spherical rod end bearing | 50; 63 | 0.23 | Stainless steel | 24 |

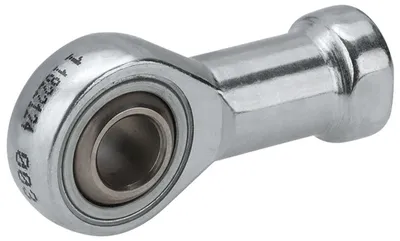

| R349938600 | Female spherical rod end bearing | 40 | 0.11 | Steel | 19 |
| R349951700 | Female spherical rod end bearing | 40 | 0.12 | Stainless steel | 19 |
| R349938500 | Female spherical rod end bearing | 32 | 0.08 | Steel | 17 |
| R349951600 | Female spherical rod end bearing | 32 | 0.09 | Stainless steel | 17 |
| R349952000 | Female spherical rod end bearing | 100XC | 1.5 | Stainless steel | — |
| R349951500 | Female spherical rod end bearing | 100XC | 1.65 | Steel | 50 |
