Accessories for ball screw assemblies Parts
Compare Accessories for ball screw assemblies
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Tightening torque [Nm] | Mass m (g) [g] | Weight [kg] | Dimension e [mm] |
|---|---|---|---|---|---|
| R150766728 | GWR 95x2 | 130 | 425.0 | 0.4 | 82 |
| R150756727 | GWR 78x2 | 90 | 286.0 | 0.26 | 67 |
| R150744026 | GWR 65x1,5 | 70 | 136.0 | 0.14 | 55 |

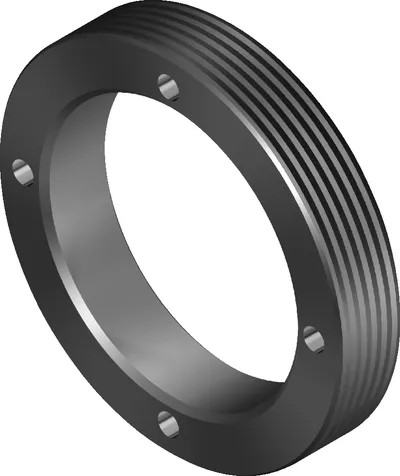

| R150744029 | GWR 62x1,5 | 60 | 127.0 | 0.14 | 53 |
| R150744028 | GWR 60x1 | 60 | 97.0 | 0.1 | 51 |
| R150744032 | GWR 58x1,5 | 58 | 84.0 | 0.08 | 50 |
| R150724025 | GWR 50x1,5 | 45 | 86.0 | 0.09 | 40 |
| R150704023 | GWR 36x1,5 | 25 | 35.0 | 0.03 | 29 |
| R150734034 | GWR 30x1,5 | 20 | 29.0 | 0.03 | 23 |
| R150724022 | GWR 26x1,5 | 10 | 16.5 | 0.02 | 20.5 |
| R150724035 | GWR 23x1 | 8 | 15.0 | 0.02 | 18 |
| R150704033 | GWR 18x1 | 6 | 10.0 | 0.02 | 12.5 |
| R150776729 | GWR 115x2 | 200 | 664.0 | 0.61 | 100 |
| R344603604 | NMZ 90x2 | 200 | 700.0 | 0.79 | — |
| R344603504 | NMZ 80x2 | 160 | 460.0 | 0.54 | — |
| R344603404 | NMZ 70x2 | 130 | 360.0 | 0.41 | — |
| R344600104 | NMZ 6x0,5 | 2 | 10.0 | 0.01 | 11 |
| R344603104 | NMZ 60x2 | 100 | 250.0 | 0.29 | — |

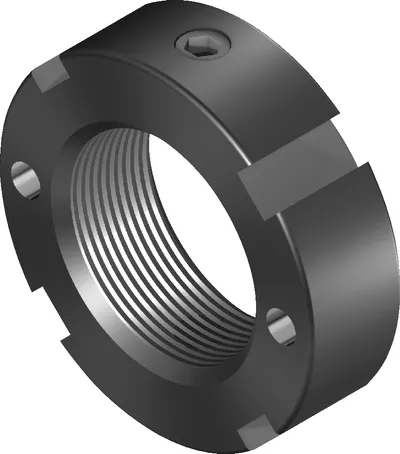

| R344603304 | NMZ 55x2 | 95 | 230.0 | 0.27 | — |
| R344603204 | NMZ 45x1,5 | 65 | 170.0 | 0.2 | — |
| R344600604 | NMZ 30x1,5 | 32 | 75.0 | 0.08 | 37.5 |
| R344600704 | NMZ 25x1,5 | 25 | 55.0 | 0.17 | 35 |
| R344600504 | NMZ 20x1 | 18 | 35.0 | 0.04 | 26 |
| R344600404 | NMZ 17x1 | 15 | 28.0 | 0.03 | 22.5 |
