Ball screw assembly nuts Parts

Bosch Rexroth

R254223005

BALL NUT ZEV-E-S 8X2,5RX1,588-4

Bosch Rexroth

R254230005

BALL NUT ZEV-E-S 32X5RX3,5-5

Bosch Rexroth

R254230015

BALL NUT ZEV-E-S 32X10RX3,969-5

Bosch Rexroth

R254210005

BALL NUT ZEV-E-S 20X5RX3-4

Bosch Rexroth

R254200005

BALL NUT ZEV-E-S 16X5RX3-3

Bosch Rexroth

R254200015

BALL NUT ZEV-E-S 16X10RX3-3

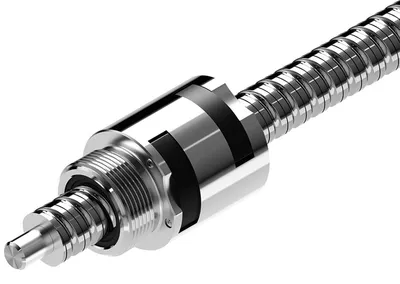

Bosch Rexroth

R254243005

BALL NUT ZEV-E-S 12X5RX2-3

Bosch Rexroth

R254243015

BALL NUT ZEV-E-S 12X10RX2-2

Bosch Rexroth

R254220005

BALL NUT ZEV-E-S 25X5RX3-7

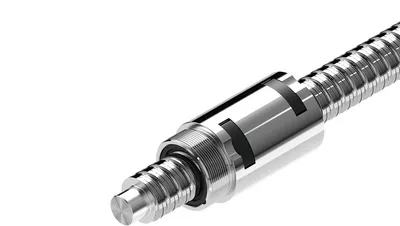

Bosch Rexroth

R254220015

BALL NUT ZEV-E-S 25X10RX3-5

Bosch Rexroth

R153226002

BALL NUT ZEM-E-S 8X5RX1,588-3

Bosch Rexroth

R153223002

BALL NUT ZEM-E-S 8X2,5RX1,588-3

Bosch Rexroth

R151274012

BALL NUT ZEM-E-S 80X10RX6,5-6

Bosch Rexroth

R151264012

BALL NUT ZEM-E-S 63X10RX6-6

Bosch Rexroth

R151251012

BALL NUT ZEM-E-S 50X5RX3,5-5

Bosch Rexroth

R151257012

BALL NUT ZEM-E-S 50X20RX6,5-3

Bosch Rexroth

R151254012

BALL NUT ZEM-E-S 50X10RX6-6

Bosch Rexroth

R151241012

BALL NUT ZEM-E-S 40X5RX3,5-5

Bosch Rexroth

R155241002

BALL NUT ZEM-E-S 40X5LX3,5-5

Bosch Rexroth

R151249052

BALL NUT ZEM-E-S 40X40RX6-3

Bosch Rexroth

R151249012

BALL NUT ZEM-E-S 40X40RX6-2

Bosch Rexroth

R151247012

BALL NUT ZEM-E-S 40X20RX6-3

Bosch Rexroth

R151244022

BALL NUT ZEM-E-S 40X10RX6-6

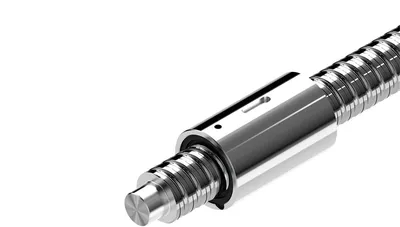

Bosch Rexroth

R151244012

BALL NUT ZEM-E-S 40X10RX6-4

Compare Ball screw assembly nuts

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal size [mm]	Dynamic load capacity C [N]	Weight [kg]	Static load capacity C0 [N]	Dimension L [mm]
R254223005	8 x 2,5R x 1,588 - 4	3490.0	0.04	3910.0	20.5
R254230005	32 x 5R x 3,5 - 5	31700.0	0.58	50600.0	69
R254230015	32 x 10R x 3,969 - 5	38000.0	0.88	58300.0	95
R254210005	20 x 5R x 3 - 4	17200.0	0.34	21500.0	50
R254200005	16 x 5R x 3 - 3	11300.0	0.16	11800.0	40
R254200015	16 x 10R x 3 - 3	11500.0	0.22	12300.0	54
R254243005	12 x 5R x 2 - 3	4560.0	0.1	5800.0	36
R254243015	12 x 10R x 2 - 2	3000.0	0.11	3600.0	40
R254220005	25 x 5R x 3 - 7	31400.0	0.4	48700.0	60
R254220015	25 x 10R x 3 - 5	23200.0	0.49	34200.0	74
R153226002	8 x 5R x 1,588 - 3	2500.0	0.08	2650.0	23.5
R153223002	8 x 2,5R x 1,588 - 3	2640.0	0.07	2800.0	16
R151274012	80 x 10R x 6,5 - 6	130100.0	2.92	291700.0	95
R151264012	63 x 10R x 6 - 6	106600.0	1.92	214300.0	90
R151251012	50 x 5R x 3,5 - 5	38400.0	0.83	81300.0	54
R151257012	50 x 20R x 6,5 - 3	57500.0	2.44	87900.0	92
R151254012	50 x 10R x 6 - 6	95600.0	1.6	166500.0	90
R151241012	40 x 5R x 3,5 - 5	34900.0	0.58	64100.0	54
R155241002	40 x 5L x 3,5 - 5	34900.0	0.56	64100.0	54
R151249052	40 x 40R x 6 - 3	44400.0	2.18	62300.0	142
R151249012	40 x 40R x 6 - 2	30600.0	2.55	40300.0	113
R151247012	40 x 20R x 6 - 3	45500.0	1.36	62800.0	88
R151244022	40 x 10R x 6 - 6	86500.0	1.41	132200.0	90
R151244012	40 x 10R x 6 - 4	60000.0	1.14	86400.0	70

Common to all listed parts

Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
