Shaft support blocks Parts
Compare Shaft support blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dimension A (profiled rail systems) [mm] | Dimension B (profiled rail systems) [mm] | Dimension E [mm] | Dimension V [mm] |
|---|---|---|---|---|---|
| R105508000 | 7.52 | 200 | 60 | 170 | 22 |
| R105500800 | 0.04 | 32 | 10 | 25 | 5 |
| R105506000 | 3.31 | 160 | 48 | 132 | 15 |
| R105505000 | 2.05 | 130 | 40 | 108 | 14 |
| R105504000 | 1.05 | 108 | 32 | 86 | 12 |

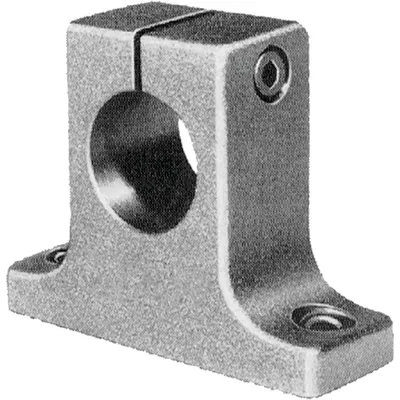

| R105503000 | 0.59 | 84 | 28 | 68 | 10 |
| R105502500 | 0.39 | 74 | 25 | 60 | 9 |
| R105502000 | 0.23 | 60 | 20 | 45 | 8 |
| R105501600 | 0.13 | 50 | 16 | 40 | 6.5 |
| R105501200 | 0.07 | 42 | 12 | 32 | 5.5 |
| R105605000 | 2.4 | — | 106 | 75 | 36 |
| R105604000 | 1.54 | — | 96 | 68 | 26 |
| R105603000 | 0.73 | — | 76 | 54 | 19 |
| R105602500 | 0.39 | — | 60 | 42 | 16 |
| R105602000 | 0.27 | — | 54 | 38 | 14 |
| R105601600 | 0.21 | — | 50 | 35 | 12 |
| R105601200 | 0.15 | — | 42 | 30 | 12 |
| R105706000 | 2.88 | 164 | 74 | 124 | 13 |
| R105776000 | 2.93 | 164 | 74 | 124 | 13 |
| R105805000 | 0.8 | 103 | 50 | 80 | — |

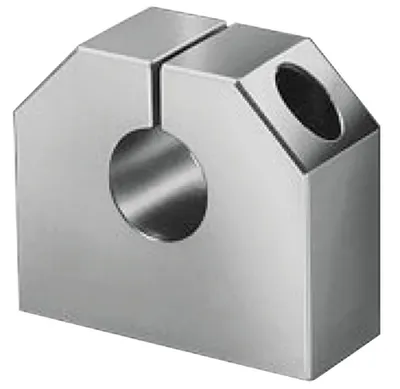

| R105875000 | 0.84 | 103 | 50 | 80 | — |

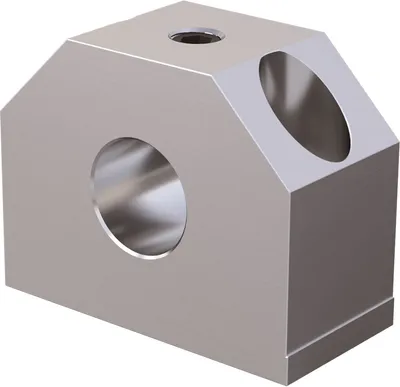

| R105705000 | 1.46 | 132 | 58 | 100 | 12 |
| R105775000 | 1.45 | 132 | 58 | 100 | 12 |

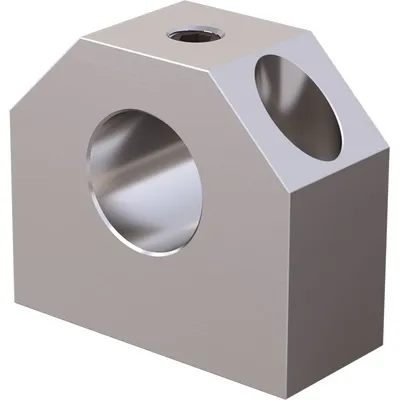

| R105804000 | 0.46 | 87 | 40 | 66 | — |
Common to all listed parts
| Accessories for linear bushings | Shaft support blocks |
| Type | Shaft support block |
