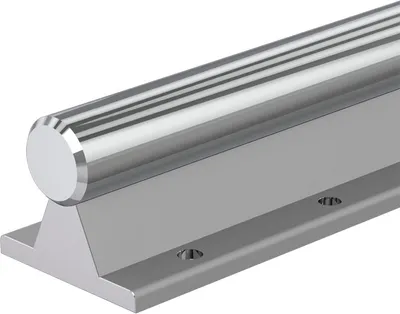

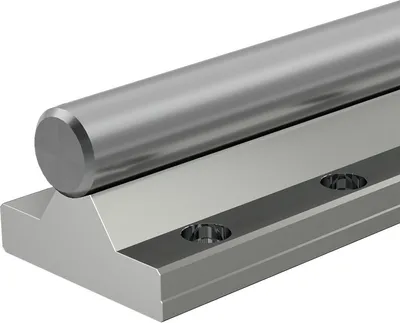

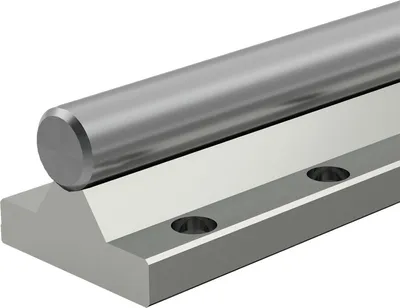

Precision steel shafts with shaft support rails Parts
Compare Precision steel shafts with shaft support rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass m (kg/m) [kg/m] | Dimension E [mm] | Dimension M [mm] | Dimension O1 thread x lead [mm] | Dimension V [mm] |
|---|---|---|---|---|---|
| R101208030 | 79.2 | 120 | 37 | M24x60 | 26 |
| R101208060 | 79.2 | 120 | 37 | M24x60 | 26 |
| R101208000 | 79.2 | 120 | 37 | M24x60 | 26 |
| R101808030 | 121 | 140 | 37 | M24x80 | 42 |
| R101808060 | 121 | 140 | 37 | M24x80 | 42 |
| R101808000 | 121 | 140 | 37 | M24x80 | 42 |
| R101408031 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408061 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408001 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408020 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408030 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408060 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101408000 | 47.3 | 92 | 34 | M16x60 | 12 |
| R101206030 | 45.6 | 90 | 27 | M20x40 | 20 |
| R101206060 | 45.6 | 90 | 27 | M20x40 | 20 |
| R101206000 | 45.6 | 90 | 27 | M20x40 | 20 |
| R101806030 | 70 | 110 | 27 | M20x60 | 34 |
| R101806060 | 70 | 110 | 27 | M20x60 | 34 |
| R101806000 | 70 | 110 | 27 | M20x60 | 34 |
| R101406031 | 27.3 | 72 | 25 | M14x50 | 10 |
| R101406061 | 27.3 | 72 | 25 | M14x50 | 10 |
| R101406001 | 27.3 | 72 | 25 | M14x50 | 10 |
| R101406020 | 27.3 | 72 | 25 | M14x50 | 10 |
| R101406030 | 27.3 | 72 | 25 | M14x50 | 10 |
Common to all listed parts
| Weight [kg] | 0 |
