Precision steel shafts Parts
Compare Precision steel shafts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Mass m (kg/m) [kg/m] | Weight [kg] | Shaft diameter, detailed [mm] |
|---|---|---|---|---|
| R072403089 | 30.0 | 4.8 | 0 | 28 |
| R072403002 | 30.0 | 4.8 | 7.05 | 28 |
| R072400802 | 8.0 | 0.38 | 0.24 | 8 |
| R072400886 | 8.0 | 0.38 | 0 | 8 |
| R072400889 | 8.0 | 0.38 | 0 | 8 |
| R072400602 | 6.0 | 0.21 | 0.14 | 6 |
| R072400686 | 6.0 | 0.21 | 0 | 6 |
| R072400689 | 6.0 | 0.21 | 0 | 6 |
| R072405002 | 50.0 | 13.1 | 26.4 | 47 |
| R072405086 | 50.0 | 13.1 | 0 | 47 |
| R072405089 | 50.0 | 13.1 | 0 | 47 |
| R072404002 | 40.0 | 8.6 | 17 | 37.4 |
| R072404086 | 40.0 | 8.6 | 0 | 37.4 |
| R072404089 | 40.0 | 8.6 | 0 | 37.4 |
| R072400402 | 4.0 | 0.1 | 0.04 | 4 |
| R072400486 | 4.0 | 0.1 | 0 | 4 |
| R072400489 | 4.0 | 0.1 | 0 | 4 |
| R072402502 | 25.0 | 3.1 | 4.77 | 23 |
| R072402586 | 25.0 | 3.1 | 0 | 23 |
| R072402589 | 25.0 | 3.1 | 0 | 23 |
| R072402002 | 20.0 | 2 | 3 | 18.2 |
| R072402086 | 20.0 | 2 | 0 | 18.2 |
| R072402089 | 20.0 | 2 | 0 | 18.2 |
| R072401602 | 16.0 | 1.5 | 0.93 | 16 |
Common to all listed parts
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Tolerance grade shaft | h7 |

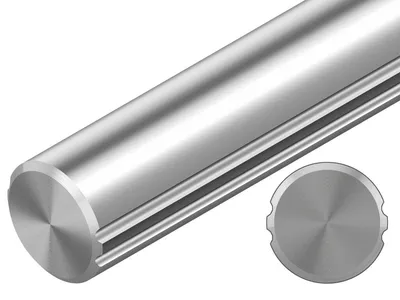

| Version of precision steel shaft | Solid shaft with 4 ball guide grooves |
| Type | Solid shaft |
| Raceway grooves | 4 |
| Note: Lmax | for version with shaft length lmax. and customized shaft |
| Footnote diameter d | Actual shaft diameter varies |
