Miniature ball guide rails Parts
Compare Miniature ball guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

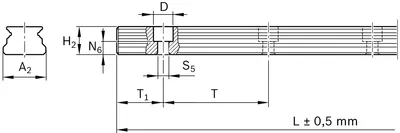

| MPN | Minimum length Lmin [mm] | Mass m (kg/m) [kg/m] | Mass g/m [g/m] | Weight [kg] | Dimension A2 (profiled rail systems) [mm] |
|---|---|---|---|---|---|
| R044506231 | 73.0 | 2110 | 2110 | 0 | 20 |
| R044500231 | 73.0 | 2110 | 2110 | 0 | 20 |
| R044506431 | 73.0 | 2110 | 2110 | 0 | 20 |
| R044500431 | 73.0 | 2110 | 2110 | 2.08 | 20 |
| R044506331 | 73.0 | 2110 | 2110 | 0 | 20 |
| R044500331 | 73.0 | 2110 | 2110 | 0 | 20 |
| R044556231 | 49.0 | 970 | 970 | 0 | 15 |
| R044550231 | 49.0 | 970 | 970 | 0 | 15 |
| R044556431 | 49.0 | 970 | 970 | 0 | 15 |
| R044550431 | 49.0 | 970 | 970 | 0.12 | 15 |

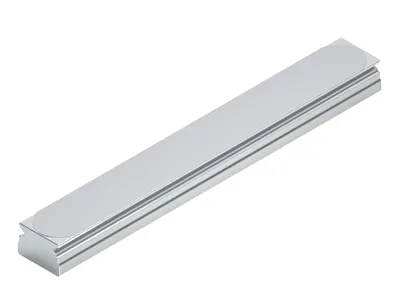

| R044556331 | 49.0 | 970 | 970 | 0 | 15 |
| R044550331 | 49.0 | 970 | 970 | 0.36 | 15 |

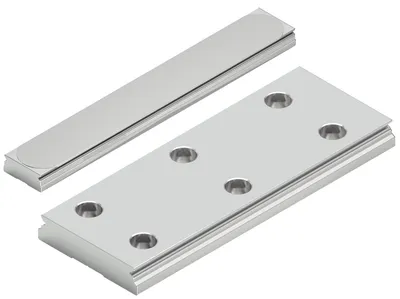

| R045556231 | 52.0 | 2860 | 2860 | 0 | 42 |

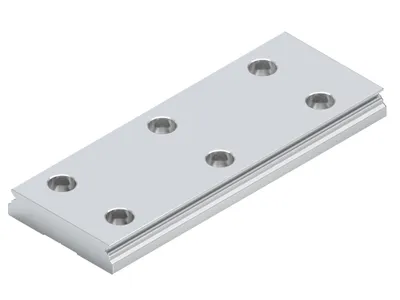

| R045550231 | 52.0 | 2860 | 2860 | 0 | 42 |
| R045556431 | 52.0 | 2860 | 2860 | 0 | 42 |
| R045550431 | 52.0 | 2860 | 2860 | 0 | 42 |

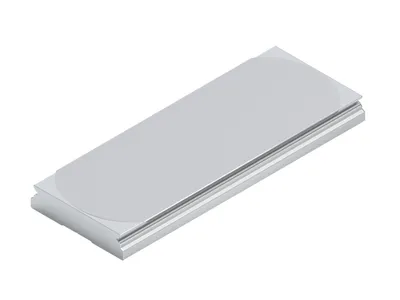

| R045556331 | 52.0 | 2860 | 2860 | 0 | 42 |
| R045550331 | 52.0 | 2860 | 2860 | 0.22 | 42 |
| R044526231 | 34.0 | 610 | 610 | 0.23 | 12 |

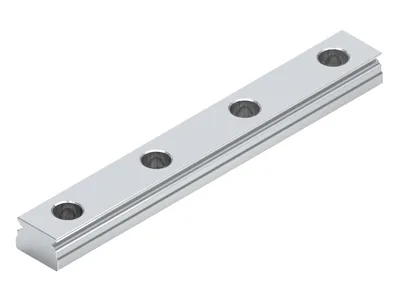

| R044520231 | 34.0 | 610 | 610 | 0 | 12 |
| R044526431 | 34.0 | 610 | 610 | 0 | 12 |
| R044520431 | 34.0 | 610 | 610 | 0 | 12 |
| R044526331 | 34.0 | 610 | 610 | 0 | 12 |
| R044520331 | 34.0 | 610 | 610 | 0 | 12 |
Common to all listed parts
| Version | Ball rail system |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Guide rail mounting | For bolting from above |
| Number of sections | 1-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
