Ball runner blocks Compact Line BSCL Parts

Bosch Rexroth

R205C42220

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C2-P-1

Bosch Rexroth

R205C42320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C2-H-1

Bosch Rexroth

R205C41220

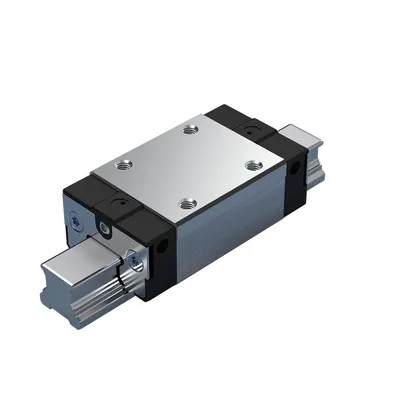

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C1-P-1

Bosch Rexroth

R205C41420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C1-N-1

Bosch Rexroth

R205C41320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C1-H-1

Bosch Rexroth

R205C49420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C0-N-1

Bosch Rexroth

R205C49320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNS-C0-H-1

Bosch Rexroth

R205E42220

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C2-P-1

Bosch Rexroth

R205E42320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C2-H-1

Bosch Rexroth

R205E41220

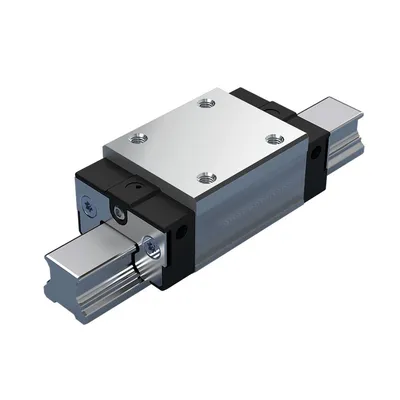

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C1-P-1

Bosch Rexroth

R205E41420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C1-N-1

Bosch Rexroth

R205E41320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C1-H-1

Bosch Rexroth

R205E49420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C0-N-1

Bosch Rexroth

R205E49320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SNH-C0-H-1

Bosch Rexroth

R205D42220

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C2-P-1

Bosch Rexroth

R205D42320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C2-H-1

Bosch Rexroth

R205D41220

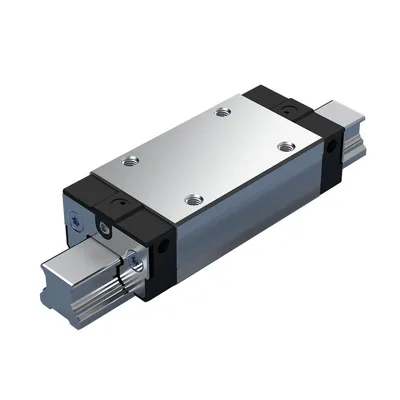

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C1-P-1

Bosch Rexroth

R205D41420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C1-N-1

Bosch Rexroth

R205D41320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C1-H-1

Bosch Rexroth

R205D49420

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C0-N-1

Bosch Rexroth

R205D49320

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLS-C0-H-1

Bosch Rexroth

R205F42220

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLH-C2-P-1

Bosch Rexroth

R205F42320

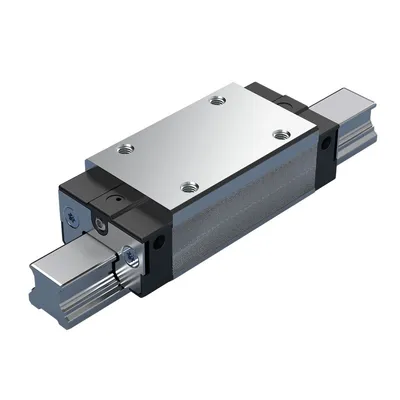

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLH-C2-H-1

Bosch Rexroth

R205F41220

BALL RUNNER BLOCK CARBON STEEL KWE-045-SLH-C1-P-1

Compare Ball runner blocks Compact Line BSCL

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Length of runner block [mm]	Weight [kg]
R205C42220	SNS - slimline, normal, standard height	C2 - Medium preload	P - Precise	137.5	2.4
R205C42320	SNS - slimline, normal, standard height	C2 - Medium preload	H - Highly accurate	137.5	2.4
R205C41220	SNS - slimline, normal, standard height	C1 - Low preload	P - Precise	137.5	2.4
R205C41420	SNS - slimline, normal, standard height	C1 - Low preload	N - Normal	137.5	2.4
R205C41320	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	137.5	2.4
R205C49420	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	137.5	2.4
R205C49320	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	137.5	2.4
R205E42220	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	137.5	3.03
R205E42320	SNH - slimline, normal, high	C2 - Medium preload	H - Highly accurate	137.5	3.03
R205E41220	SNH - slimline, normal, high	C1 - Low preload	P - Precise	137.5	3.03
R205E41420	SNH - slimline, normal, high	C1 - Low preload	N - Normal	137.5	3.03
R205E41320	SNH - slimline, normal, high	C1 - Low preload	H - Highly accurate	137.5	3.03
R205E49420	SNH - slimline, normal, high	C0 - Without preload (clearance)	N - Normal	137.5	3.03
R205E49320	SNH - slimline, normal, high	C0 - Without preload (clearance)	H - Highly accurate	137.5	3.03
R205D42220	SLS - slimline, long, standard height	C2 - Medium preload	P - Precise	174.0	3.24
R205D42320	SLS - slimline, long, standard height	C2 - Medium preload	H - Highly accurate	174.0	3.24
R205D41220	SLS - slimline, long, standard height	C1 - Low preload	P - Precise	174.0	3.24
R205D41420	SLS - slimline, long, standard height	C1 - Low preload	N - Normal	174.0	3.55
R205D41320	SLS - slimline, long, standard height	C1 - Low preload	H - Highly accurate	174.0	3.24
R205D49420	SLS - slimline, long, standard height	C0 - Without preload (clearance)	N - Normal	174.0	3.24
R205D49320	SLS - slimline, long, standard height	C0 - Without preload (clearance)	H - Highly accurate	174.0	3.24
R205F42220	SLH - slimline, long, high	C2 - Medium preload	P - Precise	174.0	4.11
R205F42320	SLH - slimline, long, high	C2 - Medium preload	H - Highly accurate	174.0	4.11
R205F41220	SLH - slimline, long, high	C1 - Low preload	P - Precise	174.0	4.11

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	45
Model	Compact Line ball runner block
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Width of runner block [mm]	86.0
Lubrication	Pre-lubricated, preserved
Maximum acceleration rate amax [m/s²]	500.0
