RLS Power Connectors Parts
Compare RLS Power Connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Contact Model | Cable clamping area | plug connection clamp box | Weight [kg] |
|---|---|---|---|---|
| R911384002 | Pin | 22.0 - 32.0 mm | 25,0 mm² - REL0112 | 0.53 |
| R911384000 | Pin | 22.0 - 32.0 mm | 16,0 mm² - REL0111 | 0.54 |
| R911394616 | Socket | 22.0 - 32.0 mm | 35,0 mm² - REL0113 | 0.55 |
| R911383994 | Socket | 22.0 - 32.0 mm | 25,0 mm² - REL0112 | 0.54 |
| R911383993 | Socket | 22.0 - 32.0 mm | 16,0 mm² - REL0111 | 0.55 |
| R911383999 | Pin | 18.0 - 25.0 mm | 10,0 mm² - REL0110 | 0.55 |
| R911383992 | Socket | 18.0 - 25.0 mm | 10,0 mm² - REL0110 | 0.54 |
| R911383998 | Pin | 13.0 - 20.0 mm | 6,0 mm² - REL0109 | 0.53 |
| R911383997 | Pin | 13.0 - 20.0 mm | 4,0 mm² - REL0108 | 0.53 |
| R911383991 | Socket | 13.0 - 20.0 mm | 6,0 mm² - REL0109 | 0.54 |
| R911383990 | Socket | 13.0 - 20.0 mm | 4,0 mm² - REL0108 | 0.54 |

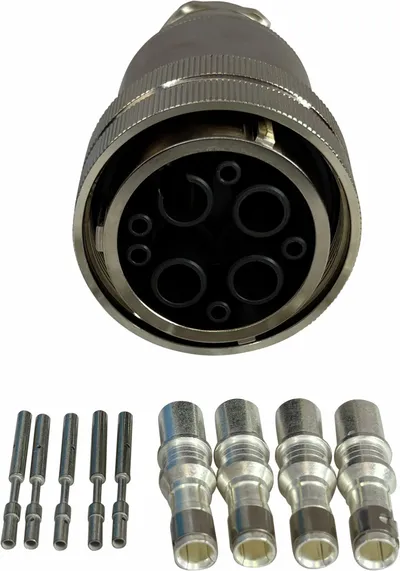

| R911389982 | Pin | — | Performance up to 25,0 mm² | 0.34 |
| R911389981 | Pin | — | Performance up to 16,0 mm² | 0.35 |
| R911383996 | Pin | 9.0 - 16.0 mm | 2,5 mm² - REL0107 | 0.5 |
| R911383995 | Pin | 9.0 - 16.0 mm | 1,5 mm² - REL0106 | 0.5 |
| R911383989 | Socket | 9.0 - 16.0 mm | 2,5 mm² - REL0107 | 0.5 |
| R911384001 | Socket | 9.0 - 16.0 mm | 1,5 mm² - REL0106 | 0.5 |
| R911423737 | Pin | 4.5 + 11.5 mm | Universally equipped plug | 0.48 |
| R911378241 | Pin | 6.5 - 9.5 mm | customer specific | 0.44 |
| R911377410 | Socket | 6.5 - 9.5 mm | customer specific | 0.41 |
| R911380334 | Pin | 12.5 - 17.0 mm | 2,5 mm² - REL0107 | 0.45 |

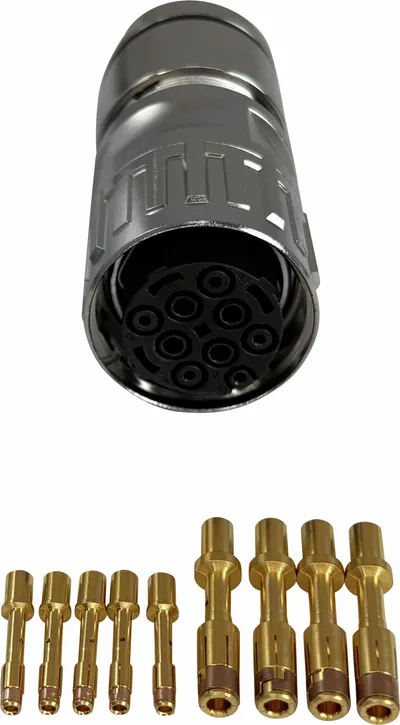

| R911380332 | Socket | 12.5 - 17.0 mm | 2,5 mm² - REL0107 | 0.41 |
| R911388433 | Pin | 14.5 - 20.5 mm | 6,0 mm² - REL0109 | 0.45 |
| R911388432 | Pin | 14.5 - 20.5 mm | 4,0 mm² - REL0108 | 0.44 |
Common to all listed parts
| Contact Type | Crimp |
| Plugvariant | Power plug |
