RHB6 Motor Hybrid Cables Parts
Compare RHB6 Motor Hybrid Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Compatible Motors | Connection type of motor connector | cable length [m] | Cross Section | Weight [kg] |
|---|---|---|---|---|---|
| R911429305 | MS2x with plug S | M23 hybrid connector | 15.0 | 2.5 | 0 |
| R911428324 | MS2x with plug S | M23 hybrid connector | 15.0 | 2.5 | 0 |
| R914519033 | MS2x with plug S | M23 hybrid connector | 5.0 | 2.5 | 0 |
| R911428323 | MS2x with plug S | M23 hybrid connector | 15.0 | 1.5 | 0 |
| R911428322 | MS2x with plug S | M23 hybrid connector | 10.0 | 1.5 | 0 |
| R914519010 | MS2x with plug S | M23 hybrid connector | 7.0 | 1.5 | 0 |
| R911428321 | MS2x with plug S | M23 hybrid connector | 5.0 | 1.5 | 0 |
| R911428319 | MS2x with plug S | M23 hybrid connector | 2.0 | 1.5 | 0 |
| R911429304 | MS2x with plug S | M23 hybrid connector | 1.5 | 1.5 | 0 |
| R911428318 | MS2x with plug S | M23 hybrid connector | 1.0 | 1.5 | 1 |
| R911428327 | MS2x with plug H | M17 hybrid connector | 5.0 | 0.75 | 0 |
| R911429815 | MS2x with plug H | M17 hybrid connector | 2.3 | 0.75 | 0.8 |
| R911428326 | MS2x with plug H | M17 hybrid connector | 2.0 | 0.75 | 0 |
| R911428325 | MS2x with plug H | M17 hybrid connector | 1.0 | 0.75 | 0 |

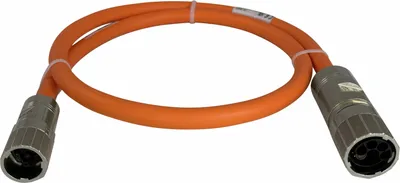

| R911429717 | MS2x with plug H | M17 hybrid connector | 0.5 | 0.75 | 0 |
Common to all listed parts
| Cable Variant | Hybrid Cable |
| Cable Type | ready-made |
| Compatible Drives | ctrlX DRIVE (MI); XMD & XMS |
| Cable Model | Basic |
| Dynamic bending radius | 7.5xD |
| Static bending radius | 5xD |
| Bending cycles | 5 million |
| Ambient temperature (storage and transport) [°C] | -40-80 |
