RLD5 Motor Power Cables Parts
Compare RLD5 Motor Power Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor-Drive-Connection | cable length [m] | Weight [kg] |
|---|---|---|---|

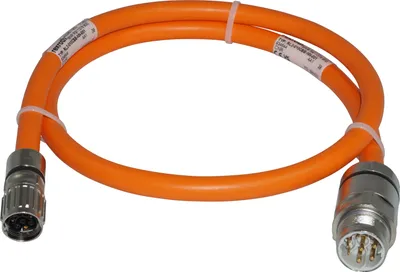

| R914516606 | extension cable | 3.9 | 0 |
| R914516605 | extension cable | 3.8 | 0 |
| R911424735 | direct connection | 30.0 | 0 |
| R914512035 | direct connection | 28.0 | 0 |
| R911424734 | direct connection | 25.0 | 0 |
| R914511881 | direct connection | 24.0 | 0 |
| R914511801 | direct connection | 22.0 | 0 |
| R911424733 | direct connection | 20.0 | 0 |
| R911424732 | direct connection | 15.0 | 0 |
| R914516607 | direct connection | 12.0 | 0 |
| R911424731 | direct connection | 10.0 | 0 |
| R911424730 | direct connection | 8.0 | 0 |
| R914512566 | direct connection | 7.5 | 0 |
| R911424729 | direct connection | 5.0 | 1.38 |
| R914512567 | direct connection | 4.5 | 0 |
| R911424728 | direct connection | 4.0 | 0 |

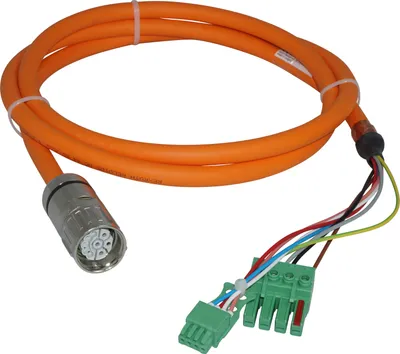

| R911424727 | direct connection | 3.0 | 0.47 |
| R914514955 | direct connection | 2.7 | 0 |
| R914515171 | direct connection | 2.4 | 0 |
| R914514954 | direct connection | 2.2 | 0 |
| R911424726 | direct connection | 2.0 | 0.32 |
| R914513578 | direct connection | 1.5 | 0 |
| R914514956 | direct connection | 1.4 | 0 |
| R911425108 | direct connection | 1.0 | 0 |
Common to all listed parts
| Cable Variant | Power Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x, MS2N with plug D |
| Compatible Drives | ctrlX DRIVE-CN (XCS2-F) |
| Cable Model | Basic |
| Connection type of motor connector | M17 power connector |
| Dynamic bending radius | 7.5xD |
| Static bending radius | 5xD |
