RLC1 Motor Power Cables Parts
Compare RLC1 Motor Power Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor-Drive-Connection | cable length [m] | Ambient temperature (storage and transport) [°C] | Ambient temperature (during operation) [°C] | Weight [kg] |
|---|---|---|---|---|---|
| R911399331 | extension cable | 15.0 | -30-80 | -30-80 | 5.3 |
| R911399330 | extension cable | 10.0 | -30-80 | -30-80 | 3.75 |
| R914503259 | extension cable | 7.5 | -30-80 | -30-80 | 2.78 |
| R911399329 | extension cable | 5.0 | -30-80 | -30-80 | 1.9 |
| R911401185 | extension cable | 3.0 | -30-80 | -30-80 | 1.3 |
| R914507724 | extension cable | 2.0 | -30-80 | -30-80 | 0 |
| R914504739 | extension cable | 20.0 | -30-40 | -30-40 | 0 |
| R911399542 | extension cable | 15.0 | -30-40 | -30-40 | 0 |

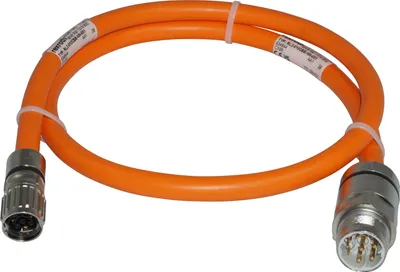

| R914512951 | extension cable | 12.0 | -30-40 | -30-40 | 0 |
| R914512950 | extension cable | 11.0 | -30-40 | -30-40 | 0 |
| R911399540 | extension cable | 10.0 | -30-40 | -30-40 | 1.71 |
| R914502782 | extension cable | 8.0 | -30-40 | -30-40 | 0 |
| R914502783 | extension cable | 7.0 | -30-40 | -30-40 | 3.8 |
| R914502784 | extension cable | 6.0 | -30-40 | -30-40 | 1.1 |
| R911399539 | extension cable | 5.0 | -30-40 | -30-40 | 0.96 |
| R914502896 | extension cable | 4.5 | -30-40 | -30-40 | 0.9 |
| R911406171 | extension cable | 4.0 | -30-40 | -30-40 | 0.84 |
| R911406170 | extension cable | 3.0 | -30-40 | -30-40 | 0.68 |
| R911406169 | extension cable | 2.0 | -30-40 | -30-40 | 0.5 |

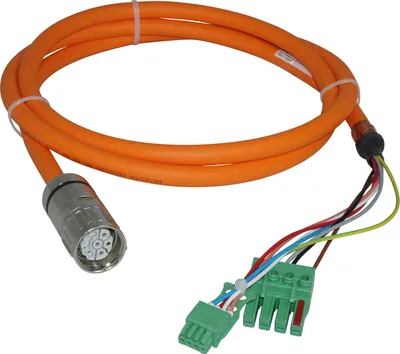

| R914504347 | direct connection | 23.0 | -30-80 | -30-80 | 0 |
| R914504321 | direct connection | 22.0 | -30-80 | -30-80 | 0 |
| R911412889 | direct connection | 7.5 | -30-80 | -30-80 | 0 |
| R911412888 | direct connection | 5.5 | -30-80 | -30-80 | 0 |
| R914504350 | direct connection | 23.0 | -30-40 | -30-40 | 0 |
Common to all listed parts
| Cable Variant | Power Cable |
| Cable Type | ready-made |
| Compatible Motors | ML3 |
| Compatible Drives | IndraDrive |
| Cable Model | Basic |
| Connection type of motor connector | M23 power connector |
| Dynamic bending radius | 7.5xD |
| Static bending radius | 5xD |
