PanelSeT S3X Parts

Schneider Electric

NSYS3X801230

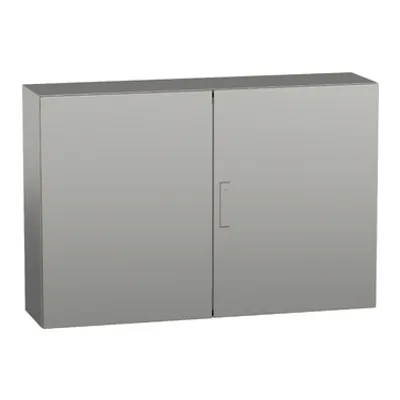

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 800x1200x300mm, IP55

Schneider Electric

NSYS3X801030

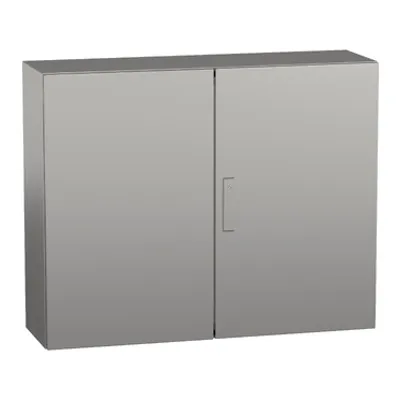

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 800x1000x300mm, IP55

Schneider Electric

NSYS3X601230

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 600x1200x300mm, IP55

Schneider Electric

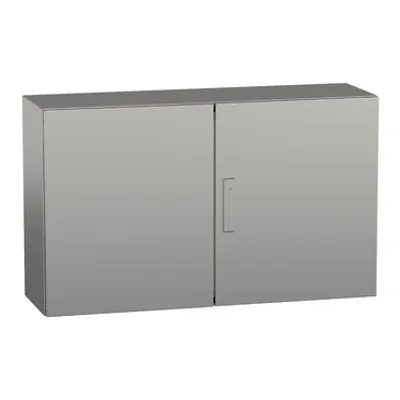

NSYS3X601030

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 600x1000x300mm, IP55

Schneider Electric

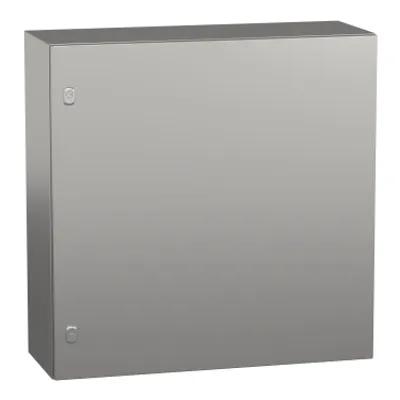

NSYS3X8830H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 800x800x300mm, IP66

Schneider Electric

NSYS3X8830

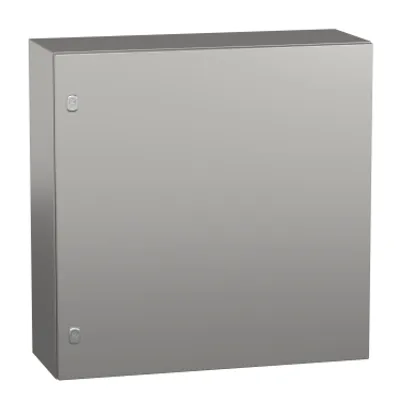

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 800x800x300mm, IP66

Schneider Electric

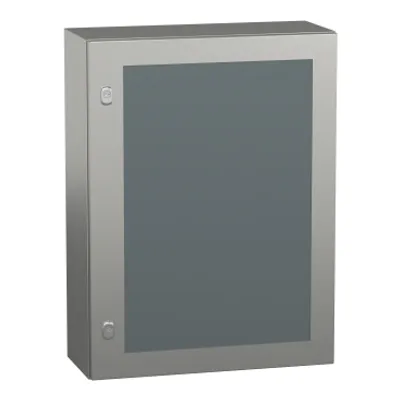

NSYS3X8625T

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 800x600x250mm, IP66

Schneider Electric

NSYS3X8625H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 800x600x250mm, IP66

Schneider Electric

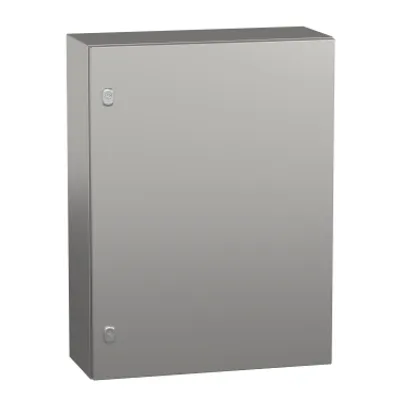

NSYS3X8625

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 800x600x250mm, IP66

Schneider Electric

NSYS3X7525T

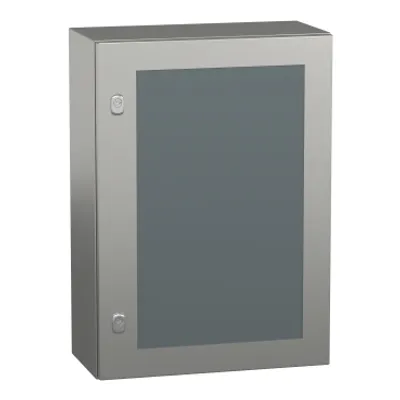

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 700x500x250mm, IP66

Schneider Electric

NSYS3X7525H

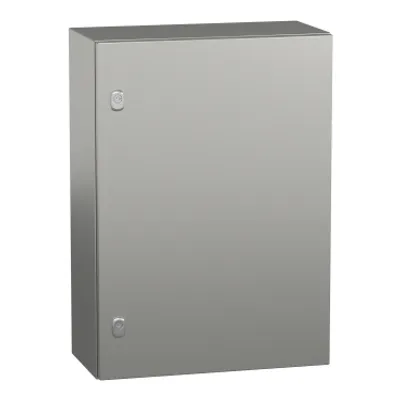

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 700x500x250mm, IP66

Schneider Electric

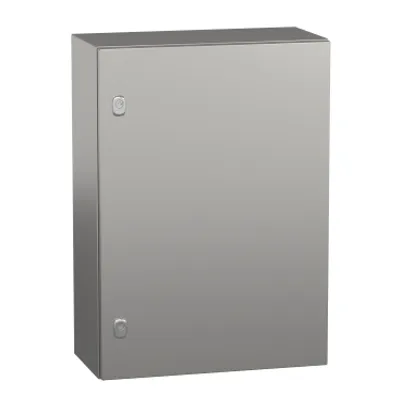

NSYS3X7525

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 700x500x250mm, IP66

Schneider Electric

NSYS3X6625H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 600x600x250mm, IP66

Schneider Electric

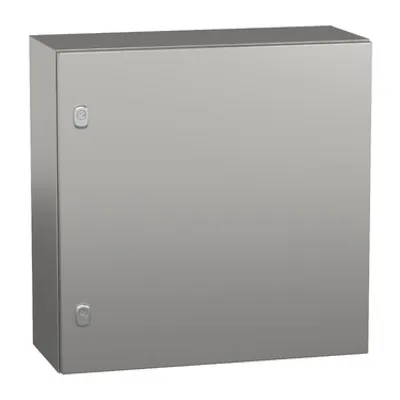

NSYS3X6625

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 600x600x250mm, IP66

Schneider Electric

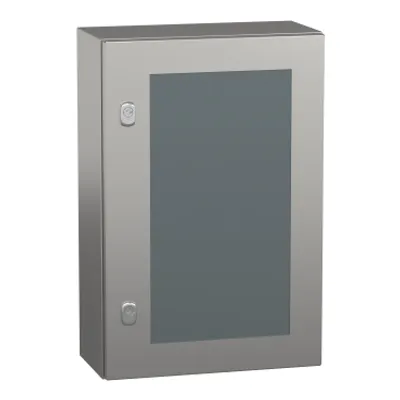

NSYS3X6420T

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 600x400x200mm, IP66

Schneider Electric

NSYS3X6420H

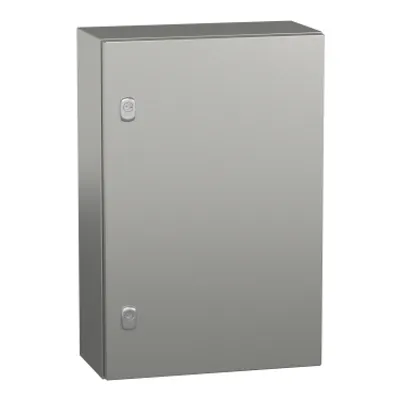

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 600x400x200mm, IP66

Schneider Electric

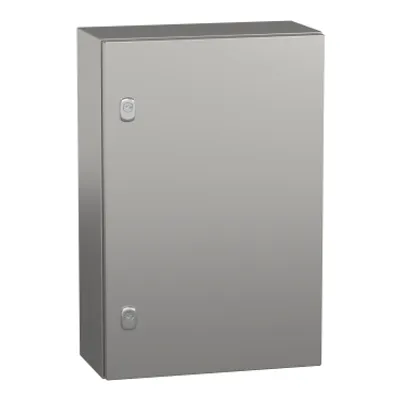

NSYS3X6420

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 600x400x200mm, IP66

Schneider Electric

NSYS3X5420T

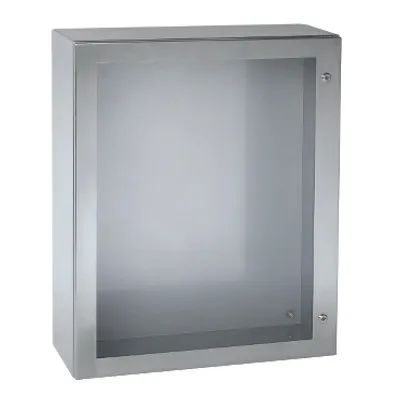

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 500x400x200mm, IP66

Schneider Electric

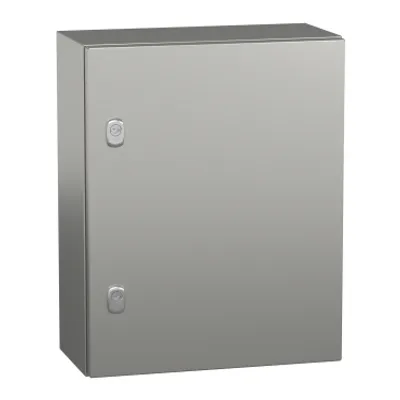

NSYS3X5420H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 500x400x200mm, IP66

Schneider Electric

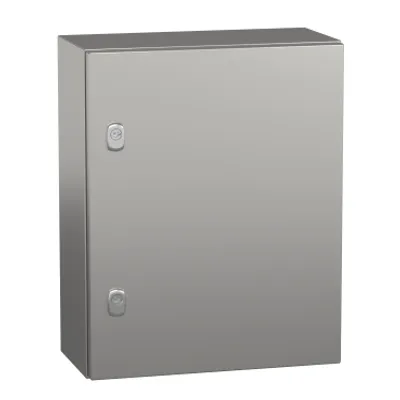

NSYS3X5420

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 500x400x200mm, IP66

Schneider Electric

NSYS3X4620H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 400x600x200mm, IP66

Schneider Electric

NSYS3X4620

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 400x600x200mm, IP66

Schneider Electric

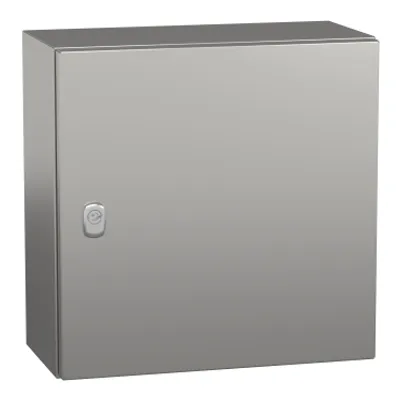

NSYS3X4420H

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 400x400x200mm, IP66

Schneider Electric

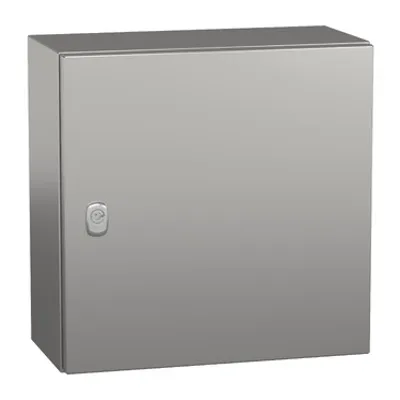

NSYS3X4420

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 400x400x200mm, IP66

Compare PanelSeT S3X

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	nominal height	nominal width	nominal depth	Lock type	Net weight
NSYS3X801230	800 mm	1200 mm	300 mm	3 points lock, 3 mm double-bar	43 kg
NSYS3X801030	800 mm	1000 mm	300 mm	3 points lock, 3 mm double-bar	38 kg
NSYS3X601230	600 mm	1200 mm	300 mm	3 points lock, 3 mm double-bar	38 kg
NSYS3X601030	600 mm	1000 mm	300 mm	3 points lock, 3 mm double-bar	32 kg
NSYS3X8830H	800 mm	800 mm	300 mm	2 points lock, 3 mm double-bar	32 kg
NSYS3X8830	800 mm	800 mm	300 mm	2 points lock, 3 mm double-bar	32 kg
NSYS3X8625T	800 mm	600 mm	250 mm	2 points lock, 3 mm double-bar	22.58 kg
NSYS3X8625H	800 mm	600 mm	250 mm	2 points lock, 3 mm double-bar	22.58 kg
NSYS3X8625	800 mm	600 mm	250 mm	2 points lock, 3 mm double-bar	22.474 kg
NSYS3X7525T	700 mm	500 mm	250 mm	2 points lock, 3 mm double-bar	16.596 kg
NSYS3X7525H	700 mm	500 mm	250 mm	2 points lock, 3 mm double-bar	17.44 kg
NSYS3X7525	700 mm	500 mm	250 mm	2 points lock, 3 mm double-bar	17.36 kg
NSYS3X6625H	600 mm	600 mm	250 mm	2 points lock, 3 mm double-bar	14 kg
NSYS3X6625	600 mm	600 mm	250 mm	2 points lock, 3 mm double-bar	13.902 kg
NSYS3X6420T	600 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	9.58 kg
NSYS3X6420H	600 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	9.52 kg
NSYS3X6420	600 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	9.446 kg
NSYS3X5420T	500 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	7.842 kg
NSYS3X5420H	500 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	8.106 kg
NSYS3X5420	500 mm	400 mm	200 mm	2 points lock, 3 mm double-bar	8.05 kg
NSYS3X4620H	400 mm	600 mm	200 mm	3 mm double-bar lock	9.246 kg
NSYS3X4620	400 mm	600 mm	200 mm	3 mm double-bar lock	9.124 kg
NSYS3X4420H	400 mm	400 mm	200 mm	3 mm double-bar lock	6.766 kg
NSYS3X4420	400 mm	400 mm	200 mm	3 mm double-bar lock	6.698 kg

Common to all listed parts

Range	Spacial
Product name	Spacial S3X
enclosure type	Multi-purpose
category	Compact enclosure
product installation	Wall-mounting
Body type	Single piece body, cross-shaped structure, Gutter shaped front rail
Door opening side	Reversible (120 °)
Mounting plate description	Without mounting plate
