XI3 Analog Inputs Parts
Compare XI3 Analog Inputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum power dissipation in the module [W] | Current requirement UL | Current requirement Up | Overload protection | Input signal |
|---|---|---|---|---|---|

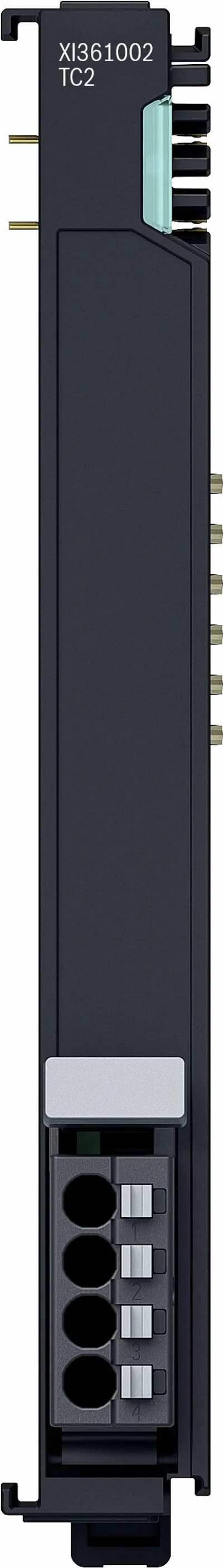

| R911406108 | 1.2 | 36 mA | 12 mA | 9.9 V | — |

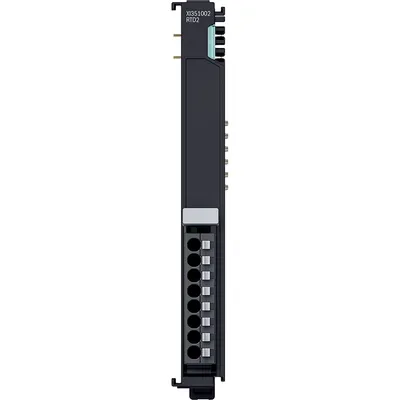

| R911406109 | 1.2 | 37 mA | 12 mA | 9.9 V | — |
| R911406107 | 1.8 | 40 mA | 21 mA | No, max. DC 10.5 V, Imax = 46 mA | 4-20 mA |

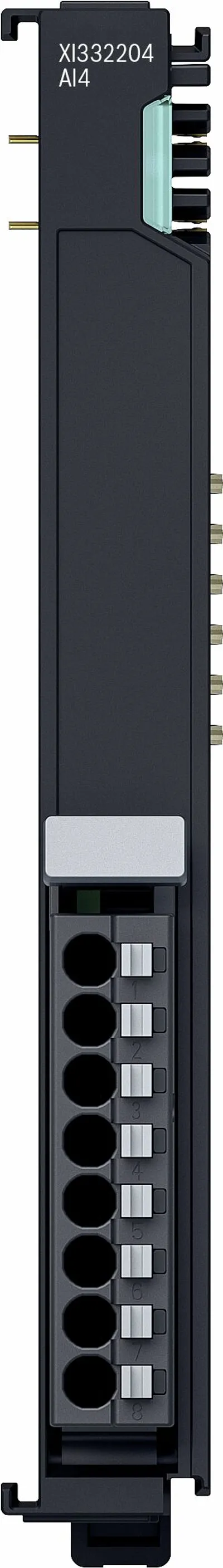

| R911406106 | 1.8 | 40 mA | 21 mA | No, max. DC 10.5 V, Imax = 46 mA | 0-20 mA |
| R911406104 | 1.5 | 40 mA | 20 mA | No, DC 30 V max. | -10-10 V |
| R911406105 | 1.5 | 40 mA | 20 mA | No, DC 30 V max. | 0-10 V |
Common to all listed parts
| Connection type | Push-in |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| Resolution A/D | 16 Bit |
