XB Bus Couplers Parts
Compare XB Bus Couplers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection type | Width [mm] | Depth [mm] | Maximum power dissipation in the module [W] | Weight [kg] |
|---|---|---|---|---|---|

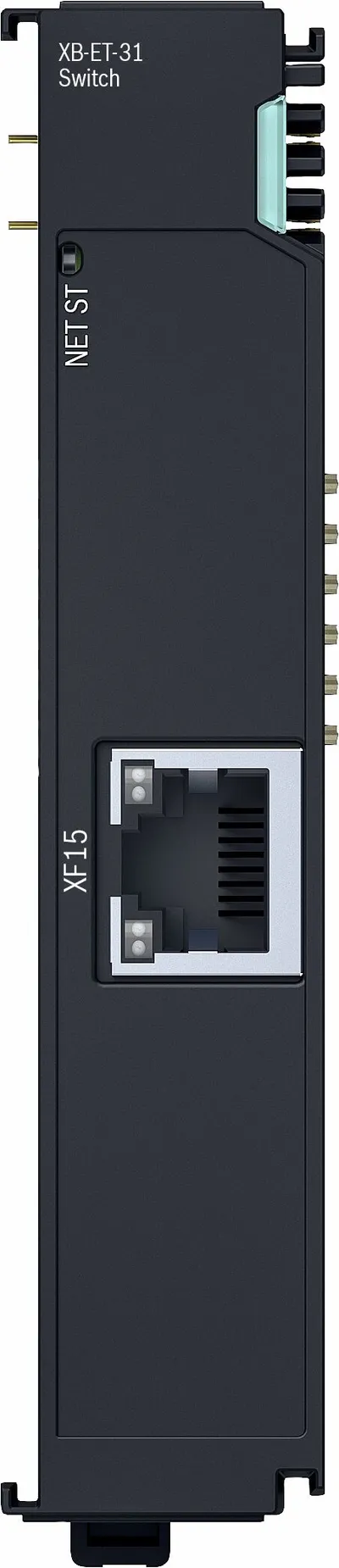

| R911419351 | Push-in | 20 | 85 | 2.64 | 0.12 |
| R911406092 | RJ45 | 20 | 85 | 0.83 | 0.13 |
| R911406090 | Push-in | 23.3 | 99 | 2.64 | 0.18 |
Common to all listed parts
| Height [mm] | 105 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Post-assembly position | Vertical, on a horizontal support rail |
| Overvoltage category | 2 |
| Permissible air humidity (storage) [%] | 10-95 |
