MBT Synchronous Torque Motors Parts
Compare MBT Synchronous Torque Motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum speed [rpm] | Rated power [kW] | Maximum current [A] | Rated current [A] | Weight [kg] |
|---|---|---|---|---|---|
| R911393783 | 175.0 | 43.5 | 339 | 104.7 | 131.6 |
| R911393784 | 175.0 | 43.5 | 339 | 104.7 | 263 |
| R911393781 | 180.0 | 36.9 | 284 | 83.8 | 104.9 |
| R911393782 | 180.0 | 36.9 | 284 | 83.8 | 229.5 |
| R911305930 | 110.0 | 46.2 | 308 | 133 | 206 |
| R911329477 | 110.0 | 46.2 | 308 | 133 | 280 |
| R911305060 | 110.0 | 39.6 | 279 | 120 | 205 |
| R911321371 | 110.0 | 39.6 | 279 | 120 | 280 |
| R911338259 | 55.0 | 19.8 | 120 | 57.8 | 205 |

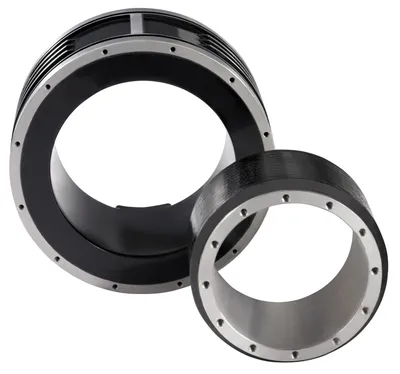

| R911317416 | 160.0 | 44.0 | 350 | 116.8 | 147 |
| R911318765 | 160.0 | 44.0 | 350 | 116.8 | 204 |
| R911315655 | 115.0 | 30.8 | 305 | 79.4 | 144 |
| R911312067 | 115.0 | 30.8 | 305 | 79.4 | 204 |
| R911376623 | 105.0 | 26.4 | 240 | 73.0 | 144 |
| R911305913 | 105.0 | 26.4 | 240 | 73.0 | 144 |
| R911383490 | 105.0 | 26.4 | 240 | 73.0 | 204 |
| R911393779 | 175.0 | 31.7 | 253 | 71.3 | 95 |
| R911393780 | 175.0 | 31.7 | 253 | 71.3 | 214.1 |
| R911296576 | 200.0 | 19.8 | 212 | 64 | 87 |
| R911297228 | 200.0 | 19.8 | 212 | 64 | 114 |
| R911317046 | 200.0 | 19.8 | 212 | 64 | 115 |
| R911393777 | 170.0 | 21.1 | 156.4 | 47.2 | 87 |
| R911393776 | 170.0 | 21.1 | 156.4 | 47.2 | 87 |
| R911393778 | 170.0 | 21.1 | 156.4 | 47.2 | 163 |
Common to all listed parts
| Cooling type | Water cooling |
| Outside cooling jacket diameter [mm] | 565 |
| International protection code | IP00 |
