PanelSet S3CM Parts
Schneider Electric

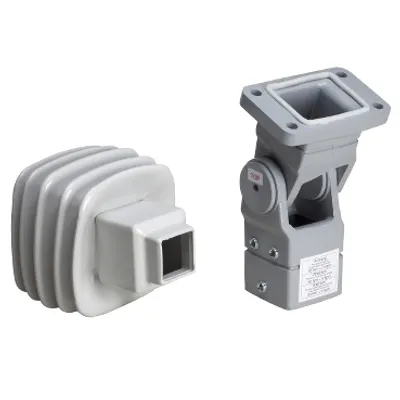

NSYCMUMA50Articulated fixing, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.
Schneider Electric

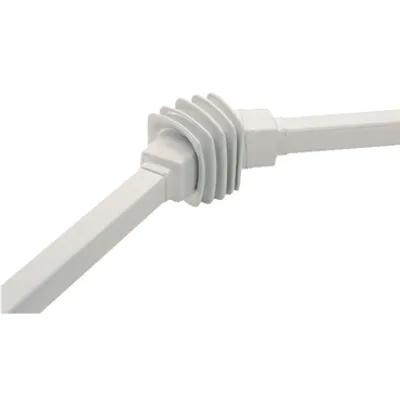

NSYCMUIA50Articulated tube joint, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.
Schneider Electric

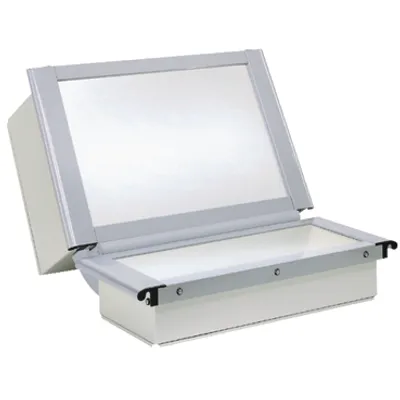

NSYCMT2560110Control keyboard enclosure for enclosures PanelSeT S3CM width W 600 mm.
Schneider Electric

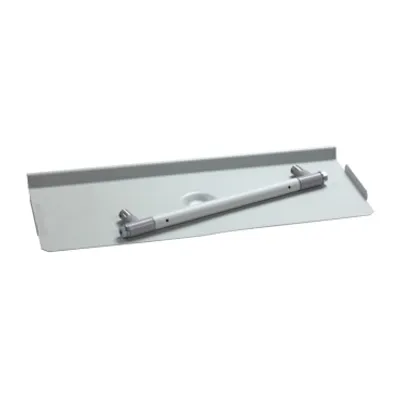

NSYCMBPTHorizontal keyboard shelf 500x195.7 mm. For PanelSeT S3CM HMI encl.RAL7035
Schneider Electric

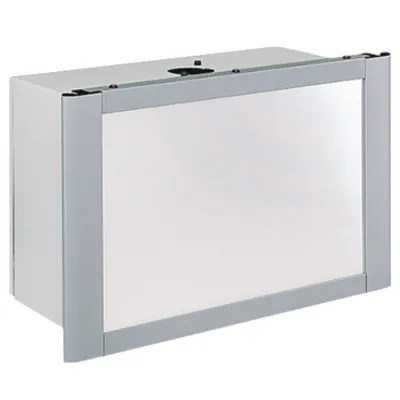

NSYS3CM606020HMI encl. PanelSeT S3CM. H600xW600xD200 IP54, IK10, RAL7035. Rear door.
Schneider Electric
NSYS3CM406025HMI encl. PanelSeT S3CM H400xW600xD250 IP54, IK10, RAL7035. Rear door.
Compare PanelSet S3CM
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Permanent permissible load | Height | Width | Net weight |
|---|---|---|---|---|---|
| NSYCMUMR50 | Fixing on support | 3.25 kg | 110 mm | 152 mm | 3.5 kg |
| NSYCMUMC50 | Fixing on support | 5.4 kg | 134 mm | 140 mm | 5.56 kg |
| NSYCMUMA50 | Fixing on support | 4.35 kg | 148 mm | 148 mm | 4.6 kg |
| NSYCMUTC50 | Tube adaptor | 1.35 kg | 144 mm | 155 mm | 1.43 kg |
| NSYCMUIA50 | Tube adaptor | 4.25 kg | 148 mm | 148 mm | 4.65 kg |
| NSYCMT5020 | Tube | 0 kg | 2000 mm | 50 mm | 14 kg |
| NSYCMT5015 | Tube | 0 kg | 1500 mm | 50 mm | 10.5 kg |
| NSYCMT5010 | Tube | 0 kg | 1000 mm | 50 mm | 7 kg |
| NSYCMT5005 | Tube | 0 kg | 500 mm | 50 mm | 3.5 kg |
| NSYCMUCR50 | Bent and rotating enclosure fixing | 1.25 kg | 115 mm | — | 1.3 kg |
| NSYCMUCC50 | Bent and rotating enclosure fixing | 2 kg | 147 mm | 154 mm | 2 kg |

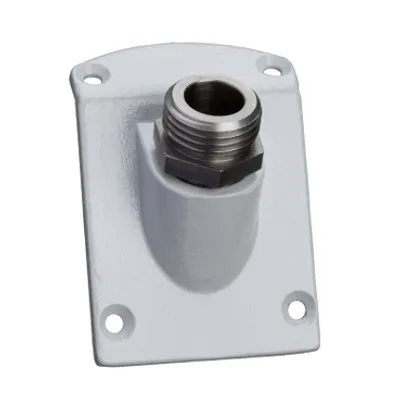

| NSYCMACS50 | Adaptor for signalling beacon | 0.025 kg | 0 mm | — | 0.11 kg |
| NSYCMT2560110 | Box keyboard | — | External: 250 mm, Real: 286 mm | External: 600 mm, Real: 697 mm | 8.578 kg |
| NSYCMBPT | Support | — | 21.5 mm | 500 mm | 2.307 kg |
| NSYS3CM606020 | — | — | — | — | 19.612 kg |

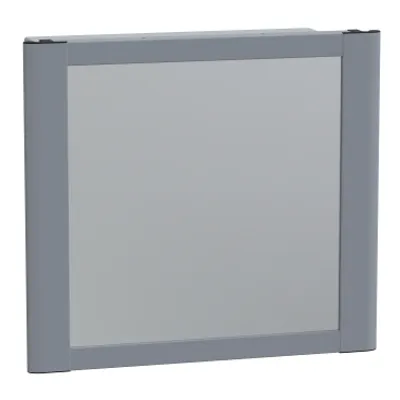

| NSYS3CM505025 | — | — | — | — | 16.53 kg |
| NSYS3CM406025 | — | — | — | — | 16.7 kg |
| NSYS3CM404020 | — | — | — | — | 10.394 kg |
| NSYS3CM304020 | — | — | — | — | 9.146 kg |
| NSYS3CM303020 | — | — | — | — | 7.444 kg |
Common to all listed parts
| Range | PanelSeT |
| Surface finish | Epoxy-polyester powder |
