SIRIUS 3RF2 solid-state relays and solid-state contactors Parts
Compare SIRIUS 3RF2 solid-state relays and solid-state contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — _4 of the accessories that can be ordered | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | Net Weight | operational current — according to UL 508 rated value |
|---|---|---|---|---|---|

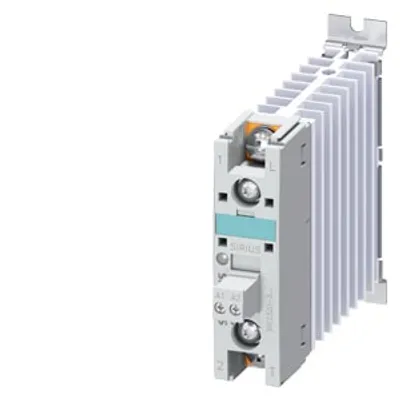

| 3RF2320-3AA04 | 3RF2920-0GA16 | 20 W | 20 W | 0.172 kg | 17.6 A |
| 3RF2320-3AA02 | 3RF2920-0GA13 | 20 W | 20 W | 0.172 kg | 17.6 A |
| 3RF2120-2AA22 | — | 28.6 W | 28.6 W | 0.058 kg | 20 A |

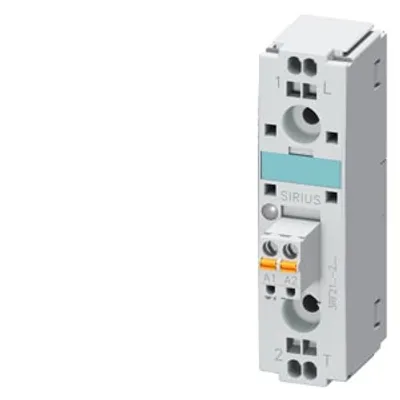

| 3RF2120-2AA04 | — | 28.6 W | 28.6 W | 0.054 kg | 20 A |
| 3RF2120-2AA02 | — | 28.6 W | 28.6 W | 0.057 kg | 20 A |
| 3RF2120-1BA04 | 3RF2920-0GA16 | 28.6 W | 28.6 W | 0.059 kg | 20 A |

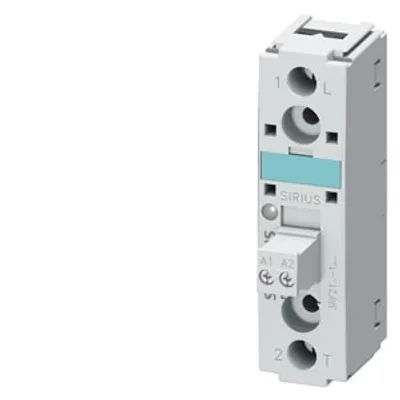

| 3RF2120-1AA45 | 3RF2920-0GA16 | 28.6 W | 28.6 W | 0.058 kg | 20 A |
| 3RF2190-1AA24 | 3RF2990-0GA36 | 118 W | 118 W | 0.061 kg | 50 A |
| 3RF2190-1AA22 | 3RF2990-0GA33 | 118 W | 118 W | 0.058 kg | 50 A |
| 3RF2190-1AA06 | 3RF2990-0GA16 | 118 W | 118 W | 0.058 kg | 50 A |
| 3RF2190-1AA04 | 3RF2990-0GA16 | 118 W | 118 W | 0.058 kg | 50 A |
| 3RF2190-1AA02 | 3RF2990-0GA13 | 118 W | 118 W | 0.06 kg | 50 A |
| 3RF2170-1CA04 | 3RF2990-0GA16 | 94 W | 94 W | 0.061 kg | 50 A |

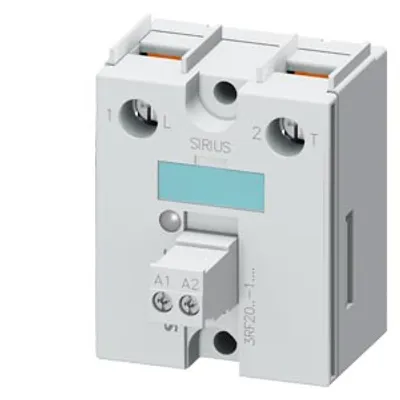

| 3RF2050-1AA04 | — | 66 W | 66 W | 0.069 kg | 50 A |
| 3RF2050-1AA02 | — | 66 W | 66 W | 0.064 kg | 50 A |
| 3RF2020-1AA24 | — | 28.6 W | 28.6 W | 0.07 kg | 20 A |
| 3RF2370-3AA24 | 3RF2990-0GA36 | 83 W | 83 W | 0.599 kg | 62 A |
| 3RF2370-3AA22 | 3RF2990-0GA33 | 83 W | 83 W | 0.587 kg | 62 A |

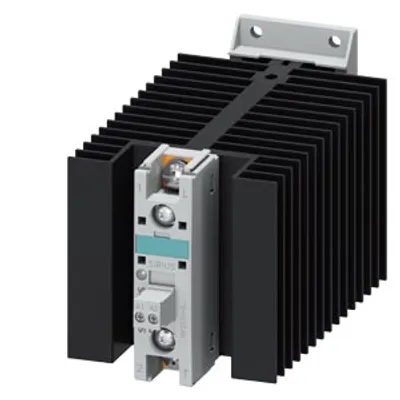

| 3RF2370-3AA06 | 3RF2990-0GA16 | 83 W | 83 W | 0.584 kg | 62 A |

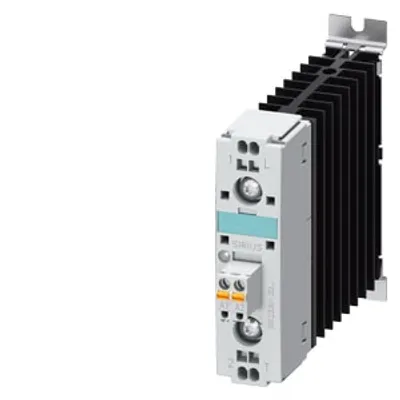

| 3RF2330-2DA64 | — | 33 W | 33 W | 0.17 kg | — |

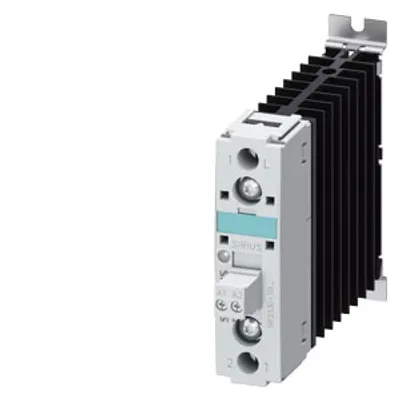

| 3RF2330-1DA44 | 3RF2950-0GA16 | 33 W | 33 W | 0.172 kg | 26 A |
| 3RF2330-1DA06 | 3RF2950-0GA16 | 33 W | 33 W | 0.175 kg | 26 A |
| 3RF2330-1DA04-0KN0 | 3RF2950-0GA16 | 33 W | 33 W | 0.177 kg | 26 A |

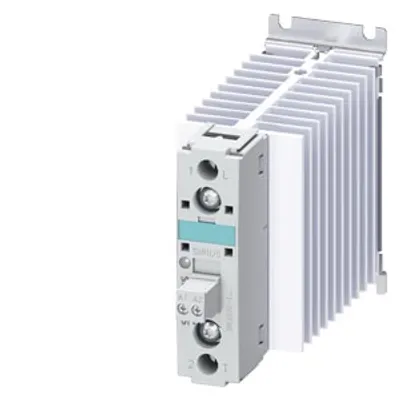

| 3RF2330-1CA02 | 3RF2950-0GA13 | 33 W | 33 W | 0.27 kg | 27 A |
Common to all listed parts
| design of the product | 1-pole |
| insulation voltage rated value | 600 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
