Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Orbitron motors

Orbitron motors Parts

Danfoss

151Z3103

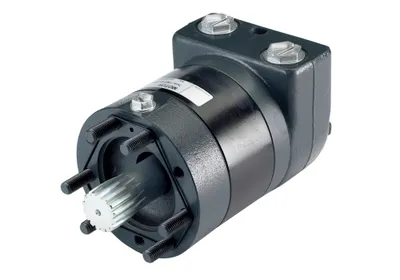

TMTU 470 HYDRAULIC MOTOR

Danfoss

151Z3090

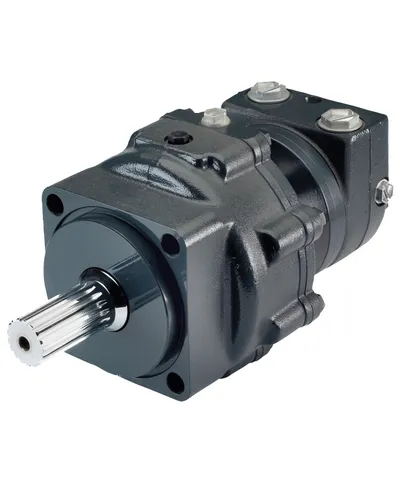

TMT 250 FL HYDRAULIC MOTOR, TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151Z3073

TMT 470 HYDRAULIC MOTOR

Danfoss

151Z3060

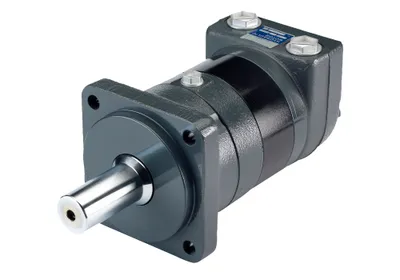

TMT 250 HYDRAULIC MOTOR

Danfoss

151Z3023

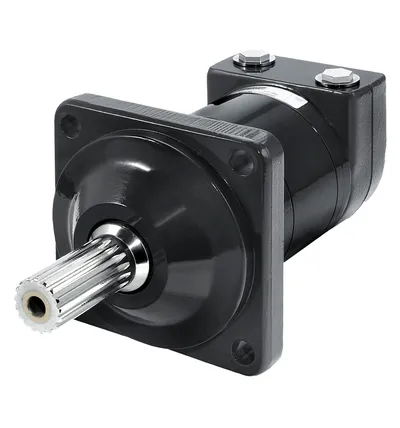

MOTOR-ORBITAL,TMT SERIES 470 [28.7], TMT-0470-A-NN-G32-AV-1D-D21-A-B-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151Z3018

TMT 400 HYDRAULIC MOTOR, TMT-0400-A-NN-G18-AV-1D-A31-A-B-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151Z3015

TMT 630 HYDRAULIC MOTOR

Danfoss

151F6130

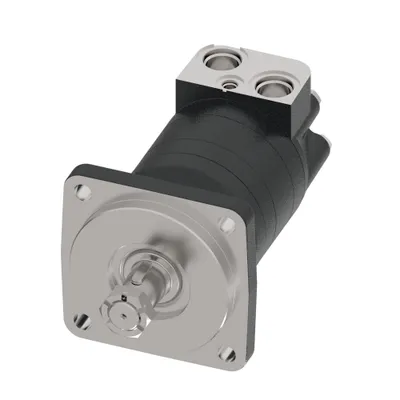

MOTOR-ORBITAL,TMK SERIES 160 [9.7], TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN

Danfoss

151B4033

OMT 500 FH HYDRAULIC MOTOR, OMT-0500-E-BB-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B4016

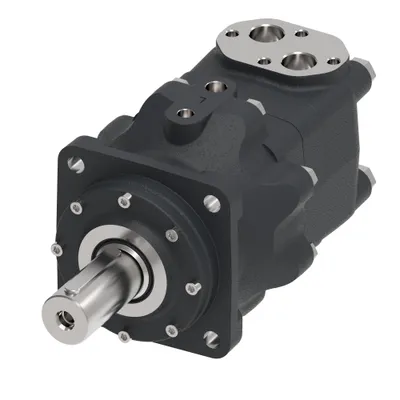

OMT 250 FL HYDRAULIC MOTOR, OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B4012

OMT 500 FL HYDRAULIC MOTOR, OMT-0500-E-BA-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B4007

OMT 160 FL HYDRAULIC MOTOR, OMT-0160-E-BA-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B4003

MOTOR-ORBITAL,OMT SERIES 315 [19.2], OMT-0315-E-BA-G22-AD-1D-A31-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B3299

MOTOR-ORBITAL,OMV SERIES 800 [48.8], OMV-0800-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

Danfoss

151B3298

MOTOR-ORBITAL,OMV SERIES 630 [38.4], OMV-0630-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

Danfoss

151B3295

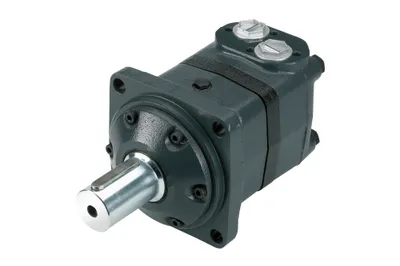

MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

Danfoss

151B3292

MOTOR-ORBITAL,OMV SERIES 500 [30.5]

Danfoss

151B3257

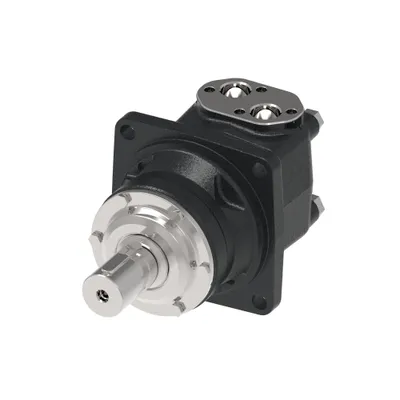

MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-B-NN-W53-AE-1E-D20-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B3205

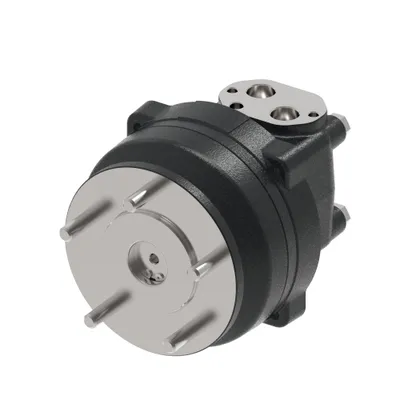

MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B3199

OMVW 400 HD HYDRAULIC MOTOR

Danfoss

151B3195

OMVW 500 HYDRAULIC MOTOR

Danfoss

151B3187

MOTOR-ORBITAL,OMV SERIES 630 [38.4], OMV-0630-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B3186

MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Danfoss

151B3128

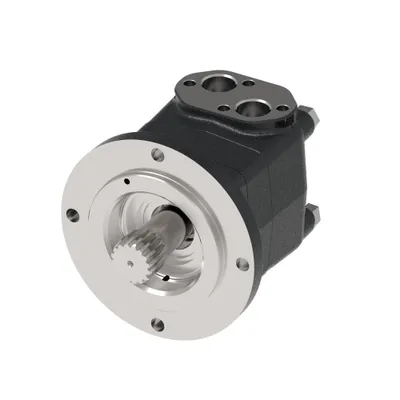

MOTOR-ORBITAL,OMV SERIES 630 [38.4], OMV-0630-C-NN-S16-AE-1E-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Compare Orbitron motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port dimension	Seal Kit
151Z3103	470	477.3 [29.13]	6 Bolt - Short	1 1/16 - 12 UN-2B SAE O-Ring port, -	151B0176
151Z3090	250	251.8 [15.37]	4 Bolt - C	1 1/16 - 12 UN-2B SAE O-Ring port, -	151Z2059
151Z3073	470	477.3 [29.13]	4 Bolt - C	1 1/16 - 12 UN-2B SAE O-Ring port, -	151B0176
151Z3023	470	477.3 [29.13]	4 Bolt - Square	G 3/4	151B0176
151Z3018	400	410.9 [25.07]	4 Bolt - Square	G 3/4	151B0176
151Z3015	630	629.1 [38.39]	4 Bolt - Square	G 3/4	151B0176
151F6130	160	158.0 [9.64]	4 Bolt - C	1 1/16 - 12 UN-2B SAE O-Ring port,	151F0141
151B4033	500	523.6 [31.95]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	151B0154
151B4016	250	251.8 [15.36]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	151B0153
151B4012	500	523.6 [31.95]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	151B0153
151B4007	160	161.1 [9.83]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	151B0153
151B4003	315	326.3 [19.91]	4 Bolt - Square	G 3/4, 4 x M10 block mounting threads	151B0153
151B3299	800	801.8 [48.93]	4 Bolt - Square	G 1, 4 x M12 block mounting threads	151B0162
151B3298	630	629.1 [38.39]	4 Bolt - Square	G 1, 4 x M12 block mounting threads	151B0162
151B3295	315	314.5 [19.19]	4 Bolt - Square	G 1, 4 x M12 block mounting threads	151B0162
151B3257	500	499.6 [30.49]	4 Bolt - Wheel	G 1, 4 x M12 block mounting threads	151B0129
151B3205	500	523.6 [31.95]	4 Bolt - Wheel	G 3/4, 2 x M10 block mounting threads	151B0152
151B3187	630	629.1 [38.39]	4 Bolt - Square	G 1, 4 x M12 block mounting threads	151B0162
151B3186	500	499.6 [30.49]	4 Bolt - Square	G 1, 4 x M12 block mounting threads	151B0162
151B3128	630	629.1 [38.39]	4 Bolt - Short	G 1, 4 x M12 block mounting threads	151B0125

Common to all listed parts

Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Main port style	Sideport - staggered
Special Features Assembly	Standard
Orbital gearwheel set	Standard
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
