Char-Lynn motors Parts

Danfoss

193-0412-001

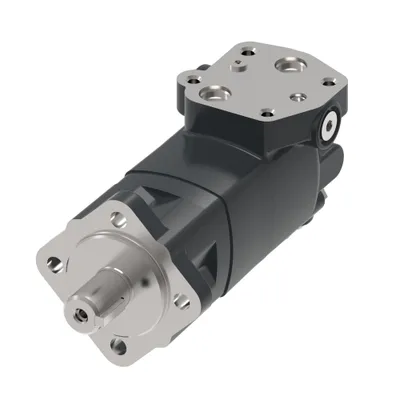

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AH05AD0200010000000AAAAA

Danfoss

193-0208-001

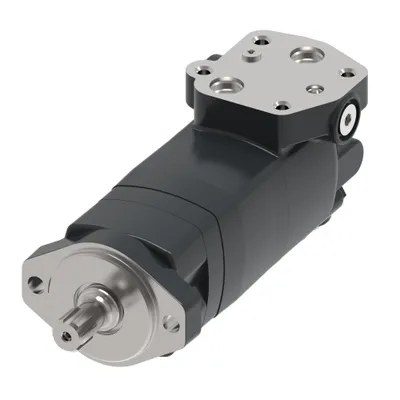

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AC19AD0200010000000AAAAA

Danfoss

184-0423-002

MOTOR-ORBITAL,DELTA SERIES 235 [14.3], MDL143AA02AA000000000AP00B

Danfoss

184-0239-002

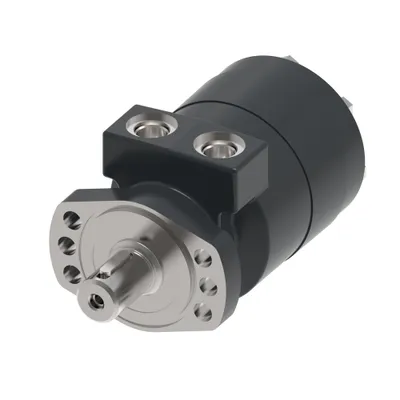

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AB07AA0C0000000AB00B

Danfoss

169-0188-001

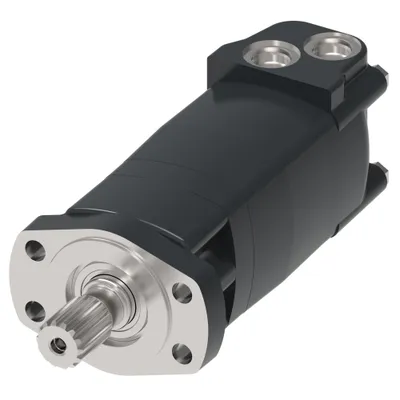

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AJ06AA010000000000A

Danfoss

158-3122-001

MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030AA02AF0200000000000AA00A

Danfoss

158-1538-001

MOTOR-ORBITAL,T SERIES 130 [8.0], MT0080AA01AA0000000000000AA00A

Danfoss

158-1039-001

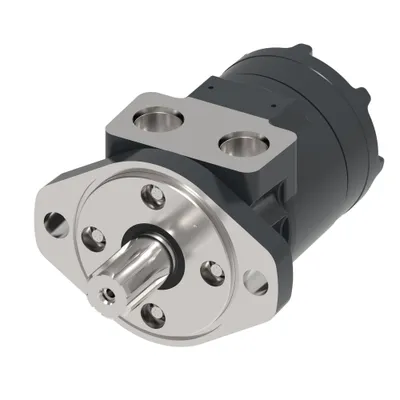

MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187AA01AA0000000000000AA00A

Danfoss

158-1023-001

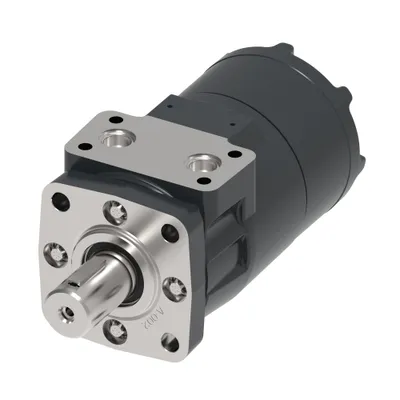

MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187BA01AC0000000000000AA00A

Danfoss

129-0527-002

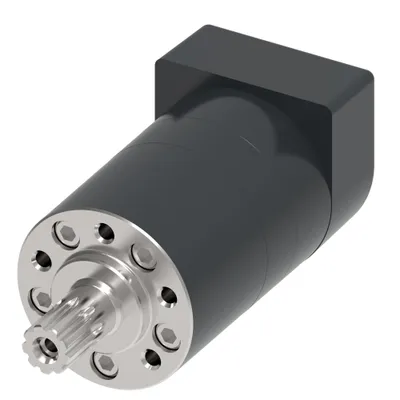

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02H2070A0B

Danfoss

109-1723-006

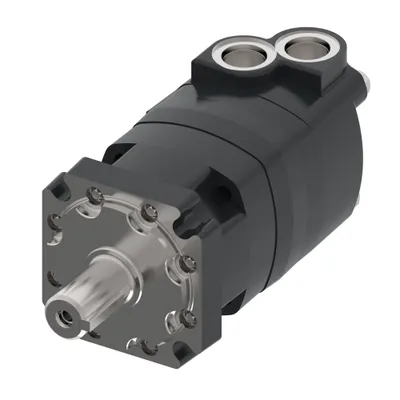

4K MOTOR/HP, M04080AB01AB020000A0000000000F

Danfoss

105-1096-006

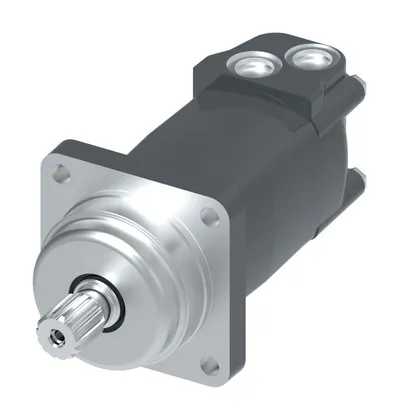

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AB04AA0100010000000AAAAF

Danfoss

104-5001-006

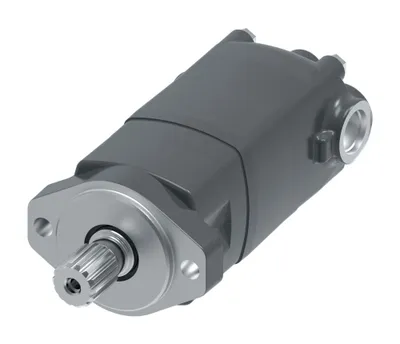

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AC04AF0100010000000ABAAF

Danfoss

104-4584-006

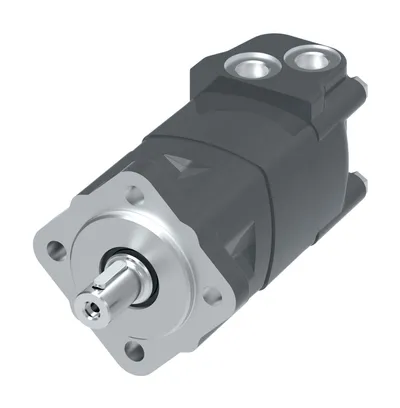

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH19AG0000011000000AAAAF

Danfoss

104-4372-006

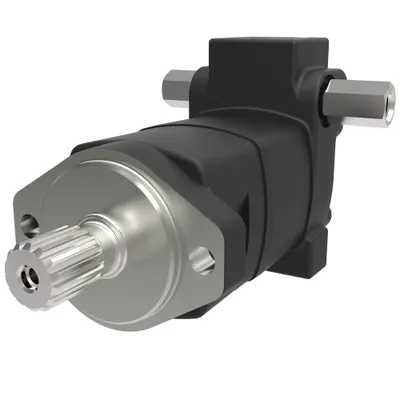

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AA0103610000000ABAAF

Danfoss

104-3069-006

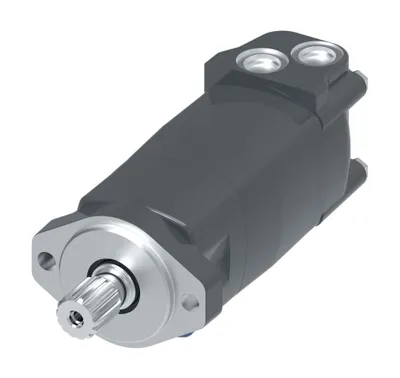

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AA0100011000000AAAAF

Danfoss

104-3022-006

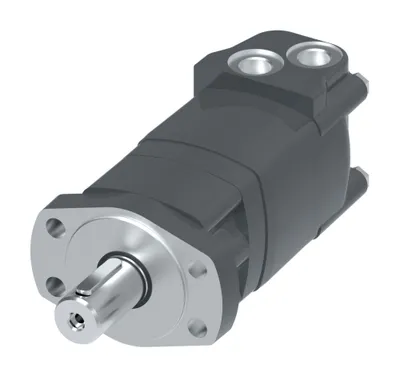

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AJ16AG0200010000000ABAAF

Danfoss

104-1991-006

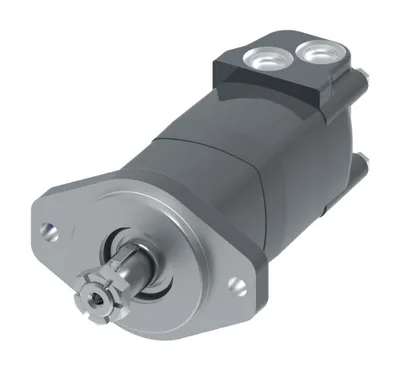

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF03AA01000100000AAAAAAF

Danfoss

103-3442-012

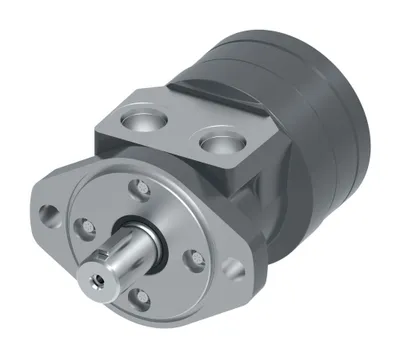

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AA0000000000000AY00M

Danfoss

103-3413-012

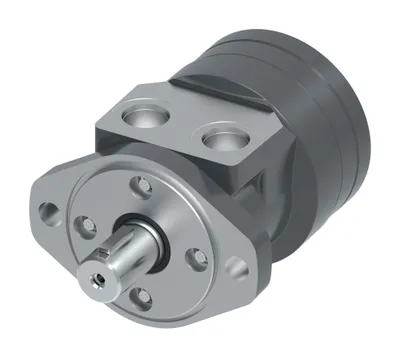

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AA0000000000000AY00M

Danfoss

103-3389-012

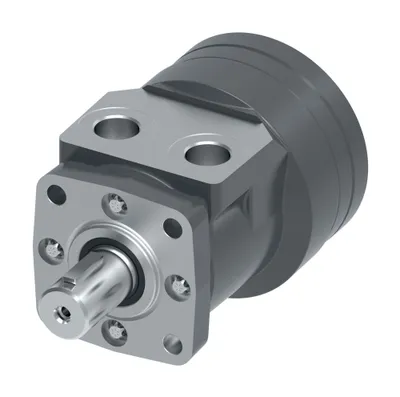

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB0000030000000AY00M

Danfoss

103-3283-012

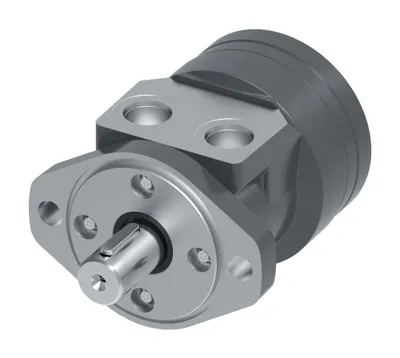

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA24AA0000000000000AA00M

Danfoss

103-3278-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA16AF0200070000000AA00M

Danfoss

103-3265-012

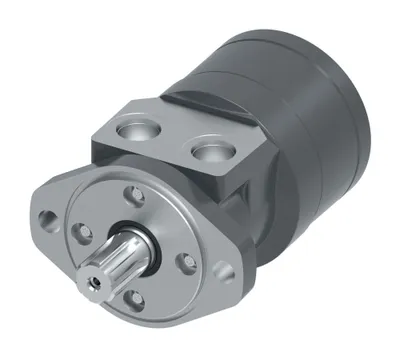

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA02AA0100070000000AA00M

Compare Char-Lynn motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Seal Kit
193-0412-001	M22080AH05AD0200010000000AAAAA	130	130.6 [7.97]	n/a	No data available
193-0208-001	M22119AC19AD0200010000000AAAAA	195	194.8 [11.89]	Rectangular key, 8 x 7 x 32 mm	No data available
184-0423-002	MDL143AA02AA000000000AP00B	235	234 [14.3]	Square key, 5/16 x 1 inch	9900436-000
184-0239-002	MDL241AB07AA0C0000000AB00B	395	395 [24.1]	Rectangular key, 8 x 7 x 32 mm	9900436-000
169-0188-001	ADK15AJ06AA010000000000A	255	252.8 [15.43]	n/a	No data available
158-3122-001	MT0030AA02AF0200000000000AA00A	50	49 [3.0]	n/a	9900862-000
158-1538-001	MT0080AA01AA0000000000000AA00A	130	131 [8.0]	Woodruff key	9900808-000
158-1039-001	MT0187AA01AA0000000000000AA00A	305	306 [18.9]	Woodruff key	9900808-000
158-1023-001	MT0187BA01AC0000000000000AA00A	305	306 [18.9]	Woodruff key	9900804-000
129-0527-002	M0J19B02H2070A0B	30	31.6 [1.93]	Square key	—
109-1723-006	M04080AB01AB020000A0000000000F	130	130.3 [7.95]	Square key, 5/16 x 1 5/8 inch	9901015-000
105-1096-006	M02240AB04AA0100010000000AAAAF	395	393.8 [24.03]	n/a	61258-000
104-5001-006	M02055AC04AF0100010000000ABAAF	90	90.6 [5.53]	n/a	61258-000
104-4584-006	M02119AH19AG0000011000000AAAAF	195	194.8 [11.89]	Rectangular key, 8 x 7 x 32 mm	No data available
104-4372-006	M02187AC04AA0103610000000ABAAF	305	306.6 [18.71]	n/a	9900404-000
104-3069-006	M02240AC04AA0100011000000AAAAF	395	393.8 [24.03]	n/a	61263-000
104-3022-006	M02149AJ16AG0200010000000ABAAF	245	244.3 [14.91]	Rectangular key, 10 x 8 x 45 mm	9900684-000
104-1991-006	M02187AF03AA01000100000AAAAAAF	305	306.6 [18.71]	Square key, 5/16 x 1 inch	61258-000
103-3442-012	MS0101AA01AA0000000000000AY00M	165	165 [10.1]	Woodruff key	—
103-3413-012	MS0073AA01AA0000000000000AY00M	120	120 [7.3]	Woodruff key	—
103-3389-012	MS0057BA01AB0000030000000AY00M	95	93 [5.7 ]	Woodruff key	—
103-3283-012	MS0046AA24AA0000000000000AA00M	75	76 [4.6 ]	Rectangular key	No data available
103-3278-012	MS0046AA16AF0200070000000AA00M	75	76 [4.6 ]	n/a	No data available
103-3265-012	MS0182AA02AA0100070000000AA00M	300	299 [18.2]	n/a	No data available

Common to all listed parts

Orbital gearwheel set type	Geroler
Brake Release Port Dimension	n/a
Dust seal	Standard
Sensor	None
Name Tag	Danfoss name tag
